Installation Instructions AVSFSS
7
Attach to Wall
Sheetrock Installations
IMPORTANT ! : The AVSFSS mounting system needs to
be attached to a sheetrock drywall which is supported by
16" or 24" wood or steel studs, however it does NOT
need to be attached to these studs directly.
Drywall Installation (Not attached to Studs)

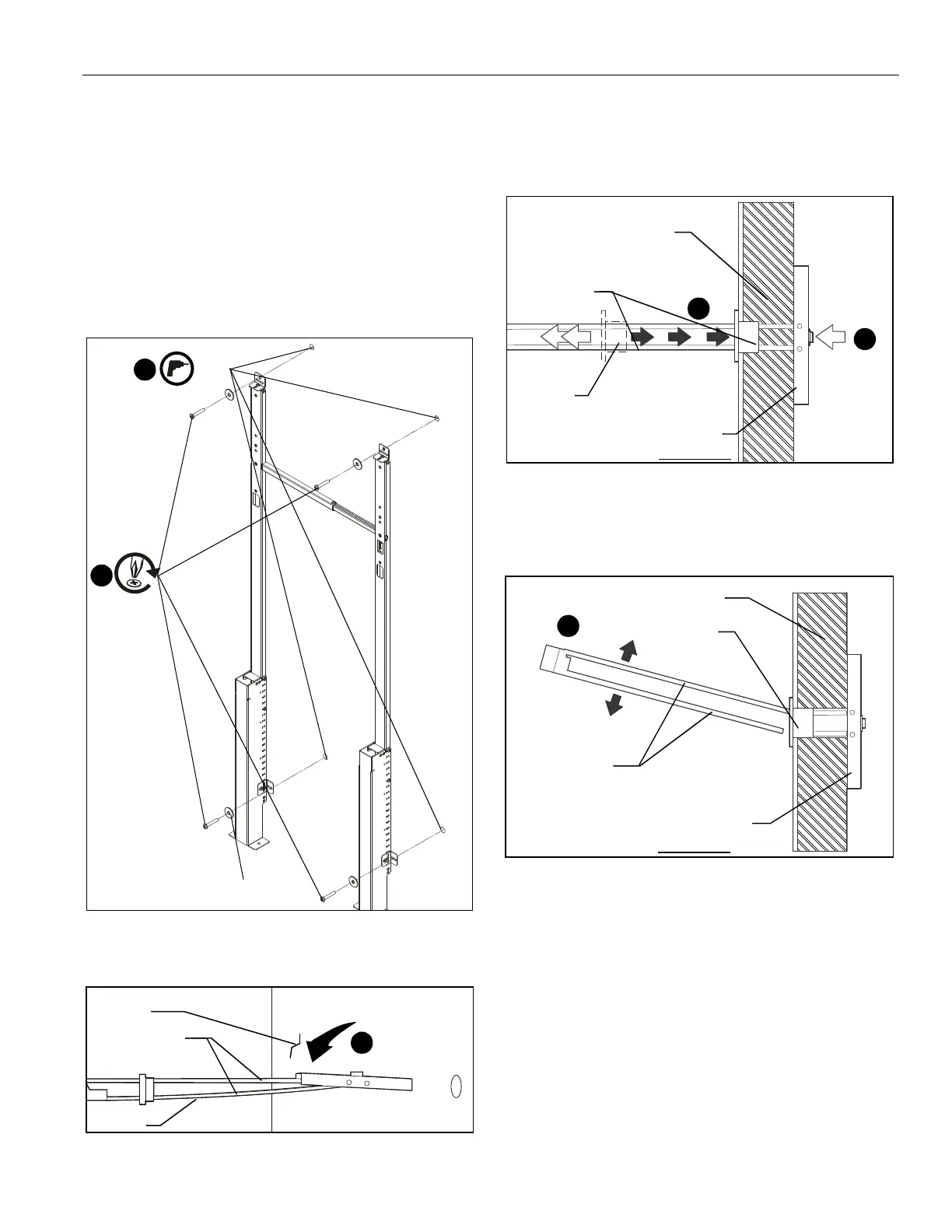

1. Mark hole locations at each mounting location based on
locations of wall brackets (F). Use a level to ensure of an
even mount. (See Figure 6)
2. Drill 1/2" holes on marked hole locations. (See Figure 6)
Figure 6
3. Hold metal channel on anchor (P) flat alongside plastic
straps and slide channel through hole. (See Figure 7)
Figure 7
4. Holding plastic straps on anchor (P), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on drywall. (See
Figure 8)
5. Slide plastic cap on anchor (P) towards wall until flange of
cap is flush with wall. (See Figure 8)
Figure 8
6. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 9)
Figure 9
7. Repeat Steps 3 through 6 for the other mounting holes.
8. Use four 1/4-20 x 1 3/4" Phillips pan machine screws (L)
and four 1/4" washers (N) to secure wall brackets (F) to wall.
(See Figure 6)
1/2"
2
(L) x 4
8
(N) x 4
(P)
Drywall
Plastic Straps
3
(L)
Plastic Cap
Drywall
Anchor Metal Channel
SIDE VIEW
4
5
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
6
To Next Page
