AVSFSS Installation Instructions
8
Drywall (Into Steel Studs)
1. Mark hole locations at each mounting location based on
locations of wall brackets (F) and steel studs. Use a level to
ensure of an even mount. (See Figure 10)
2. Drill 1/2" holes on marked hole locations. (See Figure 10)

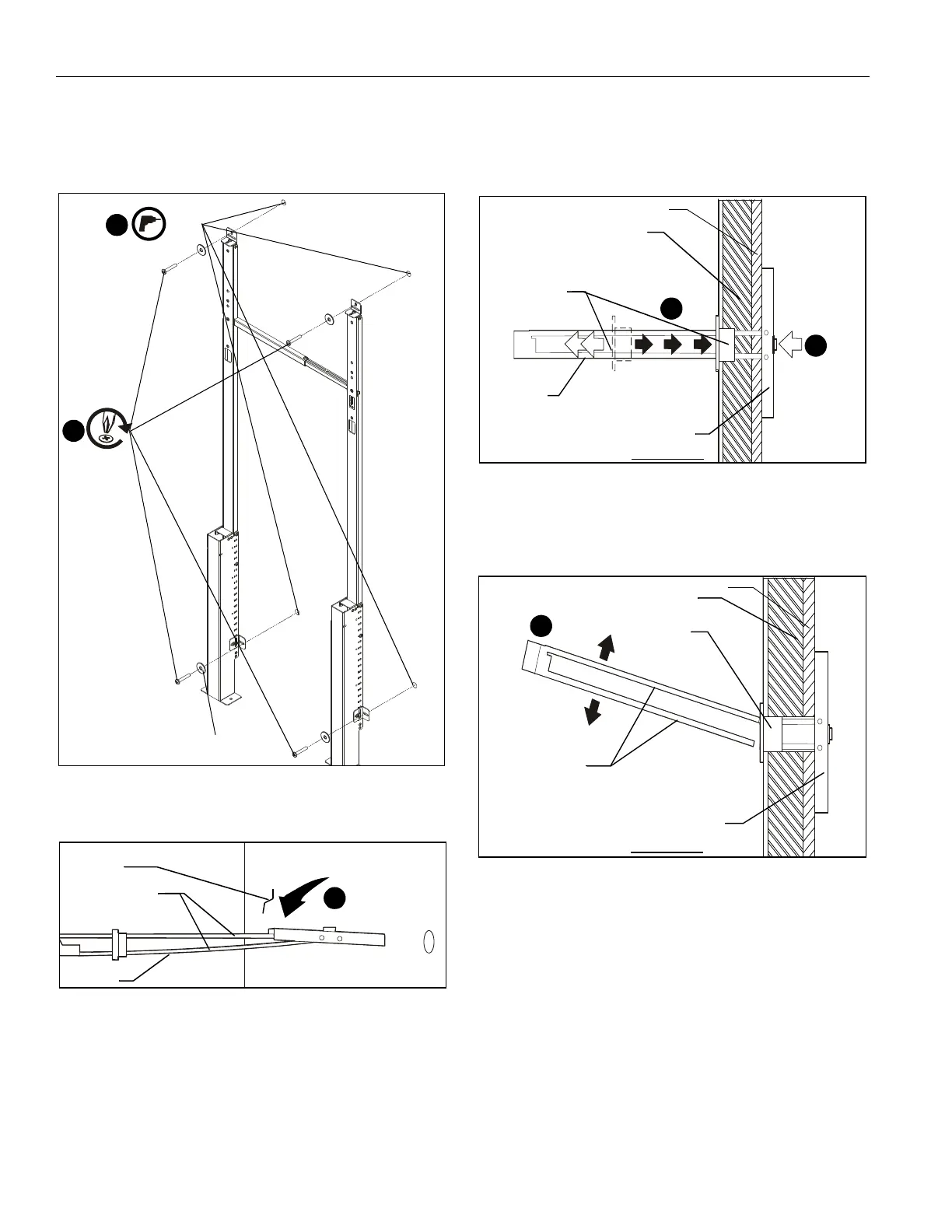

Figure 10
3. Hold metal channel on anchor (P) flat alongside plastic
straps and slide channel through hole. (See Figure 11)
Figure 11
4. Holding plastic straps on anchor (P), pull anchor away from
wall until channel rests flush behind wall making sure
anchor channel is positioned vertically on stud. (See Figure
12)
5. Slide plastic cap on anchor (P) towards wall until flange of
cap is flush with wall. (See Figure 12)
Figure 12
6. Snap off plastic straps on anchor at wall by pushing side to
side, snapping off straps level with flange of plastic cap.
(See Figure 13)
Figure 13
7. Repeat Steps 3 through 6 for the other mounting holes.
8. Use four 1/4-20 x 1 3/4" Phillips pan machine screws (L)
and four 1/4" washers (N) to secure wall brackets (F) to wall.
(See Figure 10)
1/2"
2
(L) x 4
8
(N) x 4
(P)
Drywall
Plastic Straps
3
(L)
Plastic Cap
Drywall
Anchor Metal Channel
SIDE VIEW
4
Steel Stud
5
Plastic Straps
Drywall
Anchor Metal Channel
Plastic Cap
SIDE VIEW
6
Steel Stud
