Chigo CS-25C3A-V85AY1 - Exploded View and Parts List; Refrigerant Cycle Diagram

8

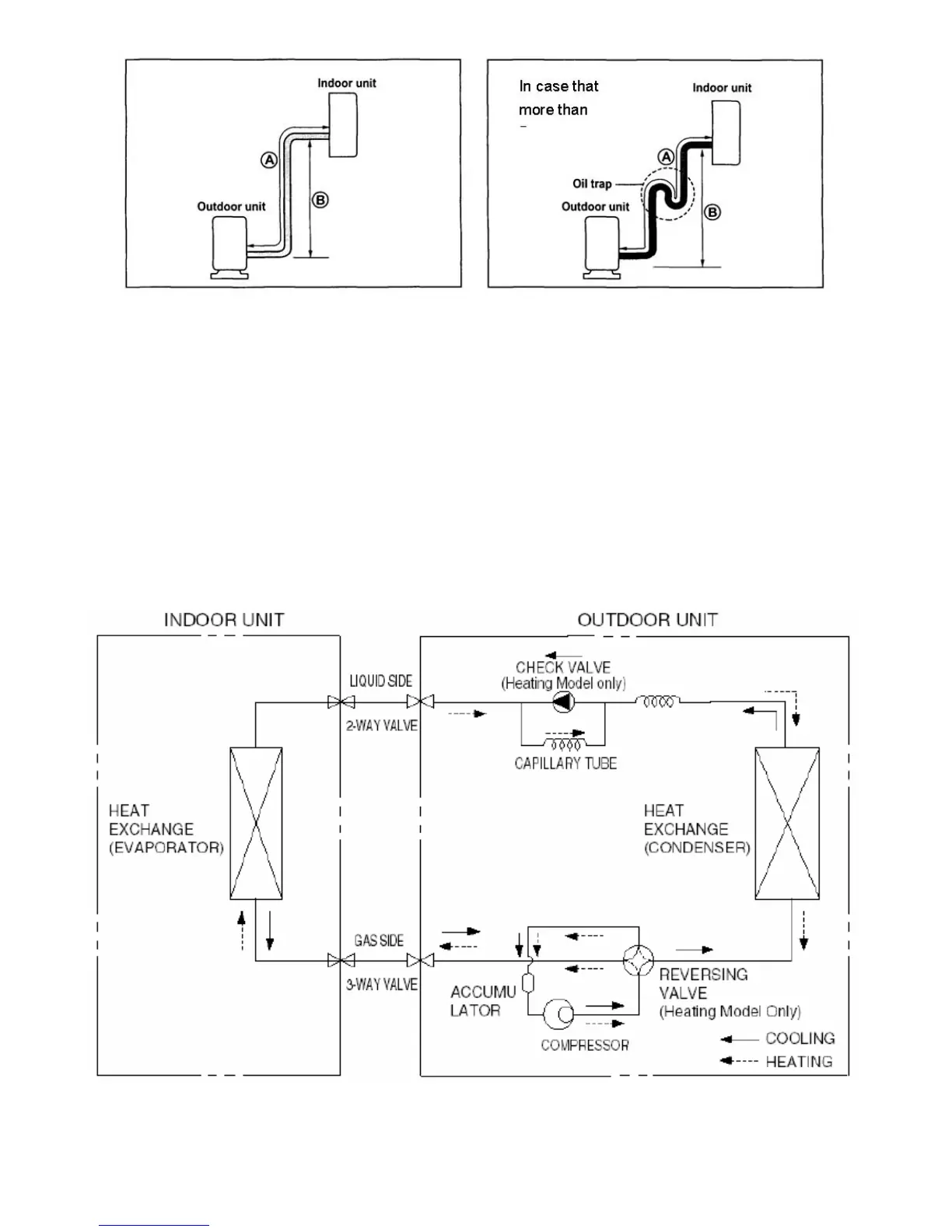

Caution:Capacity is base on standard length and maximum allowance length is base of reliability.Oil
trap should be install per 5-7 meters.
4、Indoor unit and outdoor unit explosion diagram and spare parts list(see explosion diagram file)
5. Refrigerant cycle diagram （working principle）
