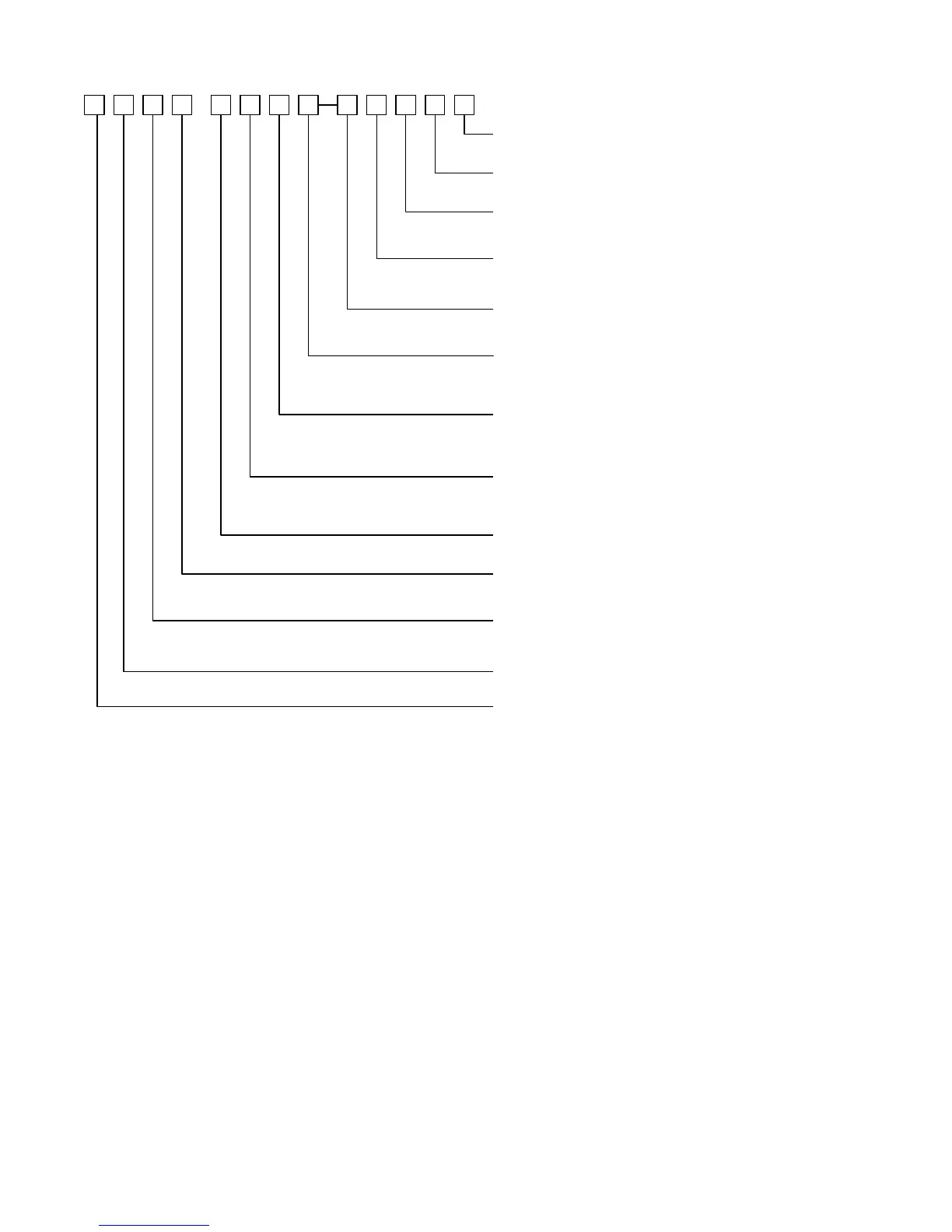

2、Model explaining
c
Improve an ordinal number
Divide the body outdoors box a body code
External appearance characteristic code
Separately the body indoor machine(or whole type) style code
Code of refrigerant type：no code - R22；C-R407c、A-R410a
Power type：1:115v/60Hz 2:220V/60Hz；3:220-240V/
50Hz；4:240V/50Hz；
Main function code: c-Cold breeze type;H-Hot pump type;A-Hot
pump the type take assistance electricity to heat;E-The electricity
heat
Capacity code: x1000W
Separately the body pit code inside the indoor machine(or whole
type)
Structure form code
Special craft code:Q-Deal with contact quickly;S-Soft start;d-
Outside tube in addition to frost
The weather type code(T1 type code abridge)
"C" CHIGO brand
Such as:
CS-25C3A-V85AY1
T1 climate type,wall split type air conditioner, cooling capacity is 2500W，power is 220V～/50Hz/1PH，
refrigeration is R410A,the kernel of indoor unit is fresh 98，the pattern no. is 85，first time design, outdoor
unit is 1HP of 2003 year。
Indoor unit modle is：CS-25C3A-V85A，outdoor unit model is：CS-25C3A-Y1。
3. Attention of installation
3.1 Safety Precaution
■
To prevent injury to the user or other people and property damage, the following instructions must be followed.
■
Incorrect operation due to ignoring instruction will cause harm or damage.
■Before service unit, be sure to read this service manual at first.
3.2 Warning
﹥Installation
■Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
