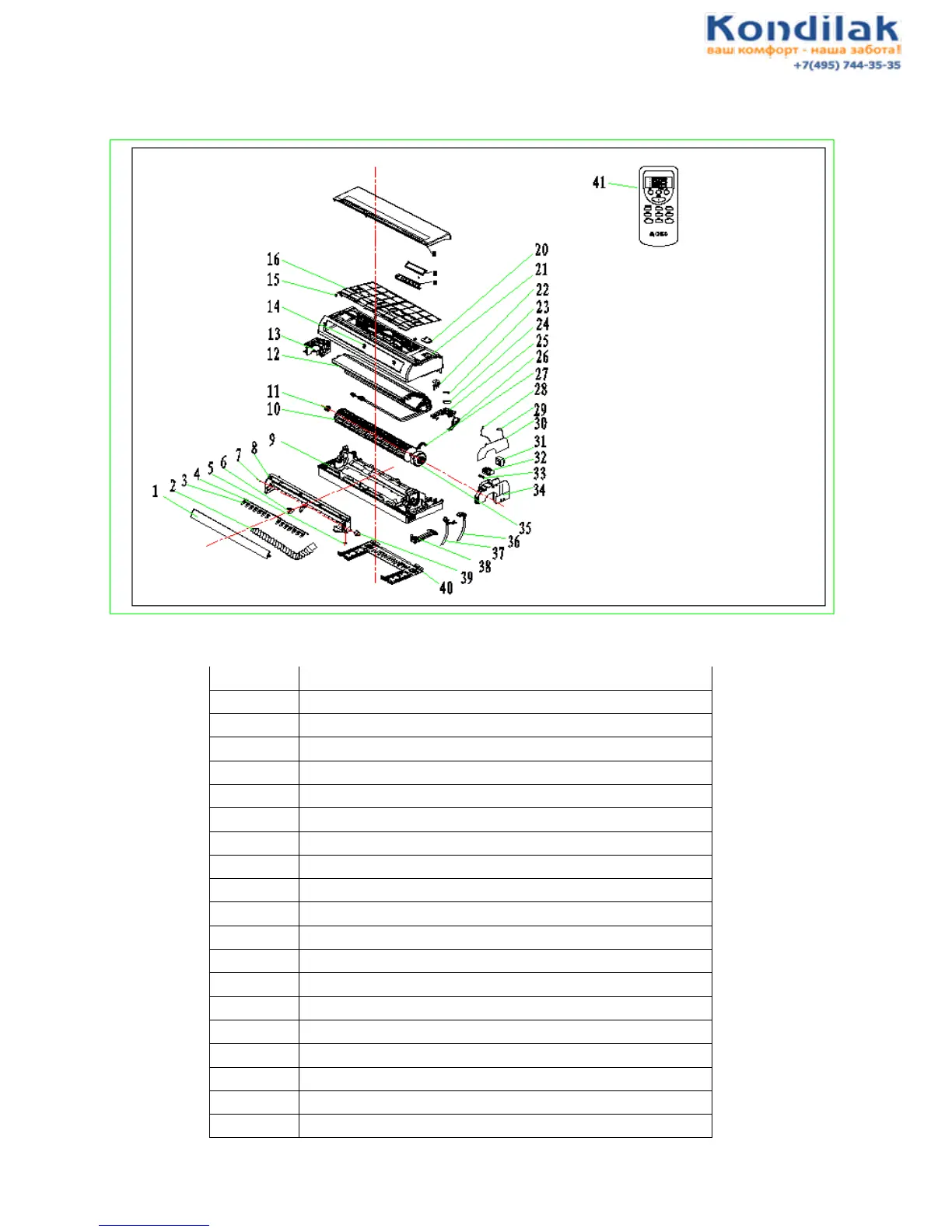

D、Exploded view and part list
1、Indoor: CS-25V3A-MA114A、CS-35V3A-MA114A
1
LOUVER
2
THERMAL INSULATION PIPE
3
SWING LOUVER
4
CONNECTING LEVER
5
WATER RESISTANT RING OF WATERPOUT
6
LOUVER SUPPORT POLE
7
GUIDE BEARING
8
OUTLET PART
9
BASE
10
CROSS FLOW FAN
11
BEARING
12
EVAPORATOR
13
EVAPORATOR PLASTIC LEFT PLATE
14
SCREW COVER
15
CLIP
16
AIR FILTER
17
FRONT PANEL
18
Display lamp panel
19
DISPLAY BOX
20
MIDDLE FRAME COVERPLATE
