Page 6 of 40 IRIS Touch Engineering Manual Version 1.4
4. Package Contents
Contents dependent on model type:
 Dialler board
 Ethernet cable (IRIS Touch 620NG & 640NG)
 GPRS/3G antenna (IRIS Touch 600NG & 640NG)

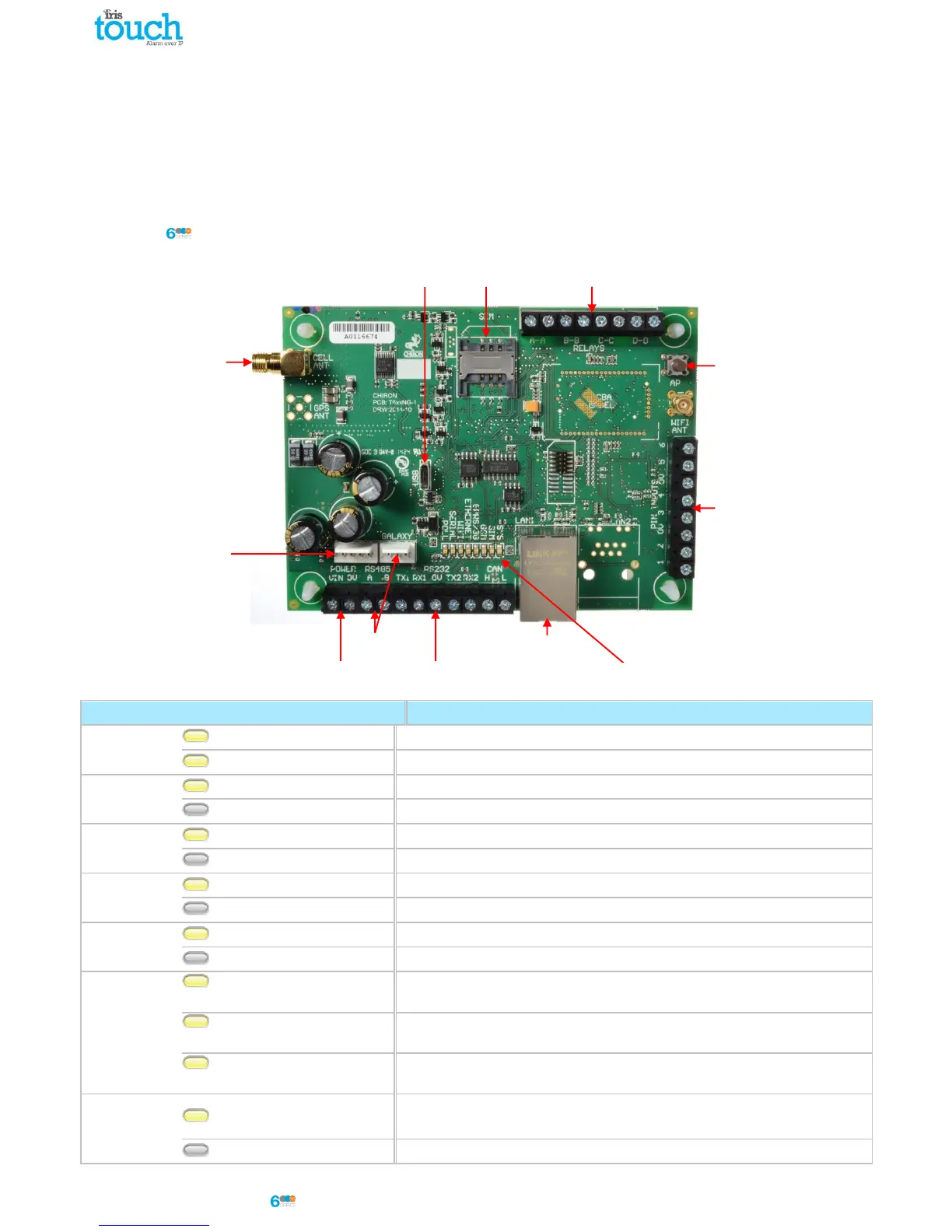

5. Board Configuration
IRIS Touch
LEDs
LED & Colour
Indication
SYS
On
Shows dialler is operational and all systems ok
Flashing
Shows the dialler has a system trouble.
SIM
On
Dialler is seeing the SIM card (IRIS Touch 600NG & 640NG)
Off
Dialler not currently seeing the SIM card (IRIS Touch 600NG & 640NG)
GSM
On
GSM connected / registered (IRIS Touch 600NG & 640NG)
Off
GSM Not connected / registered (IRIS Touch 600NG & 640NG)
GPRS/3G
On
GPRS/3G is attached to the network (IRIS Touch 600NG & 640NG)
Off
GPRS/3G is not attached to the network (IRIS Touch 600NG & 640NG)
ETHERNET
On
ETH connected / synchronized (IRIS Touch 620NG & 640NG)
Off
ETH disconnected / not synchronized (IRIS Touch 620NG & 640NG)
SERIAL
Flashing 0.2s On, 0.2s
Off
Shows not communicating with panel
Flashing 1.5s On, 1.5s
Off
Shows dialler not configured
Flashing 0.1s On, 0.9s
Off
Shows normal communication
POLL
On
Successfully polling with monitoring centre
Note: Flickers off to show each poll
Off
Not polling with monitoring centre
Pin
inputs
RS485
SIM card
holder
Ethernet
GPRS/3G
antenna
Serial
(TTL)
RS232 x 2
Relays
Micro
USB
AP
button
DC power
LEDs
