Quickstart Manual
For more in-depth information on the safety and warranty of the Hugo M
Scaler please see section 4 and 5 of the manual.
Connect only the supplied power supply to the DC 15V input of M
Scaler. Once connected, M Scaler will automatically power on. M Scaler
does not have a power button and will remain on until the power
supply is disconnected.

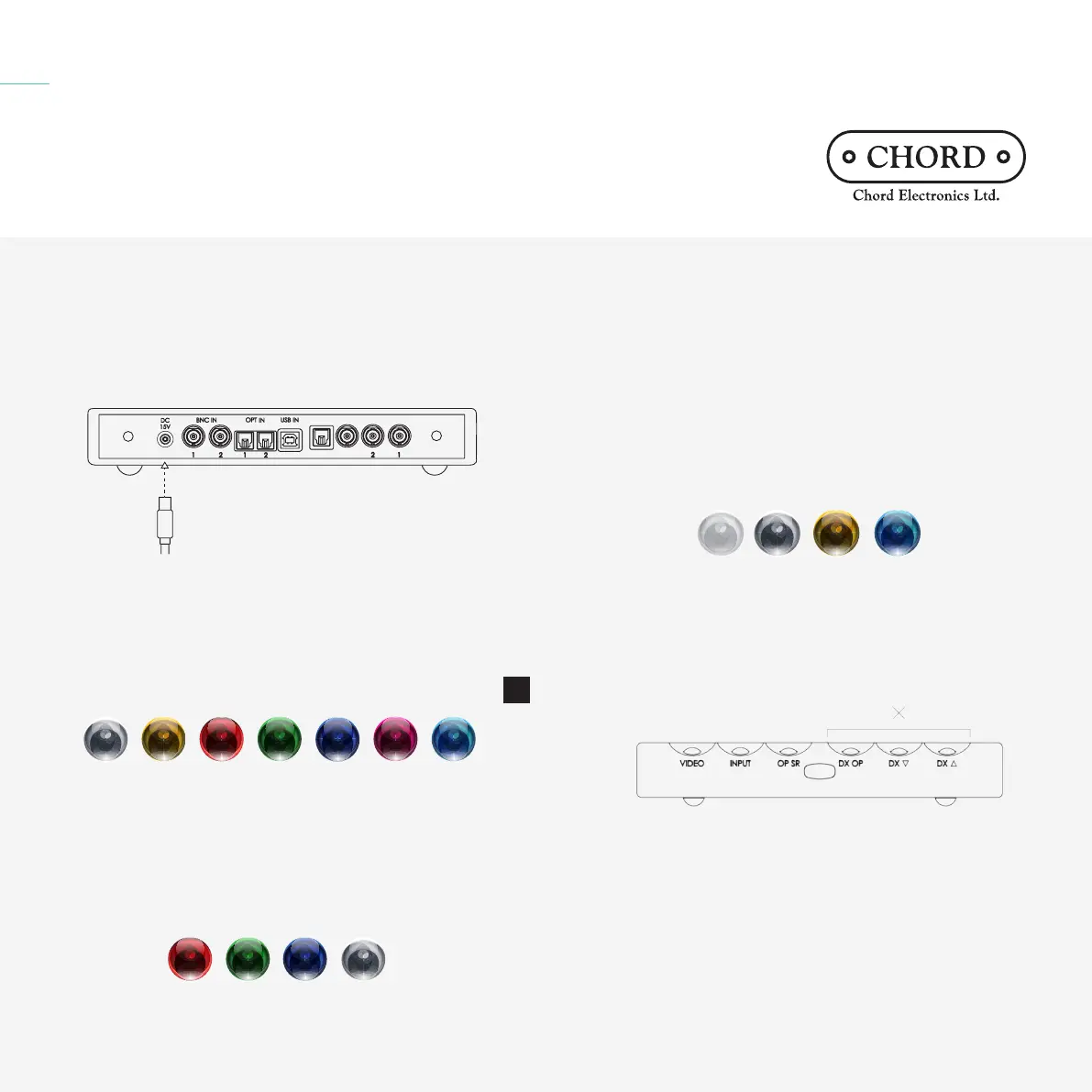

Connecting the power supply to M Scaler 5.0
OPT OUT
S/PDIF
DUAL BNC OUT
Power in
Selecting your input 6.0
You must select the corresponding colour of the input to the input
listed below in which you intend to upsample. Press the input button
as required to match the colour. Please note, if Dual BNCs are detected
the M Scaler will automatically select the input,
USB BNC 2 Automatic
(auto)
Dual BNCOptical 2Optical 1BNC 1
Selecting your upsample rate 6.1
You must select the corresponding colour for the upsample rate best
suited for your system. Select this by pressing the OP SR (Output
sample rate) button. Please view the chart on page 31 of the full user
manual.
Low MaxHighMedium
To avoid any latency when watching video, we recommend activating
‘Video Mode’ or ‘Automatic Mode’. This will reduce the number of
taps, a measure of resolution, and in turn, reduce the latency. With the
‘VIDEO’ button o, the video filter will be o, with the button white the
video filter will be on.
We recommend that when you switch back to listening to music that
you deactivate ‘Video Mode’. When the button shows as yellow (music
playback detected) or cyan (video playback detected) the mode is
automatic and will automatically detect whether you are watching a
video or listening to music, not requiring manual intervention.
How to avoid latency when watching video 7.0
The last 3 buttons on the M Scaler unit (DX OP, DX down, DX up) are
not to be used as of yet, they have been implemented for a future
product that will pair with the M Scaler. Please leave them o.
DX Buttons 8.0
OnO Video PBMusic PB
Now that you have successfully completed the setup of your M Scaler
you can immediately begin to experience its transformational quality
on your digital music collection. However, we advise that you register
your product with us. Registering helps us give you the best possible
support and protects your investment:
Product registration 9.0
chordelectronics.co.uk/register-product/
