Chord Ultima - The Top Panel; The Rear Panel

Chord Electronics
Ultima | Manual
_
Chord Electronics
Ultima | Manual
_
20 // 30 21 // 30
The top panel 3.3 The rear panel 3.4
3.1 Getting to know Ultima
3.2 The front panel
3.1 Getting to know Ultima
3.2 The front panel
3.3 The top panel
3.4 The rear panel
3.3 The top panel
3.4 The rear panel

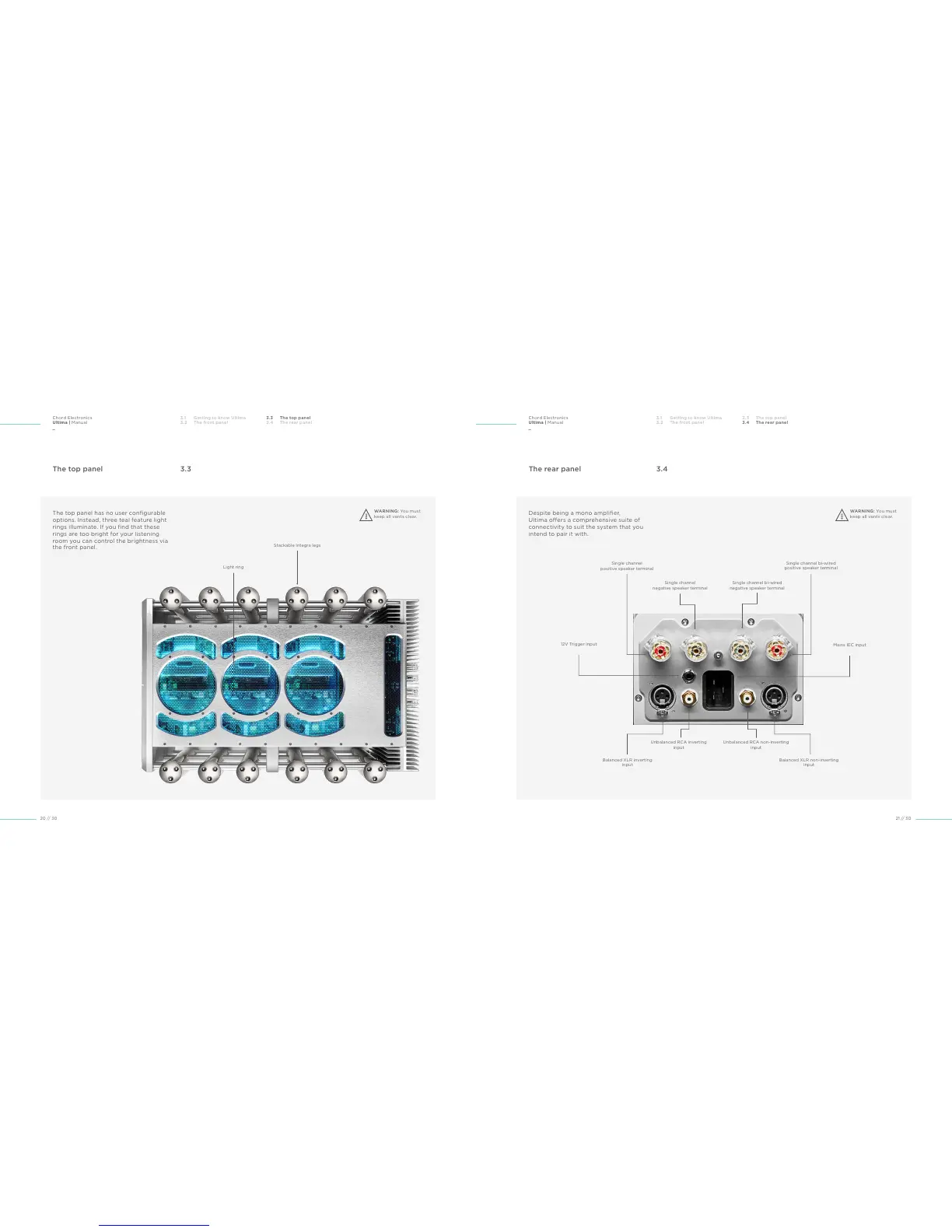

The top panel has no user configurable
options. Instead, three teal feature light
rings illuminate. If you find that these
rings are too bright for your listening
room you can control the brightness via
the front panel.
Despite being a mono amplifier,
Ultima oers a comprehensive suite of
connectivity to suit the system that you
intend to pair it with.
WARNING: You must
keep all vents clear.
WARNING: You must
keep all vents clear.
Stackable Integra legs
Single channel
positive speaker terminal
Single channel
negative speaker terminal
Single channel bi-wired
negative speaker terminal
Single channel bi-wired
positive speaker terminal
12V Trigger input
Mains IEC input
Balanced XLR inverting
input
Balanced XLR non-inverting
input
Unbalanced RCA inverting
input
Unbalanced RCA non-inverting
input
Light ring
