Planning
Model 108 FLEX-AUGER® Feed
Delivery System
12
MA1714
C
Straight-Out Bin Boot with
Feed Screener
(Boot Rotated 90°)
30° Bin Boot with Feed Screenter
11
13
Table of Contents
Limited Warranty
2
Table of Contents
3
Safety Information
4
Follow Safety Instructions
4
Decal Descriptions
4
General
5
Capacities and Specifications of the 108 FLEX-AUGER® Feed Delivery System
6
Planning
7
Planning the Feed Delivery System
7
Typical System Installations
9

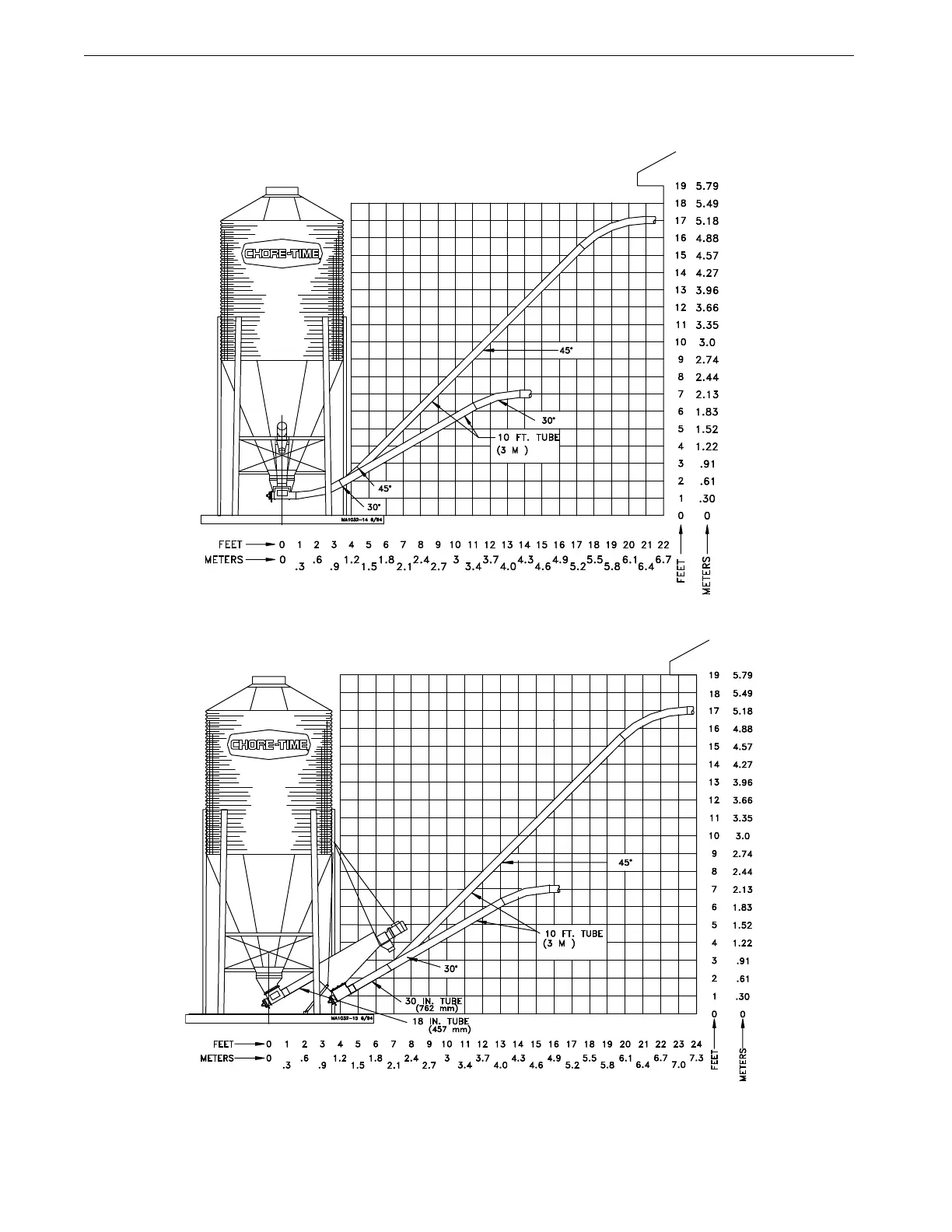

Model 108 Flex-Auger® Systems bin Placement Chart
10
Model 108 FLEX-AUGER® Systems bin Placement Chart
11
Straight-Out bin Boot with Feed Screener
12
Installation
14
Auger Tube Installation
15
Outlet Drop Installation
17
Supporting the System Inside the Building
18
Supporting the System Outside the Building
19
Control Unit & Power Unit Installation
22
Belt Drive Control Unit Installation
23
Auger Installation
24
Cover Plate Installation
25
Auger Brazing/Filing
25
Restrictor Adjustment
26
Straight-Through Tandem Boot
27
Operation
32
Start-Up Procedure for New Systems
32
Parts Listing
33
Miscellaneous Line Components
33
Model 108 Drop Kit (34358)
34
Power Unit Assembly Part Numbers
34
Power Units
35
Single Phase Direct Drive Control Unit (Part No. 46800-5)
36
3-Phase International Direct Drive Control Units (Part No. 46800-10)
36
Switch Plate & Assembly (Part No. 46051)
37
Belt Drive Control Unit (Part No. 46138-2)
38
Model 108 Boot Components
39
Model 108 Boot Components
40
Troubleshooting
42
Maintenance
44
Oil Recommendation
44
Livestock and Poultry Feed Consumption
45
Other manuals for Chore-Time FLEX-AUGER 108
Installation Instruction
52 pages
Installation Manual
60 pages
Installation Instructions
12 pages
