Model 108 FLEX-AUGER® Feed Delivery System Installation
15
MA1714C
Auger Tube Installation
The FLEX-AUGER
®
Delivery System includes two 45 degree elbows as standard equipment. These elbows are
used to make up the sloping portion of the auger line at the feed bin, and elsewhere in the system if necessary.
If additional elbows are required they should be ordered separately. Figure 2 shows how the elbow can be cut
into shorter sections.
Dimension PVC Steel
"A" 16.8" (43 cm) 16.3" (41 cm)
"B" 25.2" (64 cm) 24.4" (62 cm)
"C" 33.6" (85 cm) 32.5" (83 cm)
"D" 50.3" (128 cm) 48.8" (124 cm)
Note: All measurements are along the outside edge of the elbow.
Note: PVC elbows are belled. Dimensions shown do not include bell.

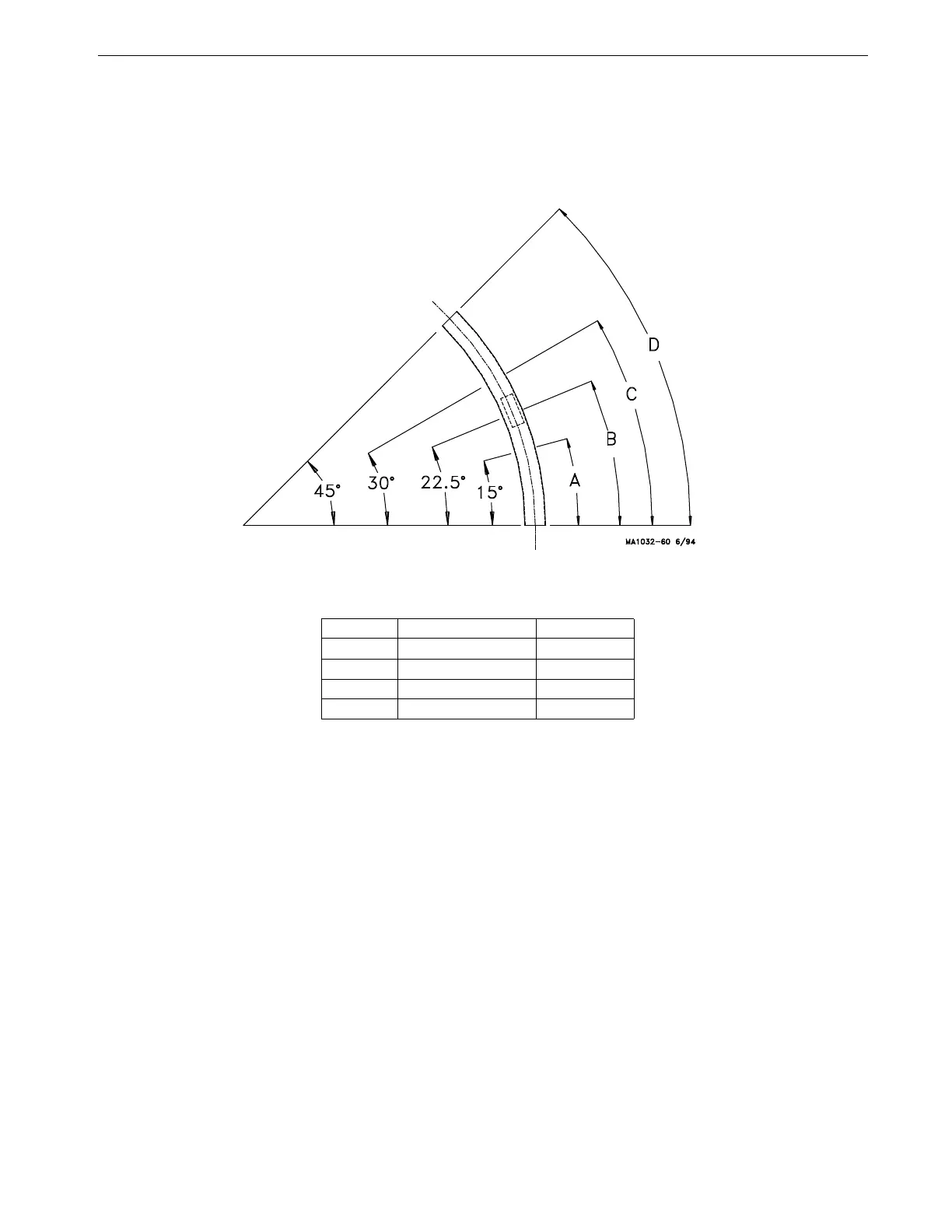

Figure 2.PVC Elbow Cutting Guidelines (Side View)
