Straight-Through Tandem Boot
The Straight-Through Tandem Boots allow a single auger to remove feed from two separate feed bins. Feed
should only be drawn from one bin at a time.
Boot Baffles are required and included with the Straight-Out Boot Assembly.
Model 108 Straight-Through Tandem Systems do not use Feed Restrictors.
1.Install boots on both feed bins. Figure 21 shows a typical Straight-Through Tandem System.
Key Description
1 Straight-Out Boot on Terminal Bin
2 Straight-Thru Boot (w/Baffle) on Intermediate Bin

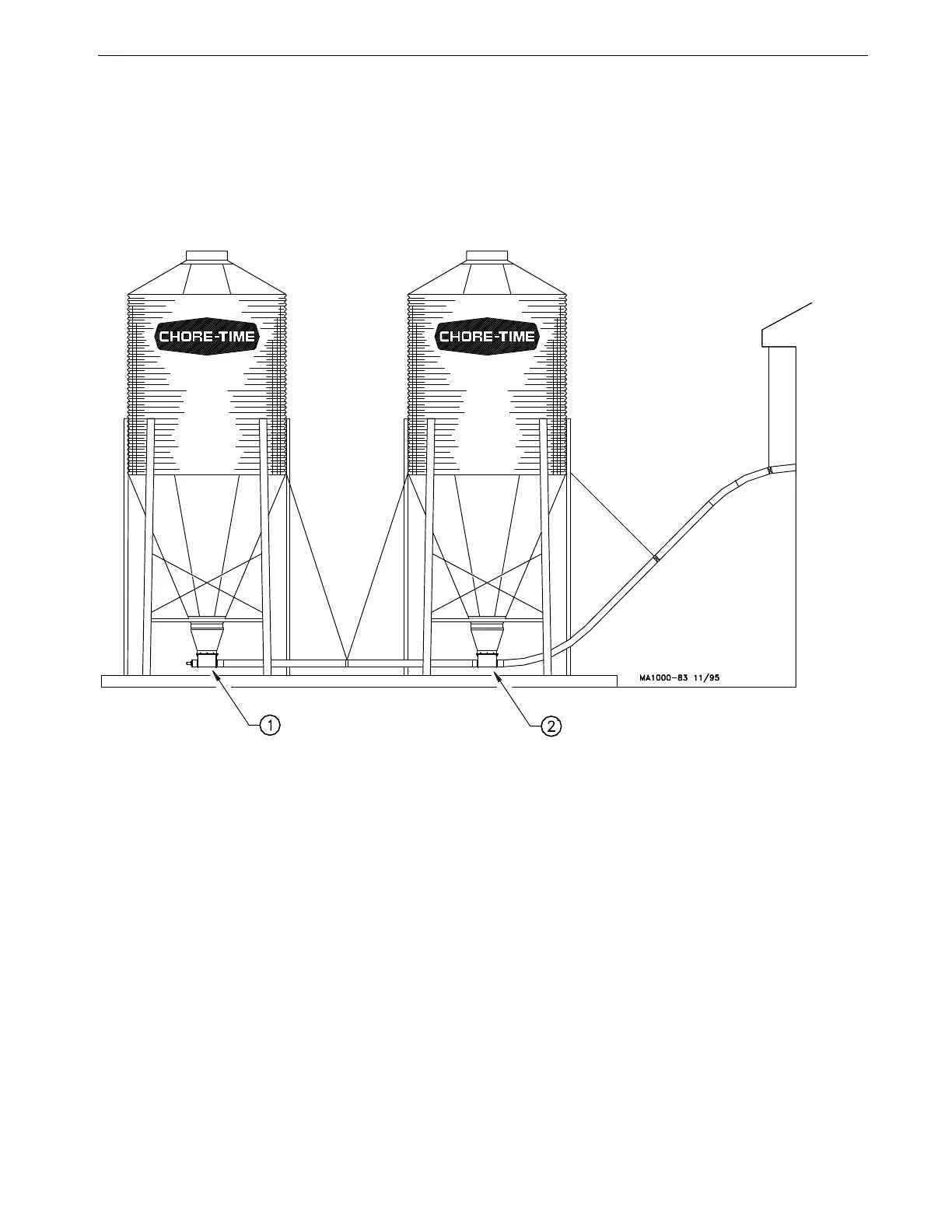

Figure 21.Model 108 Straight-Through Tandem
