Installation Model 108 FLEX-AUGER® Feed Delivery System
28
MA1714C
PVC Model 108 FLEX-AUGER
®
Systems
1.Place an Insert in the belled end of the connecting auger tube. The Insert fits directly over the outlet end of
the Terminal Boot.
2.Cut the straight end of the auger tube even with the stub tube on the Intermediate Boot.
Slide an Insert into the end of the auger tube and over the inlet end of the intermediate boot.
3.Secure this joint using a Tube Coupler and clamp.
4.Place an Insert in the belled end of the Elbow before inserting over the outlet end of the Intermediate Boot.
5.Install tube clamps as shown to secure the boot components in place.
Key Description
1 PVC Elbow
2 Tube Insert
3 Straight-Thru Boot (Intermediate Bin)
4 Tube Connector
5 10’ (3 m) PVC Auger Tube
6 Straight-Out Boot (Terminal)

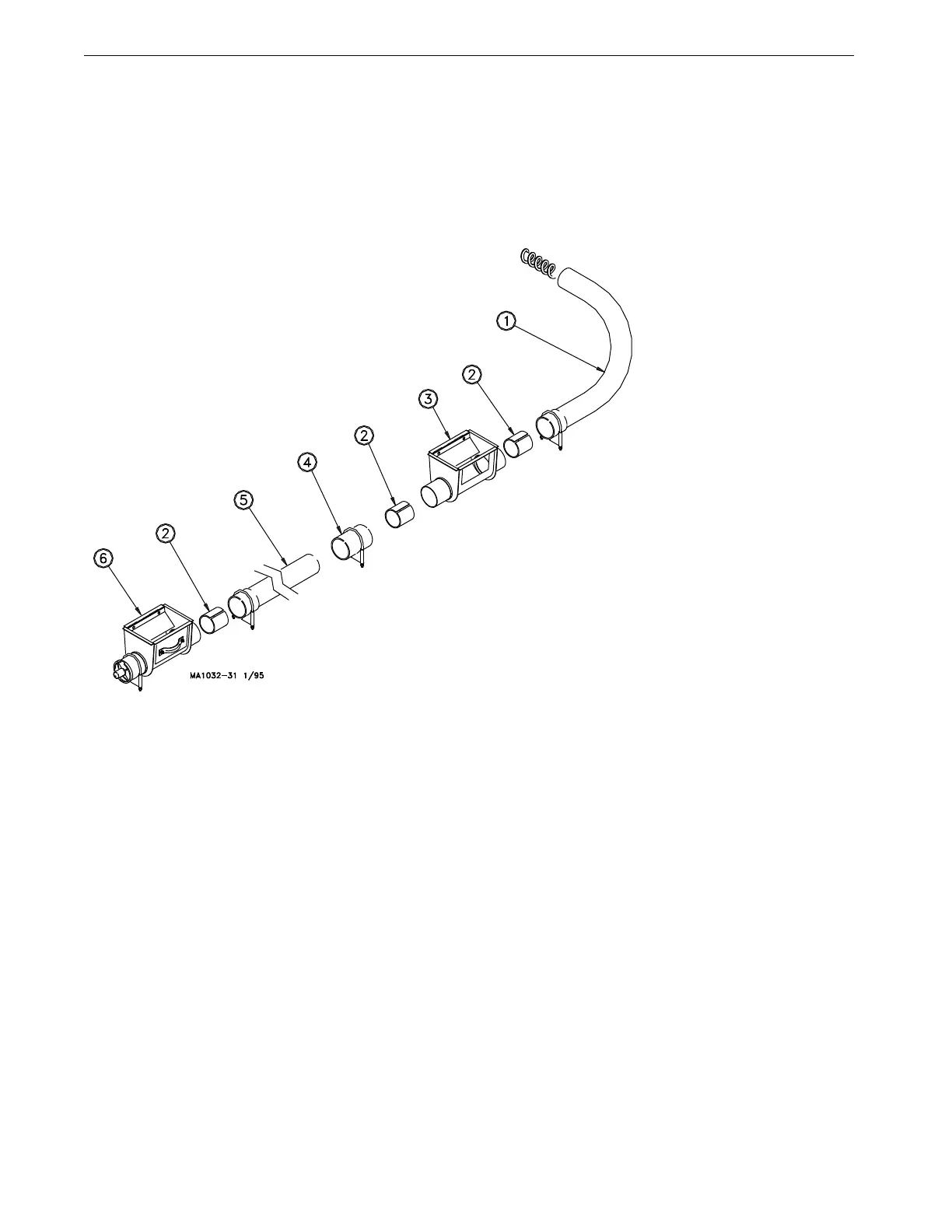

Figure 22.Model 108 PVC Straight-Through Tandem System
