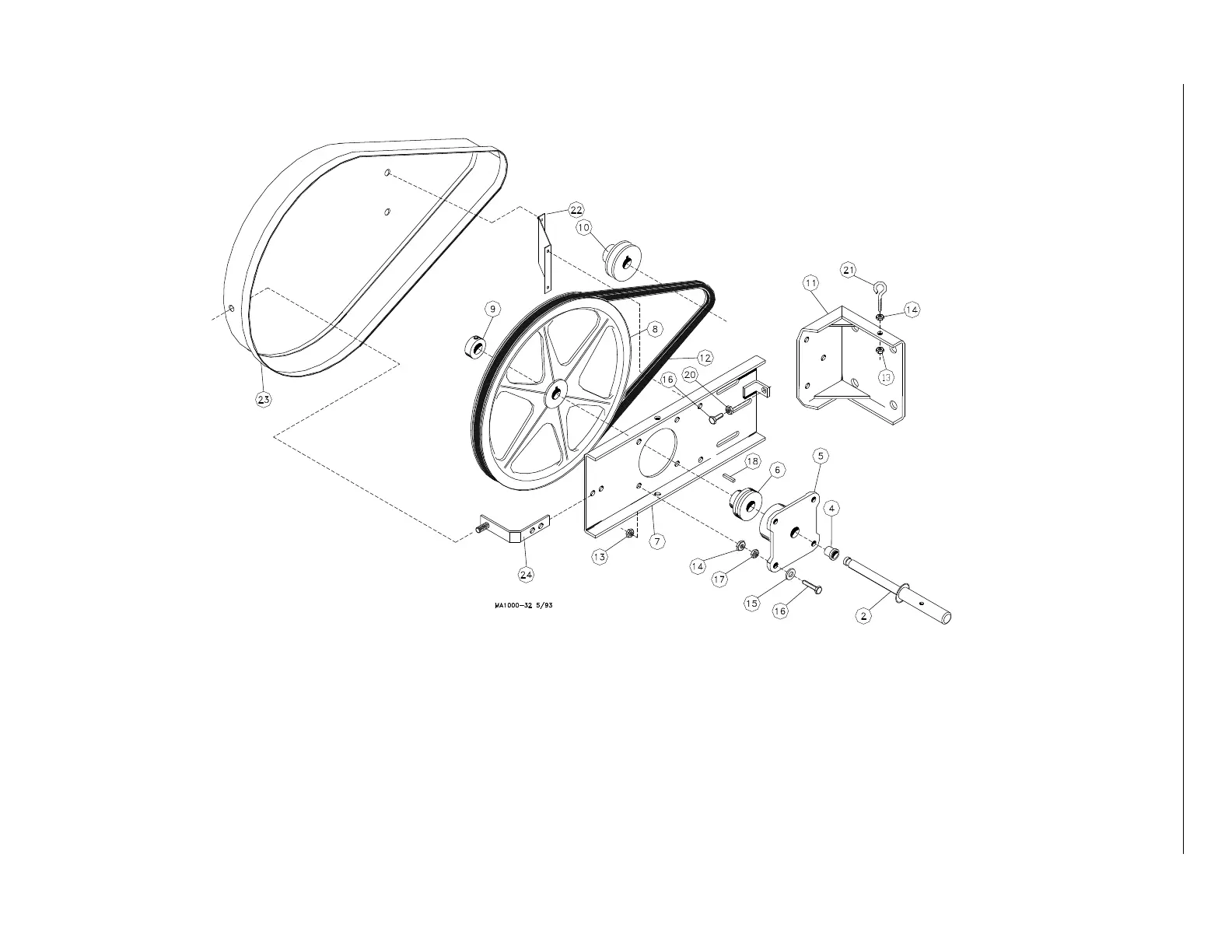

Parts Listing Model 108 FLEX-AUGER® Feed Delivery System
38
MA1714C
Belt Drive Control Unit (Part No. 46138-2)
Note: The 46800-15 Belt Drive Control Unit includes the Direct Drive Control Unit Components, plus the following components:
Key Description Part No.
2* Drive Shaft 46156
4* Flange Bearing 2196
5* Front Plate Bearing Holder 2047
6* Ball Bearing 5930
7 Adjustment Bracket 46301
8 11" Dia. Sheave 46190
9* 5/8" Set Collar 1386
10 2.25" Dia. Sheave 3208
11 Motor Mount Weldment 3058
12 "V" Gripnotch Belt 4409
13 5/16-18 Hex Locknut 2148
*Item May be ordered as a Bearing & Shaft Assembly (Part No. 46157)
Key Description Part No.
14 5/16-18 Jam Nut 593
15 5/16 Flat Washer 546
16 5/16-18x1-3/4" Hex Hd. M.S. 4412-4
17 5/16-18 Hex Lock Nut 2148
18* 3/16" Key 2112-1
19 Anchor Clamp 7703
20 5/16-18 Hex Nut 2145
21 Eyebolt 1503-2
22 Belt guard Mount 46198
23 Belt Guard 46199
24 Angle Guard Mount 46299
