Parts Listing Model 108 FLEX-AUGER® Feed Delivery System
36
MA1714C
Single Phase Direct Drive Control Unit (Part No. 46800-5)
3-Phase International Direct Drive Control Units (Part No. 46800-10)
Components - Same as Standard Direct Drive Control Units except does not include the 90° connectors
and the flex conduit.

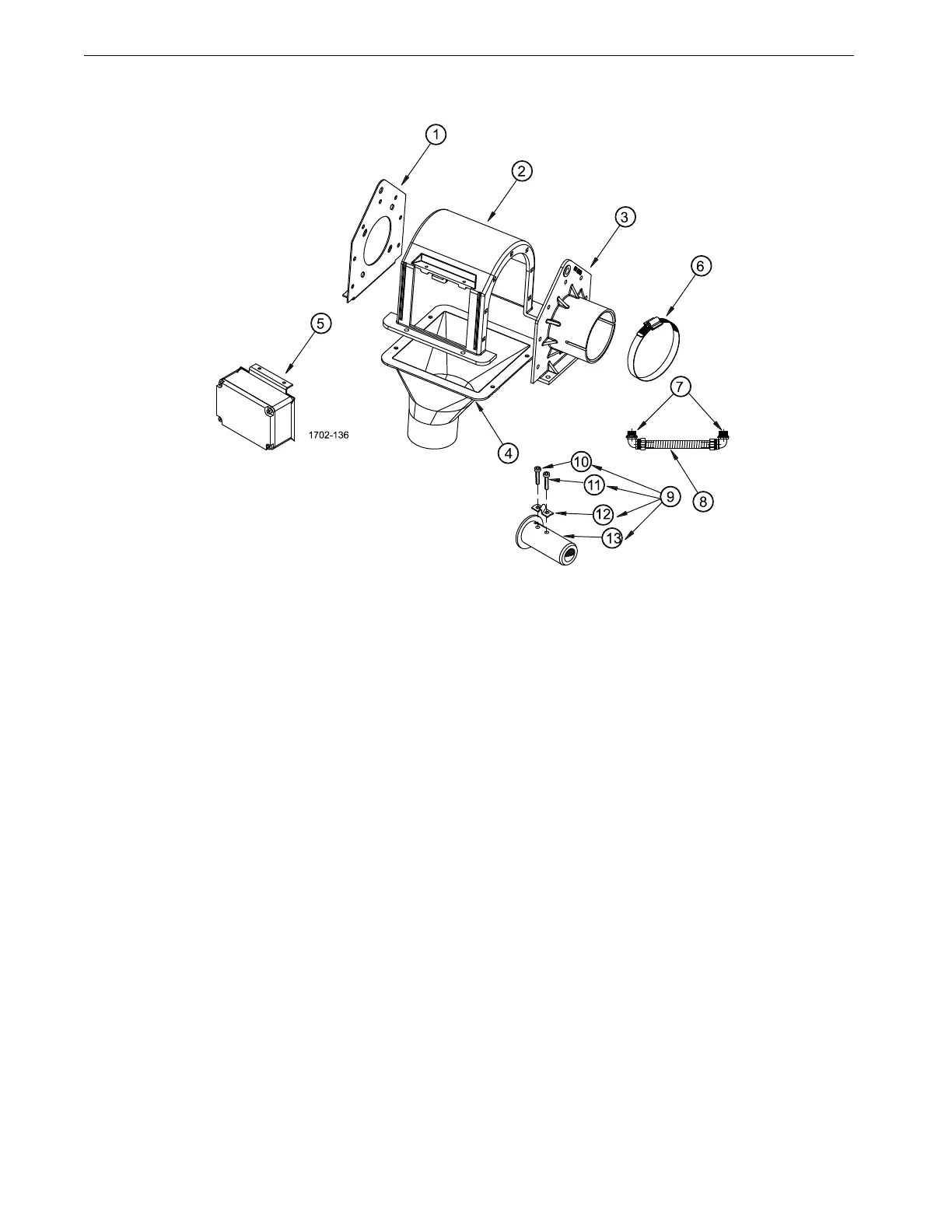

KEY DESCRIPTION PART NO.
1 Gearhead End Plate 43596
2 Control Unit Body 43601
3 Tube Anchor Plate 45927
4 Control Unit Funnel 45943-3
5 Switch & Plate Assembly 46051
6 H.D. Adjustable Clamp 47652-2
7 Water Tight Connector 23810
8 Flex Conduit 26982-10
9 Driver Assembly 30313
10 Screw, SKTH CP 5/16-18X .875 6850-1
11 Screw, SKTH CP 5/16-18X 2.75 6850-2
12 Anchor Clamp 7703
13 Driver Weldment 30312
