Parts Listing Model 108 FLEX-AUGER® Feed Delivery System
40
MA1714C
Model 108 Boot Components
The Item numbers below are associated with the parts list drawing on the following page.

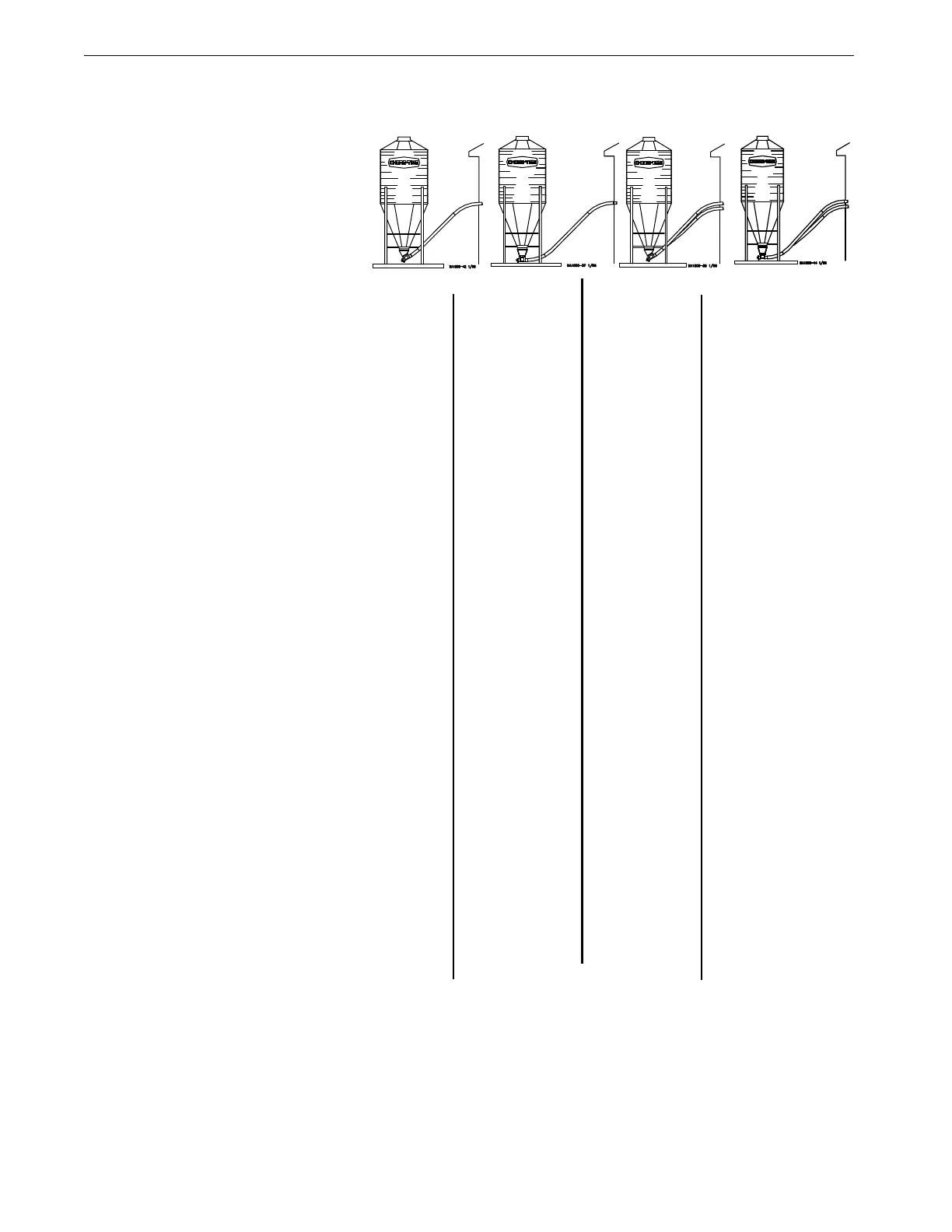

Item Description 30 Degree Straight Out 30 Degree Straight Out
Boot System Single Boot Syst. Twin Boot Syst. Twin Boot System
-- Complete System 34339 34340 35625 35626
--
2
Lower Boot Assembly 34336 34341 35613 35612
1A 30 Degree Upper Boot 4347R/C - - - - 4347R/C - - - -
1B Straight Out Upper Boot - - - - 6093R/C - - - - 6093R/C
2 Transfer Plate Assembly 4925 4925 4925 4925
3 Slide 4357 4357 4357 4357
4 Slide Shield 4876 4876 4876 4876
5 Chain 2128-250 2128-250 2128-250 2128-250
6 Ring 1706 1706 1706 1706
7 Neoprene Seal 34334 34334 34334 34334
8 Seal Ring 8117 8117 8117 8117
9 Tube Clamp (for STEEL systems) 34338 34338 34338 34338
9
3
Tube Clamp (for PVC systems) 14373 14373 14373 14373
10 Tube Insert 34337 34337 34337 34337
11 Boot Body Weldment 30386 30385 - - - - - - - -
12
5
Anchor Weldment 30311 - - - - 30311 - - - -
13
5
Bearing Cap Assembly 30314 30314 30314 30314
14
5
5/8" Set Collar 1386 1386 1386 1386
15
5
Safety Cap 29702 29702 29702 29702
16
5
Anchor Clamp 7703 7703 7703 7703
17
5
5/16-18 x 7/8 Soc.Hd Cap Screw 6850-1 6850-1 6850-1 6850-1
18
1
Sealing Washer 39-20155 39-20155 39-20155 39-20155
19
1
5/16-18 Lock Nut 2148 2148 2148 2148
20 Baffle - - - - 14239 - - - - - - - -
21
1
Cover Weldment 6301 6301 6301 6301
22
1
Back Plate Assembly 6298 6298 6298 6298
23
5
Anchor Weldment - - - - 34369 - - - - 34369
25
4,3
Model 108 Connector 30277 30277 30277 30277
29
3
Tube Connector (for PVC systems) 34557 34557 34557 34557
30 Twin Boot Body Weldment - - - - - - - - 35617 35617
31 Center Baffle Plate - - - - - - - - - - - 35624
32 Baffle Weldment - - - - - - - - - - - - 35615
33 Cable Tie 56705 56705 56705 56705
1
These components may be ordered under Chore-Time Part No. 6197 Clean-Out Cover Assembly.
2
Items 2 through 32 make up the Lower Boot Assemblies.
3
These items are not included in the package and must be ordered separately.
4
The Model 108 Connector may be ordered with (2) 34338 Tube Clamps under Chore-Time Part No. 34419
Connector w/Clamps.
5
Items 12 - 17 may be ordered as an Anchor & Bearing Assembly (Restricted) under Chore-Time Part No.
35767. Items 13 - 17 and item 23 may be ordered as an Anchor & Bearing Assembly (Unrestricted) under
Chore-Time Part No. 35766.
