Model 108 FLEX-AUGER® Feed Delivery Syst
em
Installation
21
MA1714C

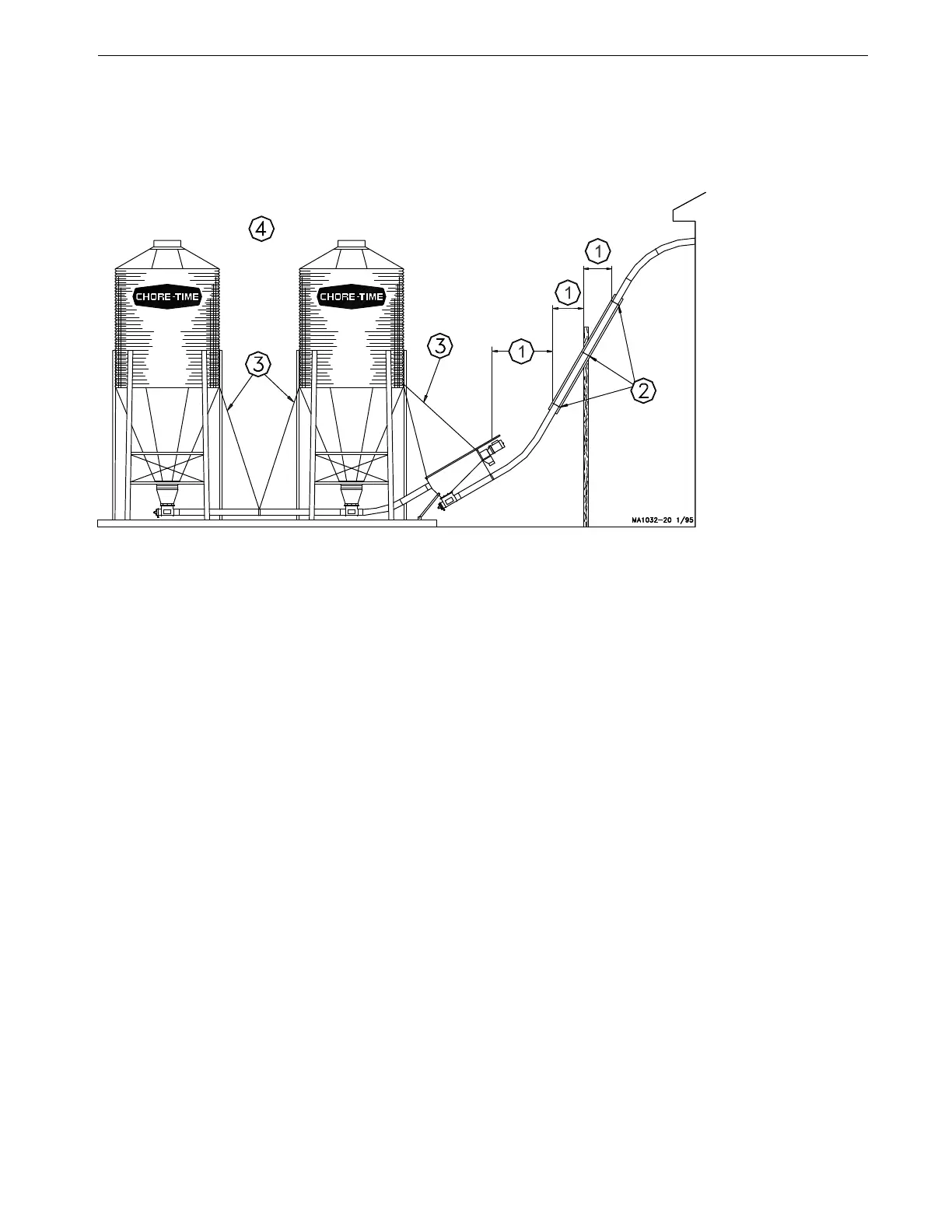

Straight Through Tandem Systems
Key
Description
1
5’ (1.5 m
) for PVC Systems
10’ (3 m) for Steel Systems
2
Place clamps here.
3
Chain o
r Cable
4
Ta
ndem Feed Bins
Figure 12.Stra
ight Throug
h Tandem Systems
20
22
