The fuel tank connects to the following items (Figure 3-10):
• Fuel Fill Hose
• Fuel Tank Vent Hose
• Engine Fuel Feed Hose
• Sending Unit
• Manual Shut-off Valve
Fuel tank connections may vary slightly from model to model and depends upon the type of fuel tank
installed.
On some models a manually operated fuel shut-off valve is located on the fuel tank (Figure 3-10). On other
models there is no manual fuel shut-off valve (Figure 3-11).
The shut-off valve is normally accessed via an access cover (Figure 3-12), generally located in the cockpit
deck. Actual location and physical appearance of the access cover may vary from model to model due to
fuel tank location and options chosen.

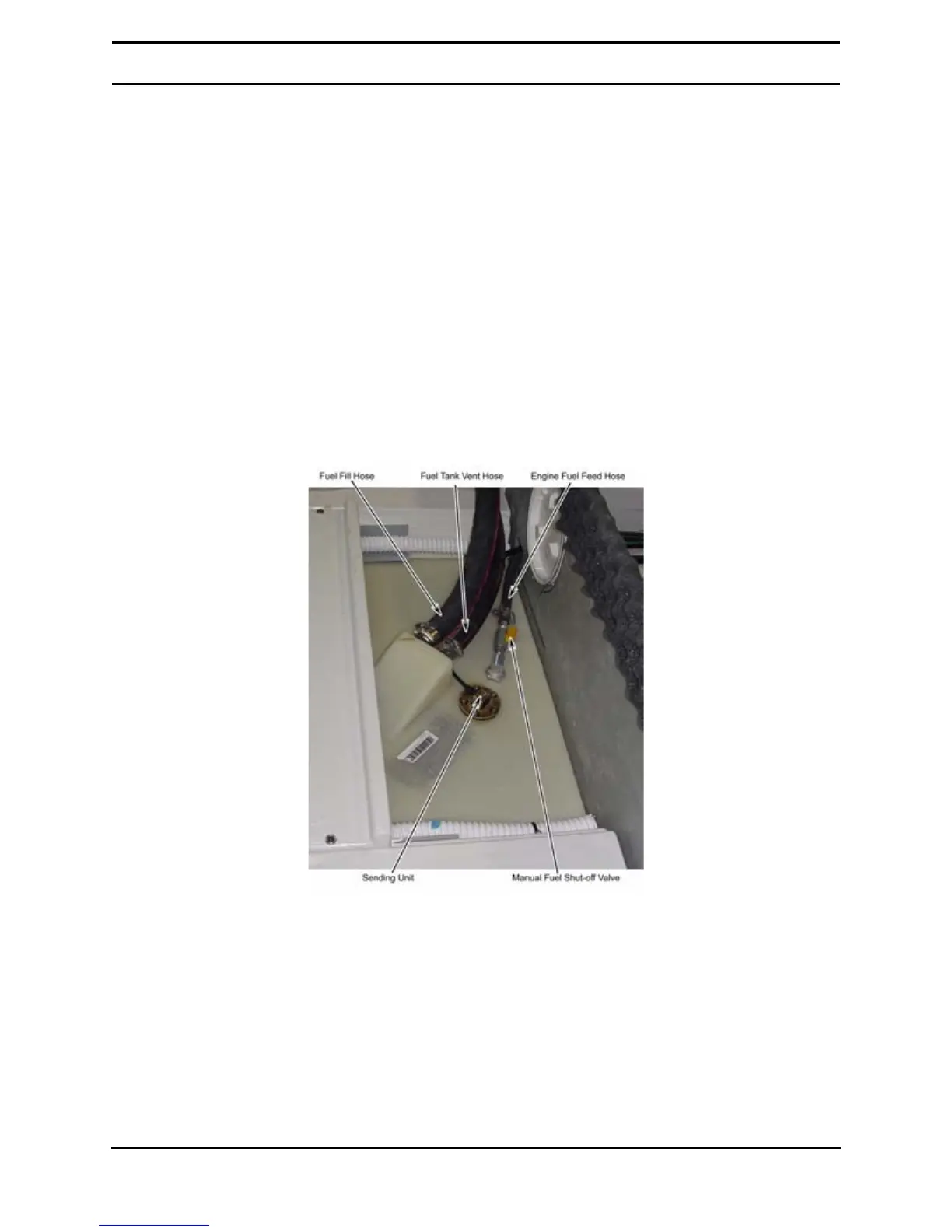

Figure 3-10. Fuel Tank Connections with Manual Shut-Off Valve
