3–24 Chris-Craft
Systems
The instrument panel layout may vary from model to model and also if the boat is single or dual engine.
Figure 3-20 illustrates a typical single engine instrument panel layout.
Figure 3-21 illustrates a typical dual engine instrument panel layout. The actual layout may vary from
model to model.

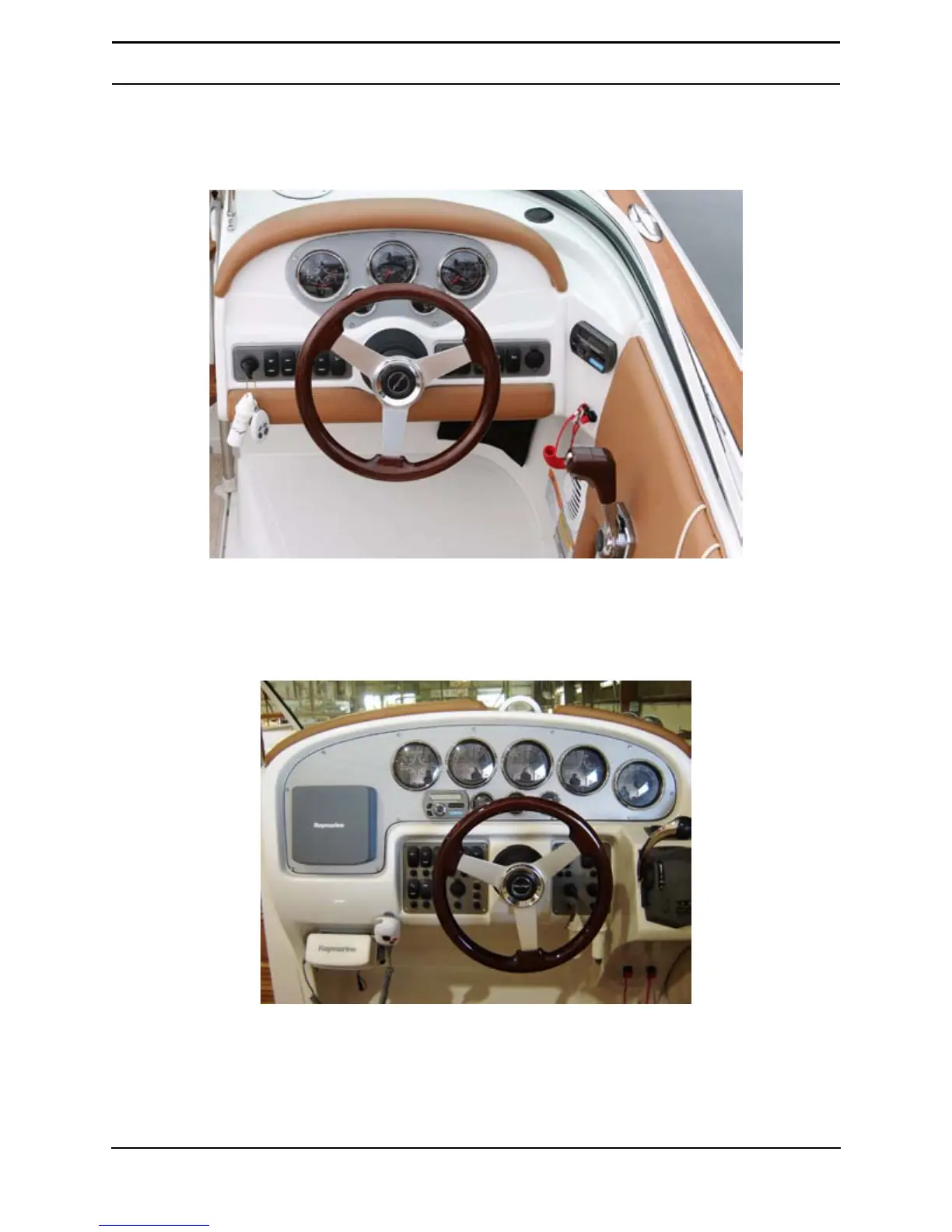

Figure 3-20. Single Engine Instrument Configuration
Figure 3-21. Dual Engine Instrument Configuration
