2. Introduction
Description
The Chromalox 2110 Temperature controller offers
simple setup, flexibility and control features in an at-
tractive, compact design. The 2110 is housed in a rug-
ged, plastic 1/4 DIN package that only requires four
inches behind the mounting surface. Straightforward
operation and easy-to-use control features are major
strengths of the 2110 controller.
Easy Three-Step Setup: The 2110 delivers exceptional
process temperature control. Your process is up and
running after three easy setup steps: 1) Select the sen-
sor and control type, 2) Hook up the system and 3)
Select the desired temperature.

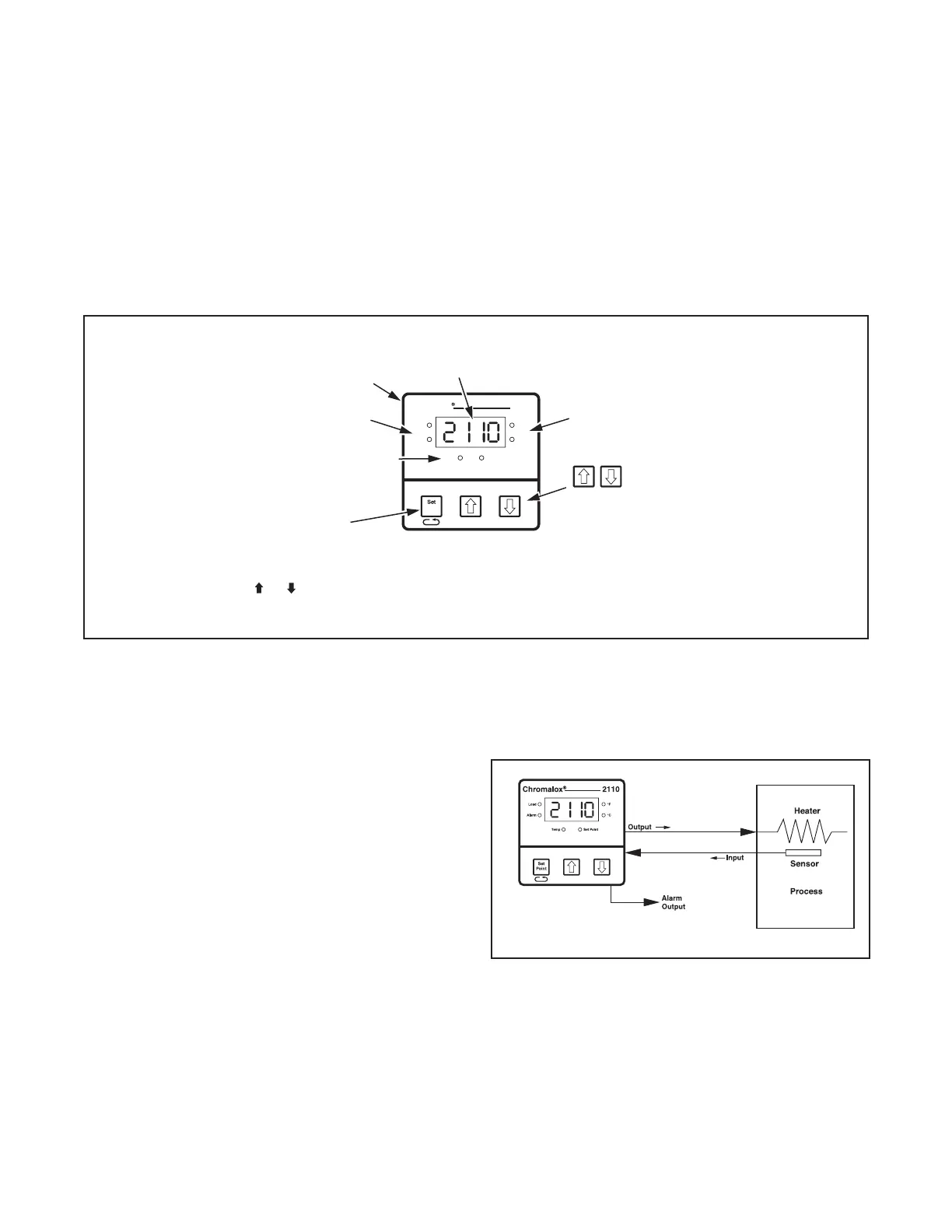

Figure 2.1
Front Panel Identification
NEMA 4X Front Panel
Construction for
hosedown applications
Output LEDs
Indicates control load
ON and alarm status
Temp and Set Point LEDs
Indicates actual or set point
temperature is displayed
Display
(7-Segment LEDs)
Actual process temperature displayed
LEDs
Indicates °F or °C
selected for temperature
display
• In Operation Mode,
pushbuttons adjust Set
Point.
• In Setup Mode,
pushbuttons increase/
decrease MENU values.
Set Point Button
• In Operation Mode, adjusts
Set Point
• In Configuration Mode with
the or button, serves
as “Menu” button
Load
Alarm
°F
°C
Temp
Point
Set Point
Chromalox 2110
Inspection & Unpacking
Your Chromalox 2110 controller should arrive in good
condition. Upon arrival, inspect the packaging for any
visible damage.
Unpack the controller and carefully inspect for product
damage that may have occurred during shipment. If the
package or contents have been damaged in shipping,
you must file a claim with the delivery service. The de-
livery service will not accept a claim from the shipper.
If not immediately installing the controller, store in a
cool, dry environment in its original protective packag-
ing. Temperature extremes and excessive moisture can
damage the instrument.
Typical Application
Figure 2.2 shows the 2110 in a typical application.
Figure 2.2
Typical Application
