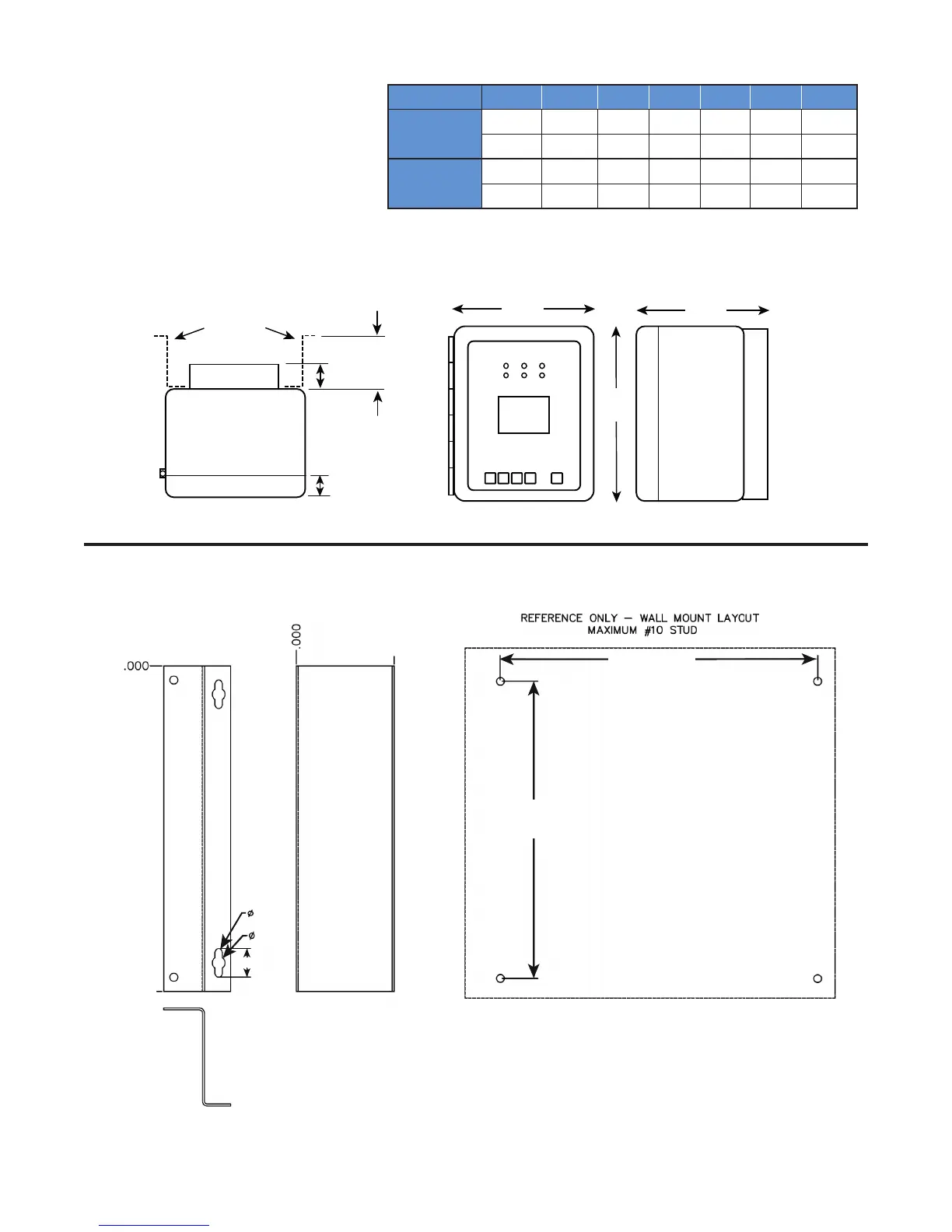

Dimensions
ITC Controller
B Heat Sink
F
Mounting
Brackets
M
W
H
D
Heat Sink
H W D F B M
316 SS
Enclosure
Inch 11.8 9.9 7.6 0.7 1.8 3.0
cm 30.2 25.1 19.4 1.7 4.4 7.6
Fiberglass
Enclosure
Inch 10.3 8.5 8.0 1.2 1.8 3.0
cm 26.2 21.3 19.7 3.2 4.4 7.6
Wall Mount Brackets
Wall Mount Bracket Dimensions are in Inches
.218
(0.55)
.390
(0.99)
10
.000/11.813
(25.4/30.0)
8.250/10.188
(21.0/25.9)
8.750/10.625
(22.2/27.0)
.875 (2.2)
3.000
(7.62)
Dimensions are given for both enclosure types: Fiberlgas/316SS
Wall Mount Bracket Dimensions are in Inches (cm)
