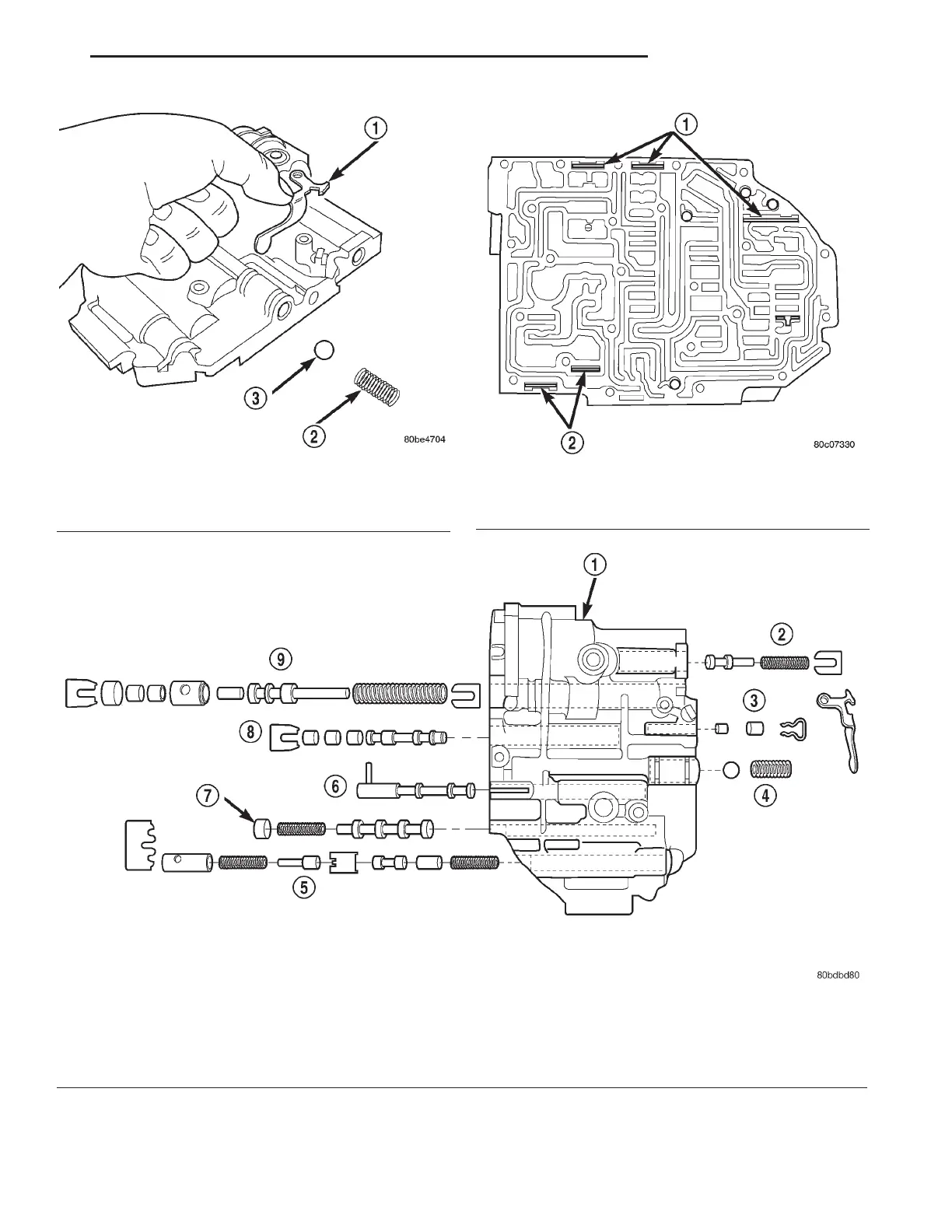

Fig. 136 Valve Retainer Location
1 – RETAINER
2 – RETAINER
Fig. 135 Vent Reservoir Check Valve and Spring
1 – RETAINER
2 – SPRING
3 – BALL
Fig. 137 Springs and Valves Location
1 – VALVE BODY
2 – T/C REGULATOR VALVE
3 – L/R SWITCH VALVE
4 – VENT RESERVOIR CHECK VALVE
5 – CONVERTER CLUTCH CONTROL VALVE
6 – MANUAL VALVE
7 – CONVERTER CLUTCH SWITCH VALVE
8 – SOLENOID SWITCH VALVE
9 – REGULATOR VALVE
LH 42LE TRANSAXLE 21 - 61
DISASSEMBLY AND ASSEMBLY (Continued)
