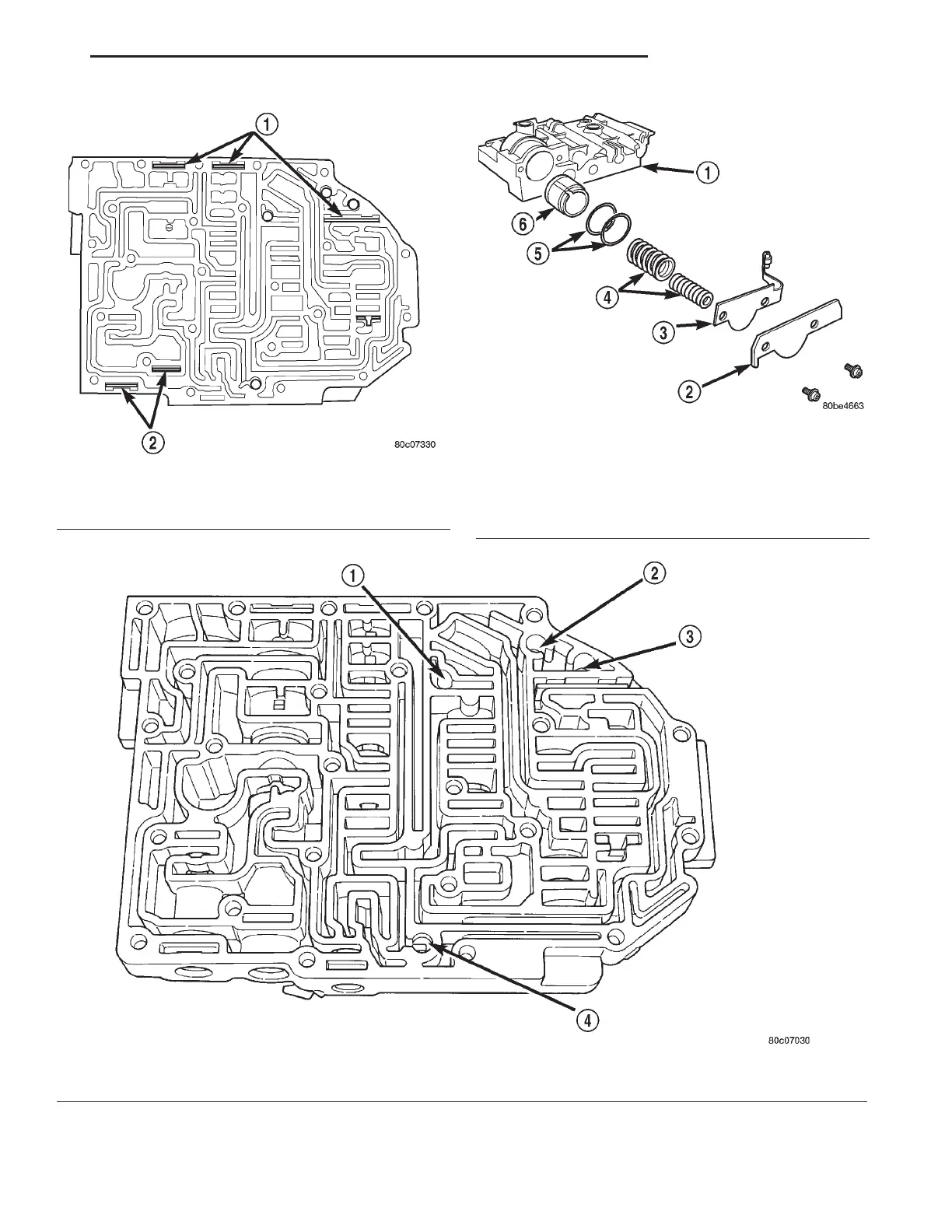

Fig. 143 2/4 Accumulator Assembly
1 – VALVE BODY
2 – RETAINER PLATE
3 – DETENT SPRING
4 – SPRINGS
5 – SEALS
6 – PISTON
Fig. 142 Valve Retainer Location
1 – RETAINER
2 – RETAINER
Fig. 144 Ball Check Location
1 – (#4) BALL CHECK LOCATION
2 – (#2) BALL CHECK LOCATION
3 – (#5) BALL CHECK LOCATION
4 – (#3) BALL CHECK LOCATION
LH 42LE TRANSAXLE 21 - 63
DISASSEMBLY AND ASSEMBLY (Continued)
