NOTE: To align oil pump during installation, use
threaded dowels or phillips screwdrivers.

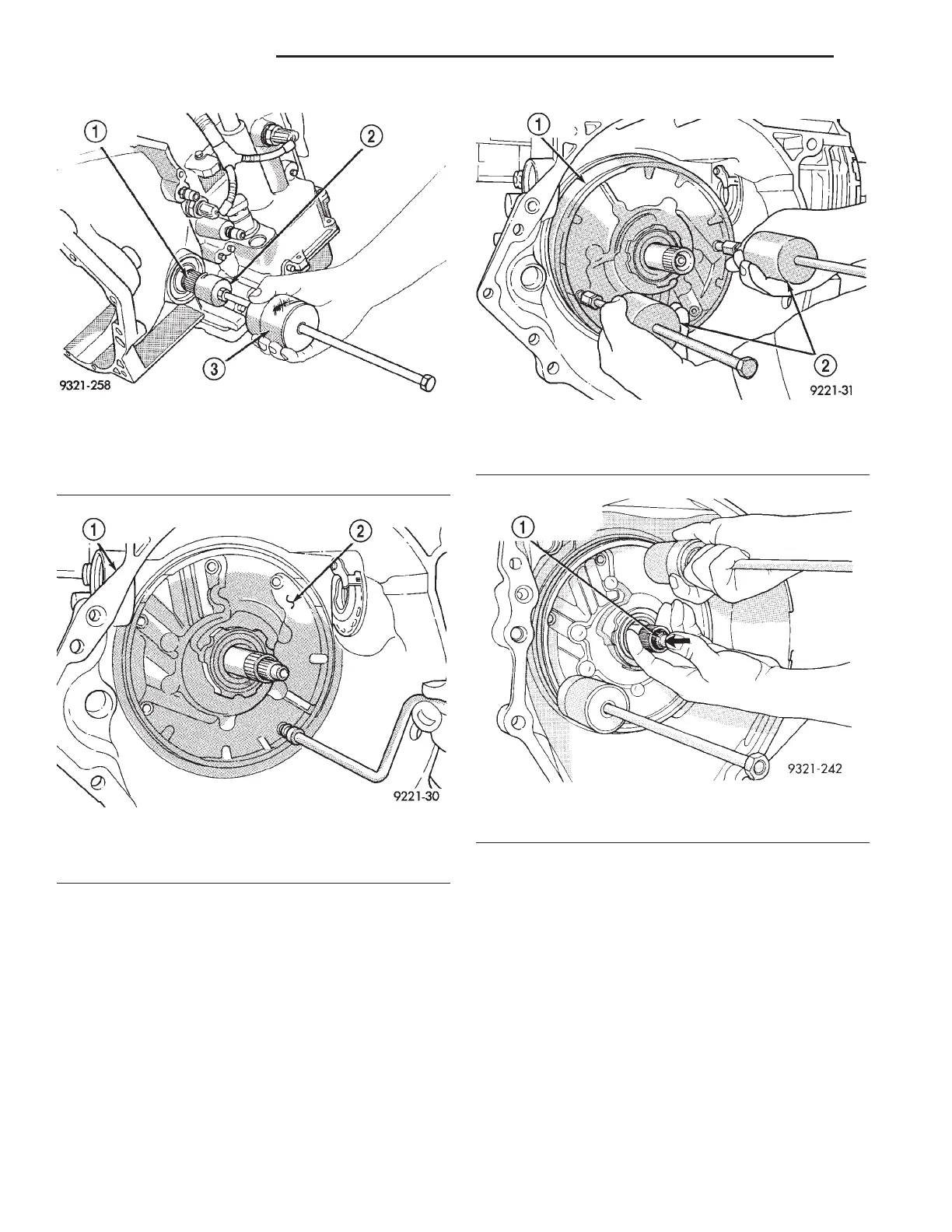

Fig. 169 Remove Long Stub Shaft From Bellhousing
1 – LONG STUB SHAFT
2 – SPECIAL TOOL 6669
3 – SLIDE HAMMER C-3752
Fig. 170 Remove Oil Pump Attaching Bolts
1 – BELLHOUSING
2 – OIL PUMP
Fig. 171 Oil Pump Pullers
1 – OIL PUMP
2 – PULLERS
Fig. 172 Remove Oil Pump
1 – “PUSH IN” ON INPUT SHAFT WHILE REMOVING PUMP
21 - 70 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
