NOTE: Tag underdrive clutch pack for reassembly
identification.
(17) Remove the UD clutch pack (Fig. 242).
CAUTION: Compress return spring just enough to
remove or install snap ring.
(18) Using Tool 5059A and an arbor press, com-
press UD clutch piston enough to remove snap ring
(Fig. 243) (Fig. 244).
(19) Remove spring retainer (Fig. 244).
(20) Remove UD clutch piston (Fig. 245).
(21) Remove input hub tapered snap ring (Fig.
246).
(22) Tap on input hub with soft faced hammer and
separate input hub from OD/Reverse piston and
clutch retainer (Fig. 247) (Fig. 248).

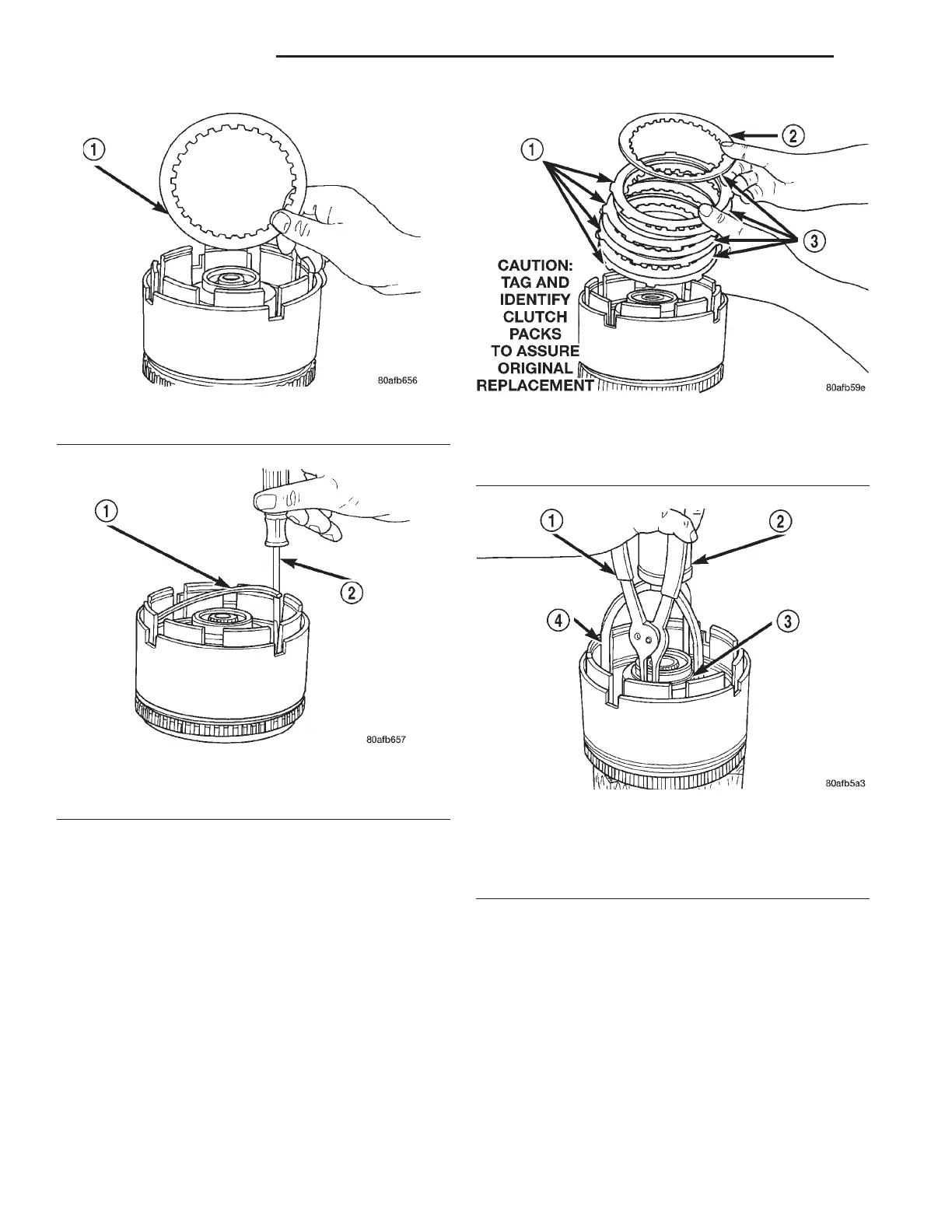

Fig. 240 Remove One UD Clutch Disc
1 – ONE UNDERDRIVE CLUTCH DISC
Fig. 241 UD Clutch Flat Snap Ring
1 – UNDERDRIVE CLUTCH REACTION PLATE FLAT SNAP RING
2 – SCREWDRIVER
Fig. 242 Underdrive Clutch Pack
1 – CLUTCH PLATE
2 – ONE UD CLUTCH DISC
3 – CLUTCH DISC
Fig. 243 UD Spring Retainer Snap Ring
1 – SNAP RING PLIERS
2 – ARBOR PRESS RAM
3 – SNAP RING
4 – SPECIAL TOOL 5059A
21 - 88 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
