(23) Separate clutch retainer from OD/Reverse pis-
ton (Fig. 249).

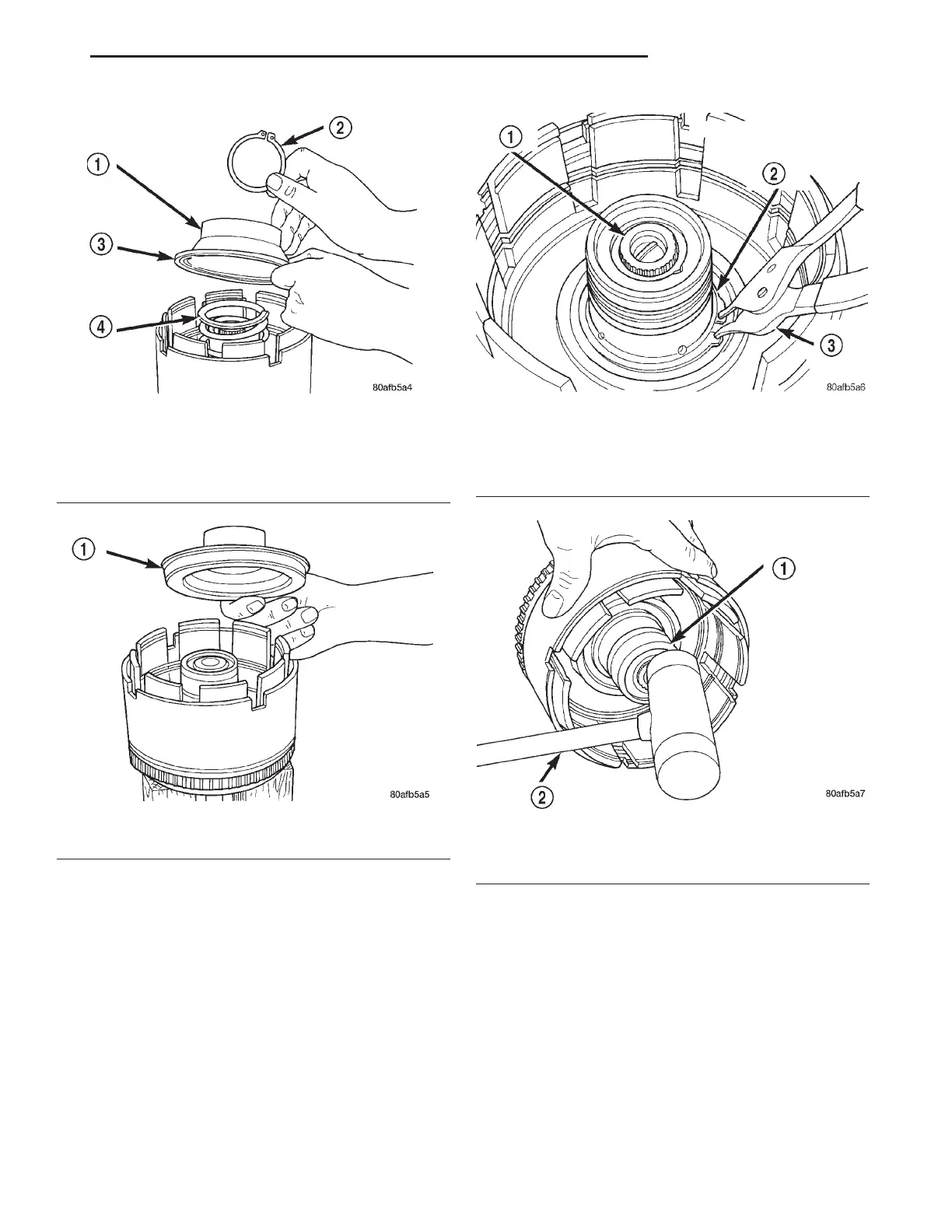

Fig. 244 UD Return Spring and Retainer
1 – UNDERDRIVE SPRING RETAINER
2 – SNAP RING
3 – SEAL
4 – PISTON RETURN SPRING
Fig. 245 Underdrive Clutch Piston
1 – PISTON
Fig. 246 Input Hub Tapered Snap Ring
1 – INPUT SHAFT
2 – INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN
CAVITY)
3 – SNAP RING PLIERS
Fig. 247 Tap on Input Hub
1 – INPUT SHAFT AND HUB ASSEMBLY
2 – PLASTIC HAMMER
LH 42LE TRANSAXLE 21 - 89
DISASSEMBLY AND ASSEMBLY (Continued)
