(24) Using Tool 6057 and an arbor press, compress
return OD/Reverse piston return spring just enough
to remove snap ring (Fig. 250) (Fig. 251).

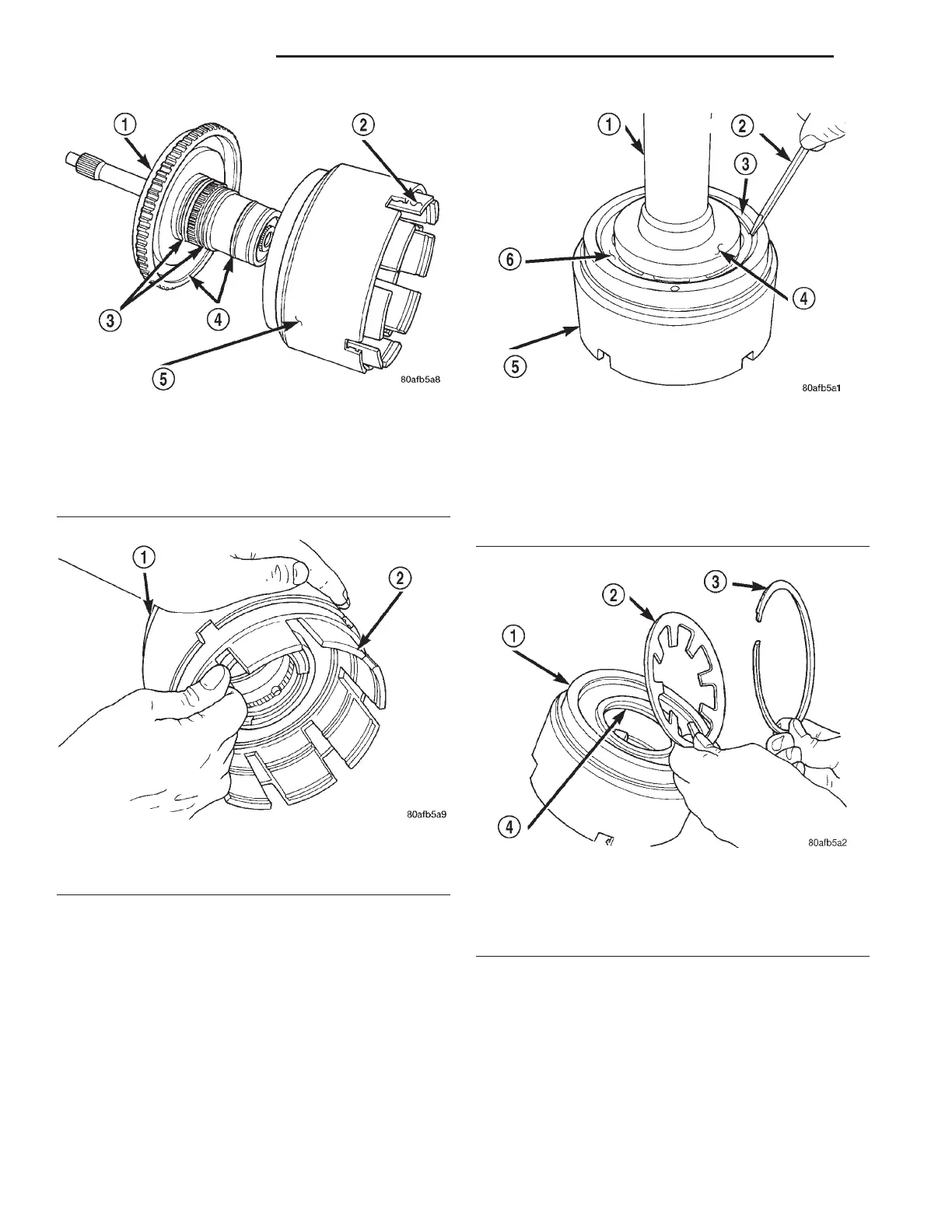

Fig. 248 Input Hub Removed
1 – INPUT SHAFT AND HUB ASSEMBLY
2 – INPUT CLUTCHES RETAINER
3 – O-RING
4 – SEAL
5 – OVERDRIVE/REVERSE PISTON
Fig. 249 Pull Retainer from Piston
1 – OVERDRIVE/REVERSE PISTON
2 – INPUT CLUTCHES RETAINER
Fig. 250 Remove Snap Ring
1 – ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST
ENOUGH TO REMOVE OR INSTALL SNAP RING)
2 – SCREWDRIVER
3 – SNAP RING
4 – SPECIAL TOOL 6057
5 – OD/REVERSE PISTON
6 – RETURN SPRING
Fig. 251 Snap Ring and Return Spring
1 – OD/REVERSE PISTON
2 – RETURN SPRING
3 – SNAP RING
4 – O-RING
