(4) Install the OD/Reverse piston assembly to the
input clutch retainer as shown in (Fig. 258).
NOTE: The OD/UD Reaction Plate, Snap Rings, and
Input Clutches Retainer is not interchangeable with
previous year 41TE components. The snap rings
are thicker and the position of the ring lands have
changed.
(5) Install the input hub/shaft assy. to the OD/Re-
verse piston/clutch retainer assy. (Fig. 259).
(6) Install input hub tapered snap ring (Fig. 260).
(7) Install UD clutch piston (Fig. 261).
(8) Install UD piston return spring and Tool 5067
as shown in (Fig. 262).
(9) Using Tool 5059A and an arbor press, Install
the UD spring retainer and snap ring. (Fig. 263) (Fig.
264) Compress just enough to install snap ring.
CAUTION: Compress return spring just enough to
install snap ring.

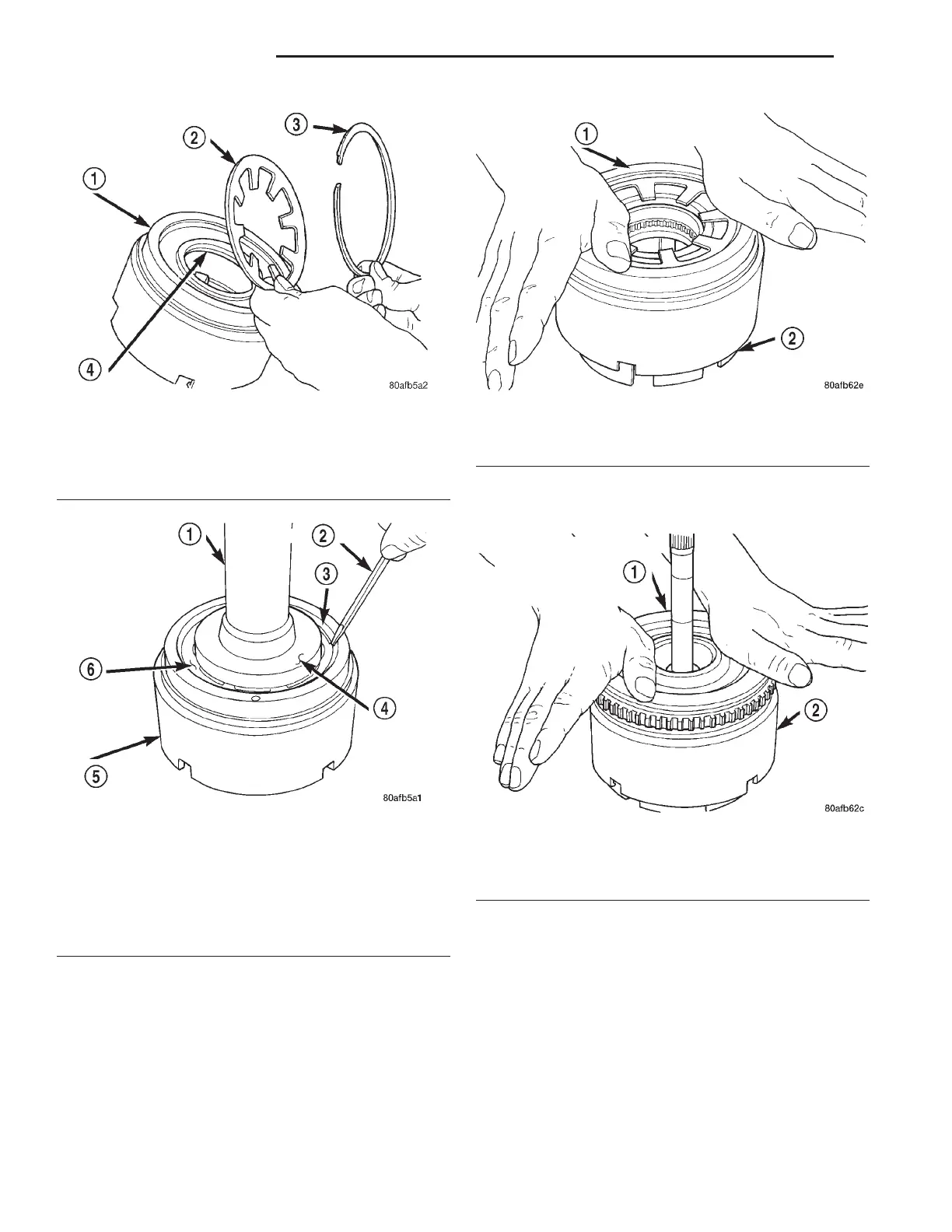

Fig. 256 Return Spring and Snap Ring
1 – OD/REVERSE PISTON
2 – RETURN SPRING
3 – SNAP RING
4 – O-RING
Fig. 257 Install Snap Ring
1 – ARBOR PRESS RAM (COMPRESS RETURN SPRING JUST
ENOUGH TO REMOVE OR INSTALL SNAP RING)
2 – SCREWDRIVER
3 – SNAP RING
4 – SPECIAL TOOL 6057
5 – OD/REVERSE PISTON
6 – RETURN SPRING
Fig. 258 Install OD/Reverse Piston
1 – PUSH DOWN TO INSTALL OVERDRIVE/REVERSE PISTON
2 – INPUT CLUTCHES RETAINER
Fig. 259 Install Input Shaft Hub Assembly
1 – PUSH DOWN TO INSTALL INPUT SHAFT HUB ASSEMBLY
(ROTATE TO ALIGN SPLINES)
2 – OD/REV. PISTON
