(10) Install the UD clutch pack (four fibers/four
steels) (Fig. 265).
(11) Install the UD clutch flat snap ring (Fig. 266).
(12) Install the last UD clutch disc (Fig. 267).

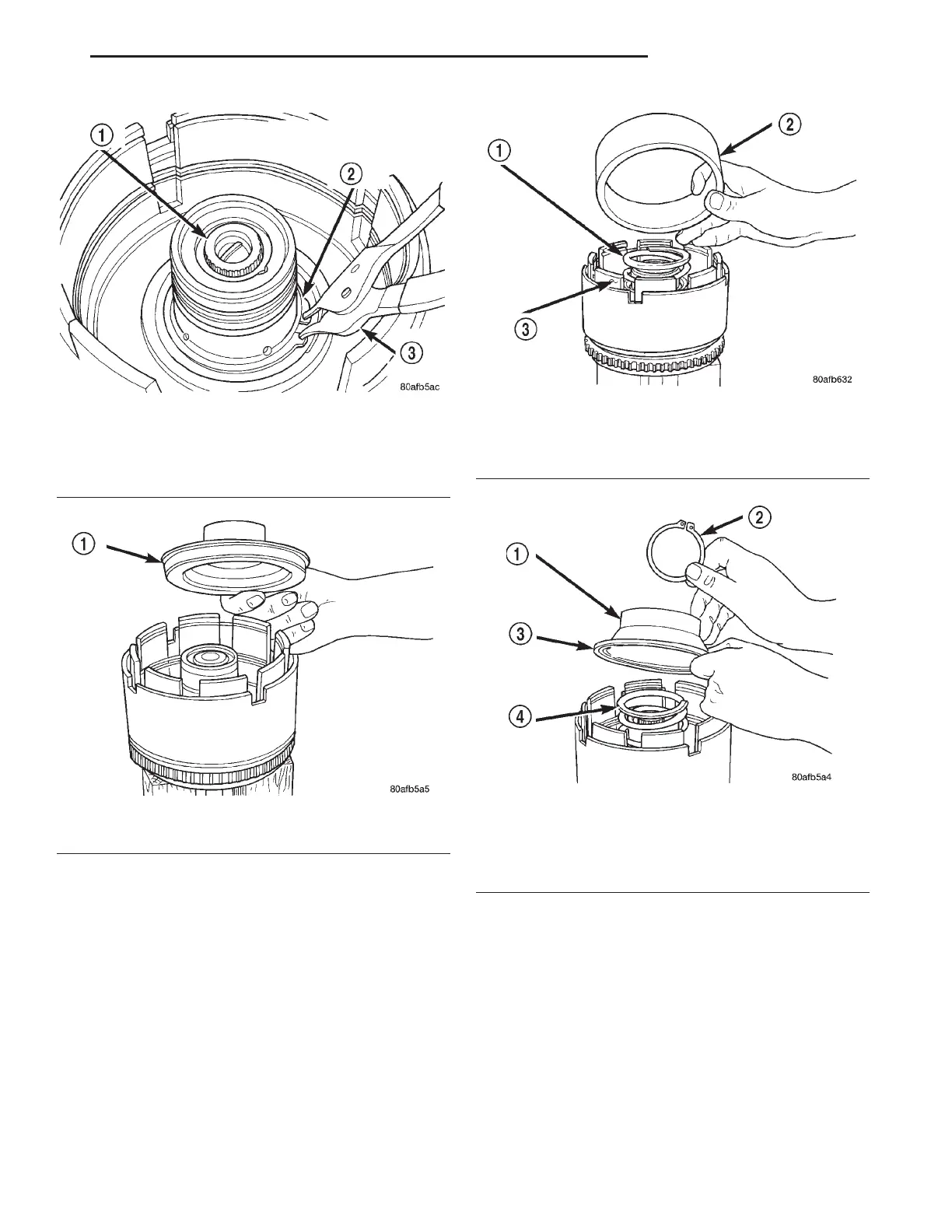

Fig. 260 Install Input Hub Tapered Snap Ring
1 – INPUT SHAFT
2 – INPUT HUB SNAP RING (TAPERED SIDE UP WITH TABS IN
CAVITY)
3 – SNAP RING PLIERS
Fig. 261 Underdrive Clutch Piston
1 – PISTON
Fig. 262 Seal Compressor Special Tool 5067
1 – PISTON RETURN SPRING
2 – SPECIAL TOOL 5067
3 – INPUT SHAFT CLUTCHES RETAINER ASSEMBLY
Fig. 263 UD Return Spring and Retainer
1 – UNDERDRIVE SPRING RETAINER
2 – SNAP RING
3 – SEAL
4 – PISTON RETURN SPRING
LH 42LE TRANSAXLE 21 - 93
DISASSEMBLY AND ASSEMBLY (Continued)
