(13) Install the OD/UD clutch reaction plate and
snap ring (Fig. 268) (Fig. 269). The OD/UD clutches
reaction plate has a step on both sides. Install the
OD/UD clutches reaction plate tapered step side up.

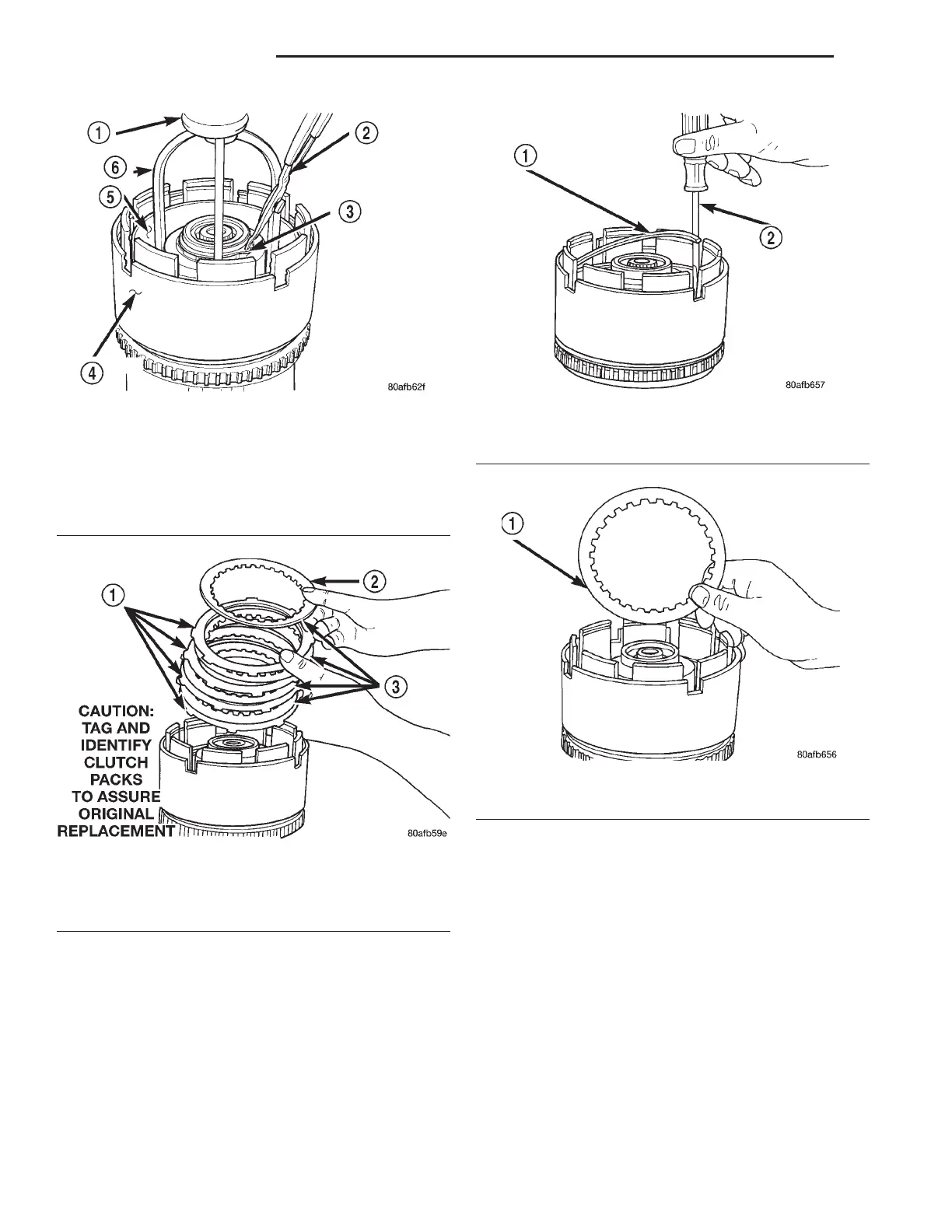

Fig. 264 Install UD Spring Retainer and Snap Ring
1 – ARBOR PRESS RAM
2 – SNAP RING PLIERS
3 – SNAP RING
4 – OD/REVERSE PISTON
5 – TOOL 5067
6 – TOOL 5059A
Fig. 265 Underdrive Clutch Pack
1 – CLUTCH PLATE
2 – ONE UD CLUTCH DISC
3 – CLUTCH DISC
Fig. 266 UD Clutch Flat Snap Ring
1 – UNDERDRIVE CLUTCH REACTION PLATE FLAT SNAP RING
2 – SCREWDRIVER
Fig. 267 Install Last UD Clutch Disc
1 – ONE UNDERDRIVE CLUTCH DISC
21 - 94 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
