(8) The new nut must be staked after the correct
turning torque is obtained (Fig. 310). Use special tool
6639 to stake output shaft nut and special tool 6589
to stake transfer shaft.
When reinstalling main sump baffle apply Mopar
Silicone Sealant as shown in (Fig. 312).
Install main sump baffle to transaxle case (Fig.
313).
CAUTION: When reinstalling drive chains, the blue
link must face outward.
CAUTION: The chain sprockets have a slip fit onto
the shafts. Apply only a slight amount of pressure
to the chain spreader to release the chain pressure.
If chain sprockets are not spread slightly, installa-
tion will be difficult.

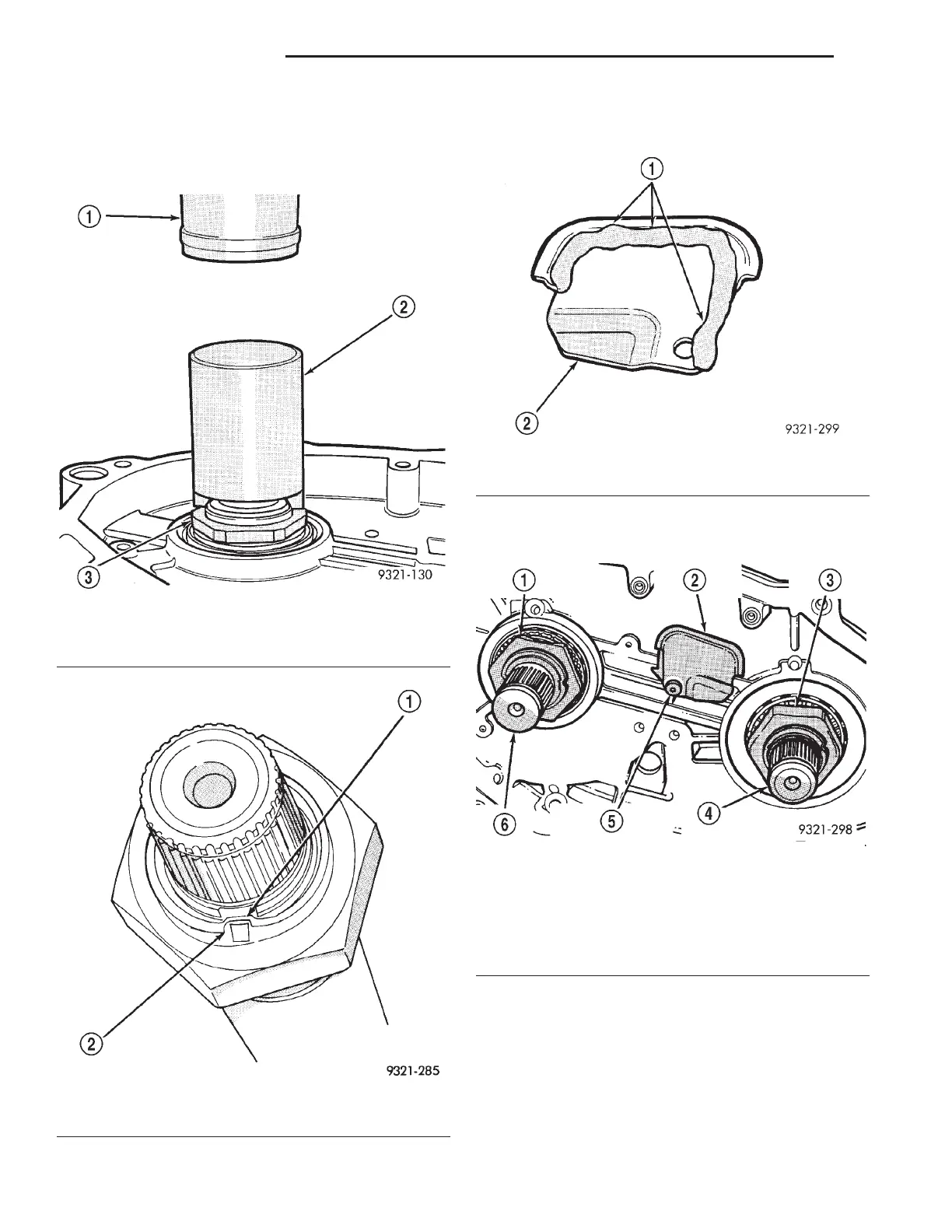

Fig. 310 Staking Output Shaft Nut
1 – ARBOR PRESS
2 – STAKING TOOL
3 – NEW NUT
Fig. 311 Correctly Staked Nut
1 – BOTTOMED IN SLOT
2 – CORRECTLY STAKED NUT
Fig. 312 Correctly Applied Sealant
1 – SEALANT
2 – BACK SIDE OF VENT BAFFLE
Fig. 313 Main Sump Vent Baffle Location
1 – OUTPUT SHAFT NUT
2 – MAIN SUMP VENT BAFFLE
3 – TRANSFER SHAFT NUT
4 – TRANSFER SHAFT
5 – VENT BAFFLE RETAINING SCREW
6 – OUTPUT SHAFT
21 - 106 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
