CAUTION: Be sure to reinstall the chain snubber
and chain oiler when reassembling.

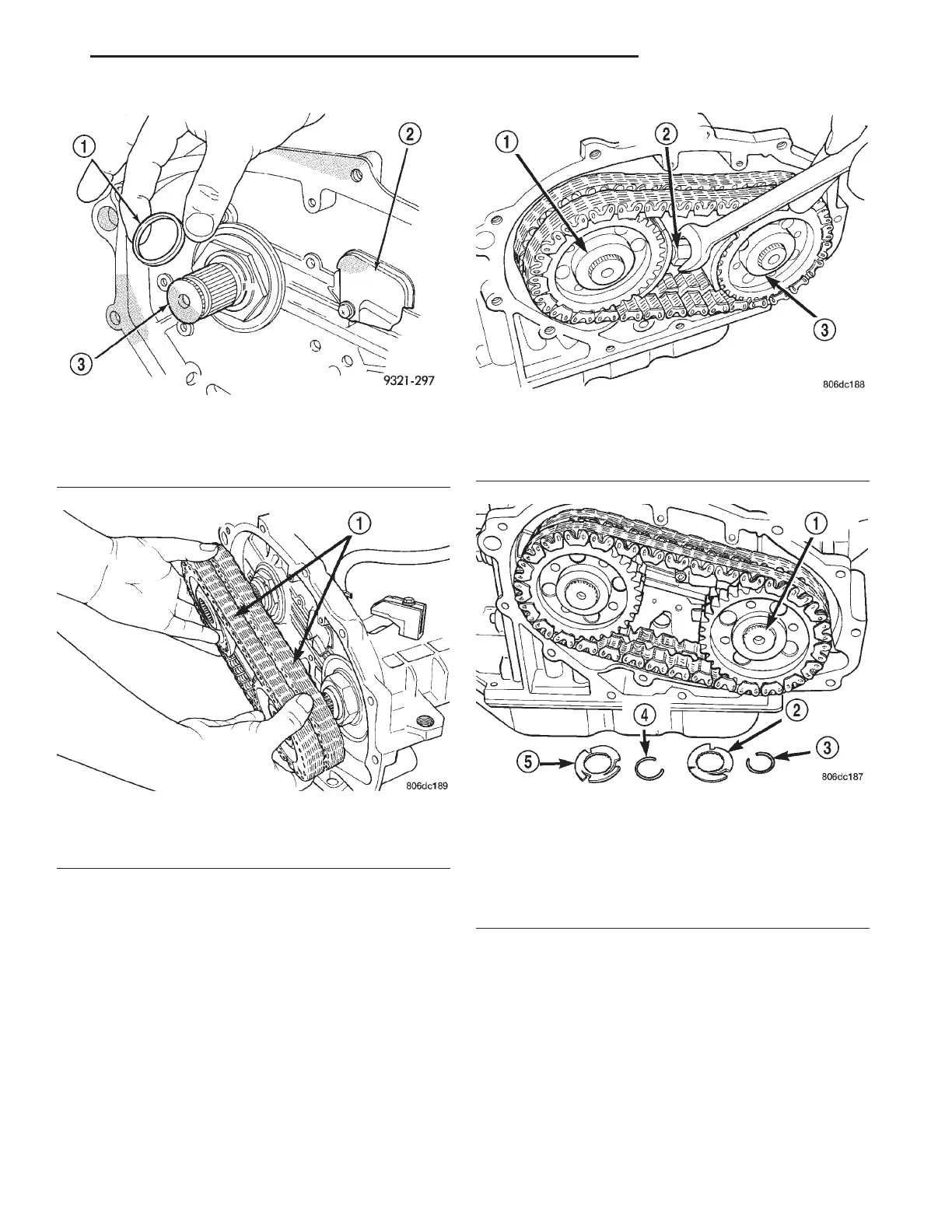

Fig. 314 Output Sprocket Spacer
1 – OUTPUT SPROCKET SPACER
2 – VENT BAFFLE
3 – OUTPUT SHAFT
Fig. 315 Install Chains and Both Sprockets as an
Assembly
1 – CHAINS
Fig. 316 Remove Chain Spreader
1 – OUTPUT SPROCKET
2 – SPECIAL TOOL 6550
3 – TRANSFER SPROCKET
Fig. 317 Install Transfer Shaft Sprocket Snap Ring
and Wave Washer
1 – TRANSFER SHAFT
2 – WAVE WASHER
3 – SNAP RING
4 – SNAP RING
5 – WAVE WASHER
LH 42LE TRANSAXLE 21 - 107
DISASSEMBLY AND ASSEMBLY (Continued)
