Set up and measure endplay using End Play Set
8266 and Dial Indicator Set C3339 as shown in (Fig.
343).
NOTE: Input shaft end play must be.005 to.025
inch.
For example, if end play reading is.055 inch, select
No. 4 Thrust Plate which is.071 to.074 thick. This
should provide an input shaft end play reading of.020
inch which is within specifications.
See chart to select the proper No. 4 thrust plate.
Reinstall the input clutches assembly with the
selected thrust plate.

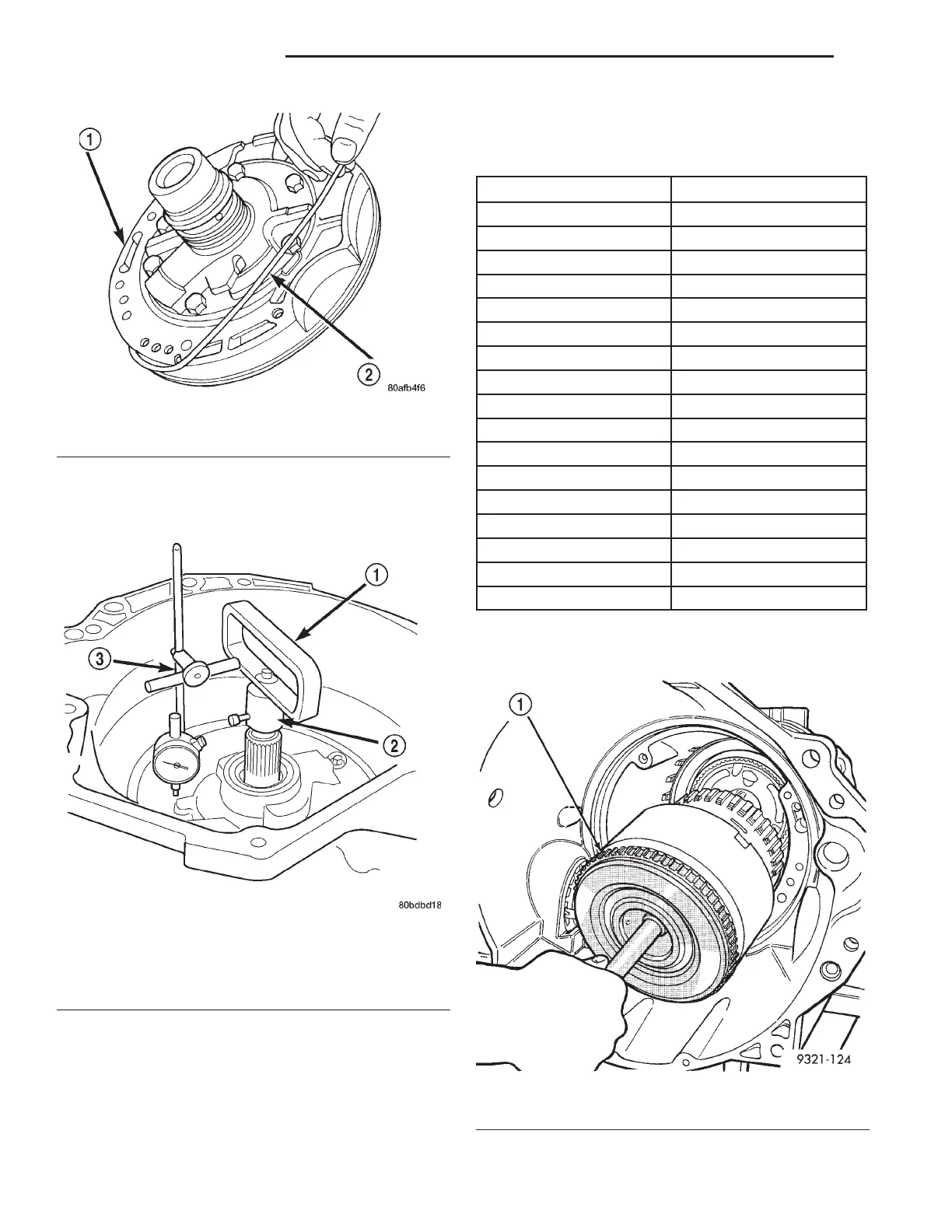

Fig. 342 Remove Oil Pump O-Ring
1 – OIL PUMP ASSEMBLY
2 – O-RING
Fig. 343 Measure Input Shaft End Play using End
Play Set 8266
1 – TOOL 8266–8
2 – TOOL 8266–2
3 – TOOL C-3339
NO. 4 THRUST PLATE CHART
PART NUMBER THICKNESS
4431662 .91mm (.036 in.)
4431663 1.14mm (.045 in.)
4431664 1.37mm (.054 in.)
4431665 1.60mm (.063 in.)
3836237 1.73mm (.068 in.)
4431666 1.80mm (.071 in.)
3836238 1.96mm (.077 in.)
4431667 2.03mm (.080 in.)
3836239 2.16mm (.085 in.)
4431668 2.24mm (.088 in.)
3836240 2.39mm (.094 in.)
4431669 2.46mm (.097 in.)
3836241 2.62mm (.103 in.)
4446670 2.67mm (.105 in.)
4446671 2.90mm (.114 in.)
4446672 3.15mm (.124 in.)
4446601 3.38mm (.133 in.)
Fig. 344 Install Input Clutch Assembly
1 – INPUT CLUTCH ASSEMBLY
21 - 114 42LE TRANSAXLE LH
