CAUTION: By-pass valve must be replaced if trans-
mission failure occurs.
NOTE: To align oil pump during installation, use
threaded dowels or phillips screwdrivers.

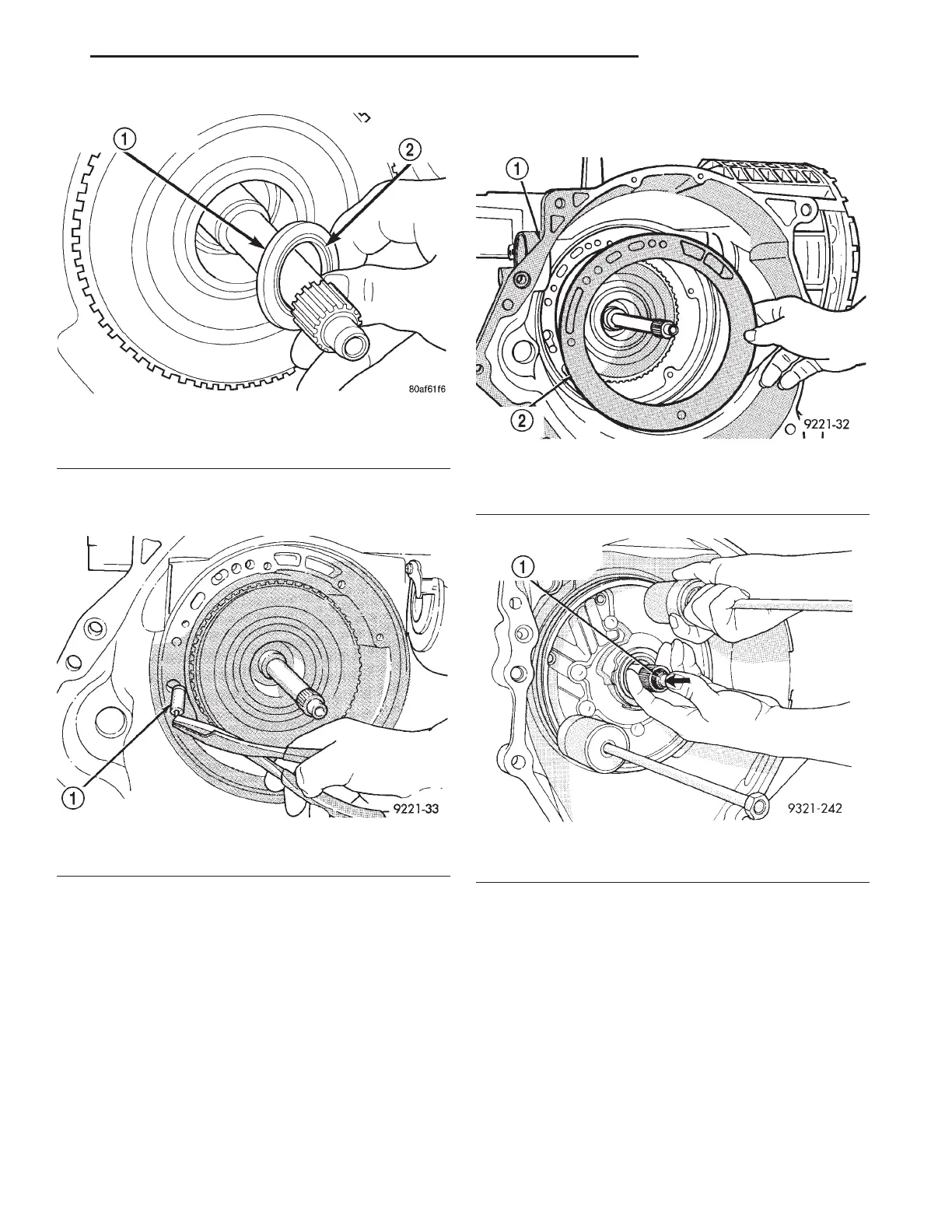

Fig. 345 Install Caged Needle Bearing
1 – #1 CAGED NEEDLE BEARING
2 – NOTE: TANGED SIDE OUT
Fig. 346 Install By-Pass Valve
1 – BY-PASS VALVE
Fig. 347 Install Oil Pump Gasket
1 – BELL HOUSING
2 – OIL PUMP GASKET
Fig. 348 Install Oil Pump
1 – “PUSH IN” ON INPUT SHAFT WHILE REMOVING PUMP
LH 42LE TRANSAXLE 21 - 115
DISASSEMBLY AND ASSEMBLY (Continued)
