(3) Install new front bearing (actual bearing to be
used during reassembly) onto gauge disc (special tool
6549-3) (Fig. 391).
(4) Install gauge disc and bearing into case using
gauge disc rod Tool 6549-4 (Fig. 392).
(5) Install centering disc (special tool 6494-2) onto
gauge disc rod (Fig. 393).
(6) Install centering nut Tool 6549-5 as shown in
(Fig. 394).
(7) Hand tighten centering nut until all play in the
tool has been removed.

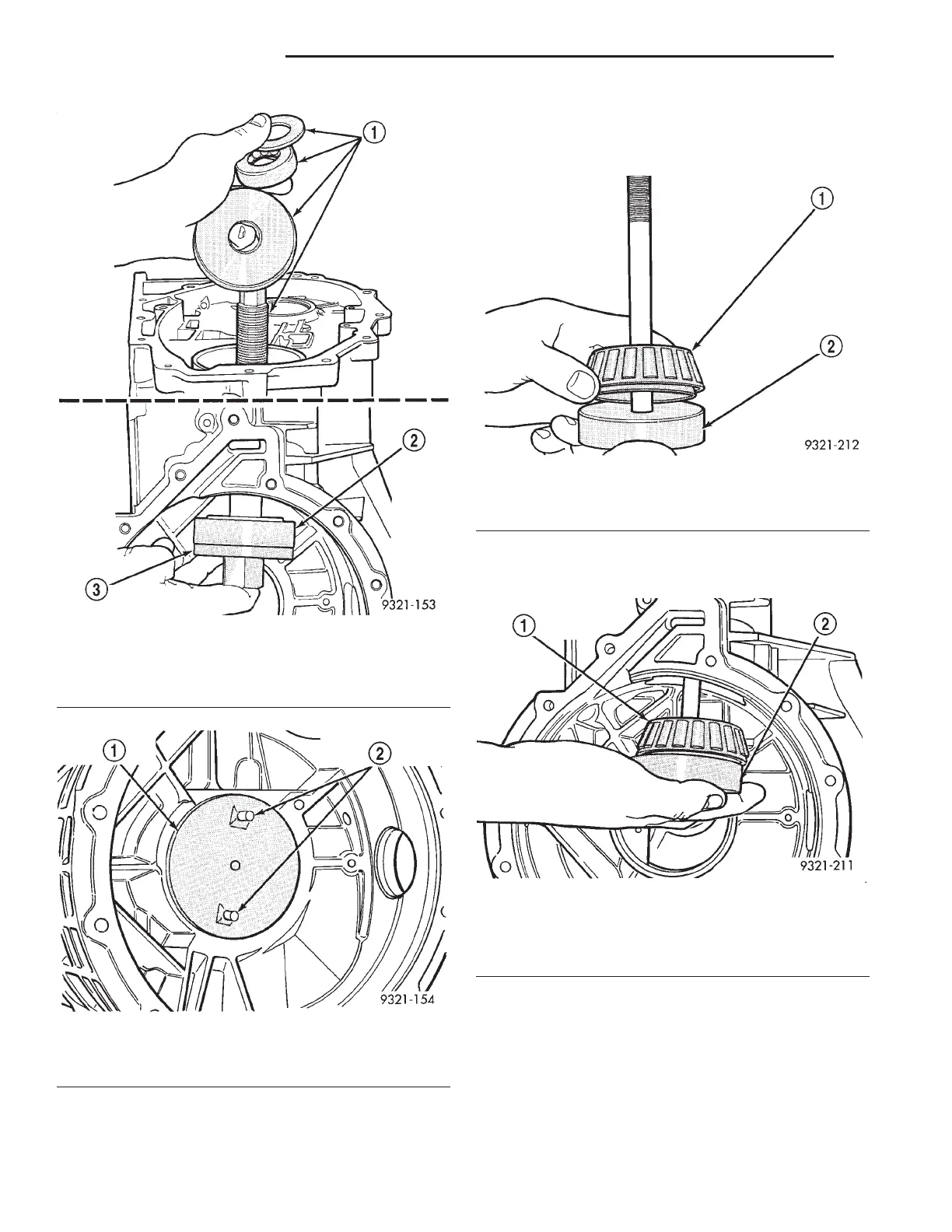

Fig. 389 Install Front Transfer Shaft Cup
1 – SPECIAL TOOL 6494
2 – BEARING CUP
3 – SPECIAL TOOL 6494
Fig. 390 Installing Centering Block
1 – SPECIAL TOOL 6549–2
2 – TOOL INSTALLATION AND REMOVAL PEGS
Fig. 391 Gauge Disc and Bearing
1 – FRONT TRANSFER SHAFT BEARING
2 – SPECIAL TOOL 6549–3
Fig. 392 Installing Gauge Disc with Front Transfer
Shaft Bearing
1 – FRONT TRANSFER SHAFT BEARING
2 – SPECIAL TOOL 6549–3
21 - 126 42LE TRANSAXLE LH
DISASSEMBLY AND ASSEMBLY (Continued)
