(39) Install rear transfer shaft cup into case (Fig.
417).
CAUTION: Properly seated cups are essential in
correctly setting bearing preload.
(40) Use special tool 6560 to press cup into case
(Fig. 418).

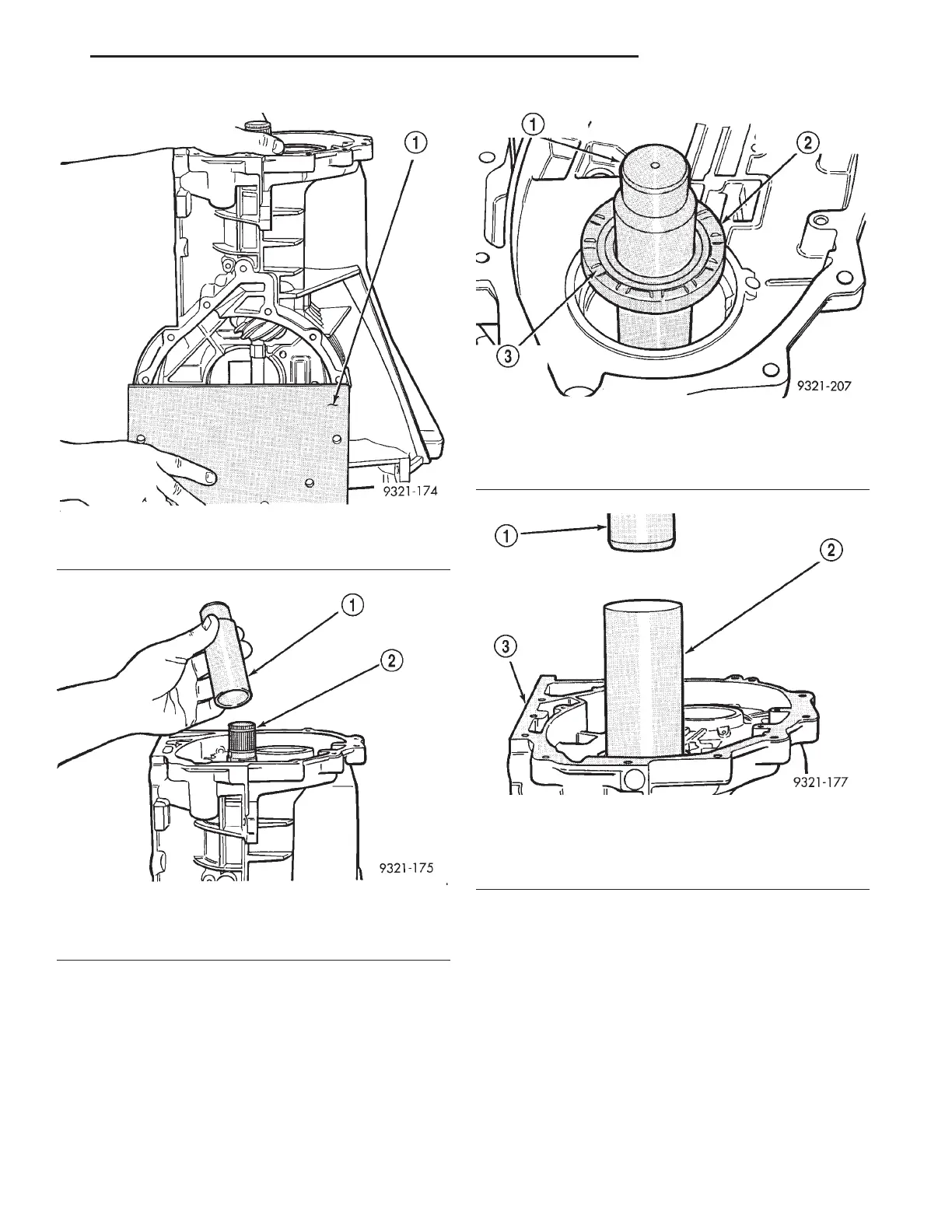

Fig. 412 Transfer Shaft Support Fixture
1 – SUPPORT FIXTURE (6595)
Fig. 413 Seal Protector Installation
1 – SEAL PROTECTOR
2 – TRANSFER SHAFT
Fig. 414 Correct Seal Orientation
1 – SEAL PROTECTOR
2 – FRONT TRANSFER SHAFT SEAL
3 – SERRATED SIDE REARWARD
Fig. 415 Seal Installation
1 – ARBOR PRESS
2 – SEAL INSTALLER (6567A)
3 – TRANSAXLE CASE
LH 42LE TRANSAXLE 21 - 133
DISASSEMBLY AND ASSEMBLY (Continued)
