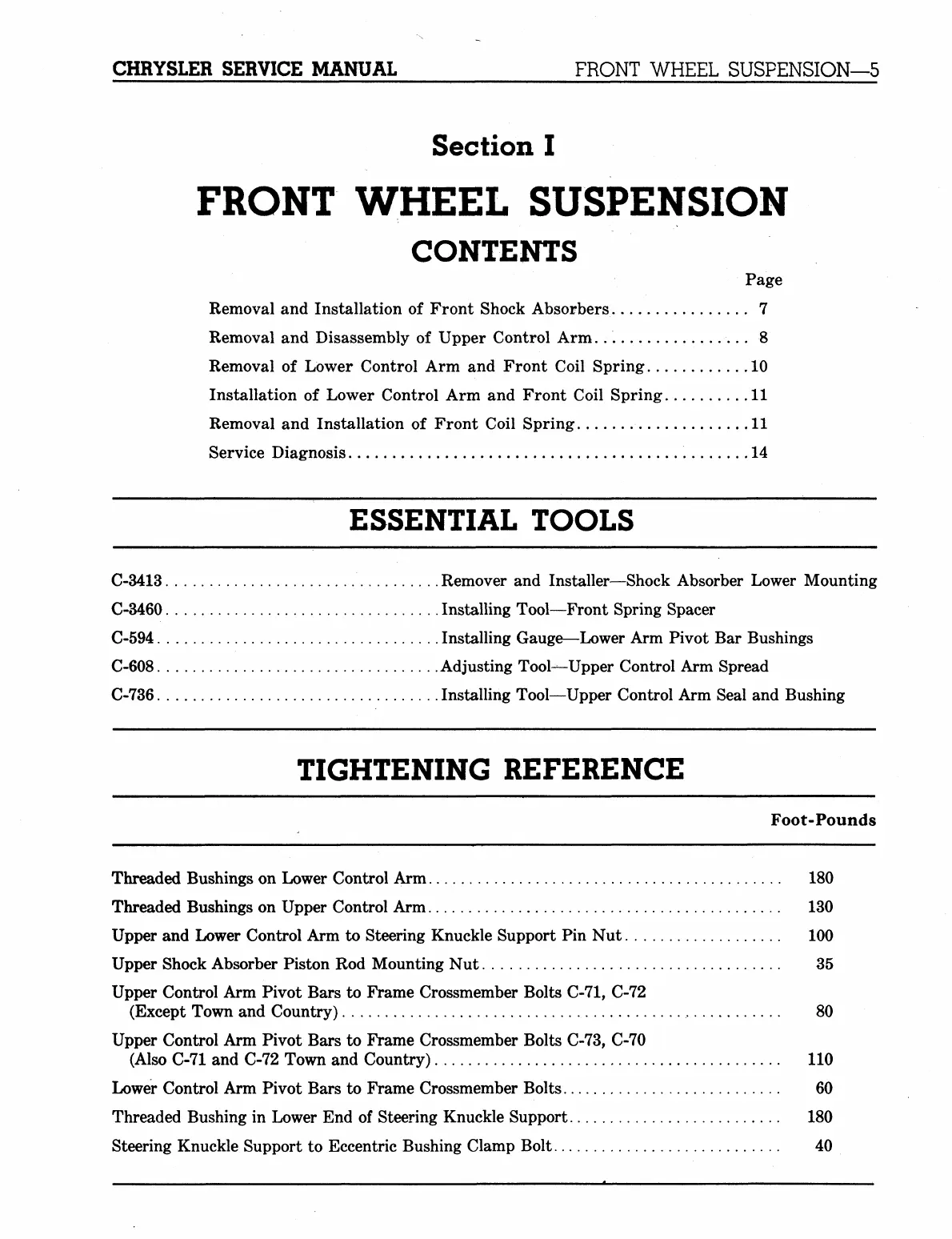

CHRYSLER SERVICE MANUAL
FRONT WHEEL SUSPENSION—5
Section
I
FRONT WHEEL SUSPENSION
CONTENTS
Page
Removal and Installation of Front Shock Absorbers 7
Removal and Disassembly of Upper Control Arm. 8
Removal of Lower Control Arm and Front Coil Spring 10
Installation of Lower Control Arm and Front Coil Spring 11
Removal and Installation of Front Coil Spring 11
Service Diagnosis 14
ESSENTIAL TOOLS
C-3413 Remover
and
Installer—Shock Absorber Lower Mounting
C-3460 Installing Tool—Front Spring Spacer
C-594 Installing Gauge—Lower
Arm
Pivot
Bar
Bushings
C-608 Adjusting Tool—Upper Control
Arm
Spread
C-736 Installing Tool—Upper Control
Arm
Seal
and
Bushing
TIGHTENING REFERENCE
Foot-Pounds
Threaded Bushings
on
Lower Control
Arm 180
Threaded Bushings
on
Upper Control
Arm 130
Upper and Lower Control
Arm to
Steering Knuckle Support
Pin Nut 100
Upper Shock Absorber Piston
Rod
Mounting
Nut 35
Upper Control
Arm
Pivot Bars
to
Frame Crossmember Bolts C-71,
C-72
(Except Town
and
Country)
80
Upper Control
Arm
Pivot Bars
to
Frame Crossmember Bolts C-73,
C-70
(Also C-71
and C-72
Town
and
Country)
110
Lower Control
Arm
Pivot Bars
to
Frame Crossmember Bolts
60
Threaded Bushing
in
Lower
End of
Steering Knuckle Support
180
Steering Knuckle Support
to
Eccentric Bushing Clamp Bolt
40
