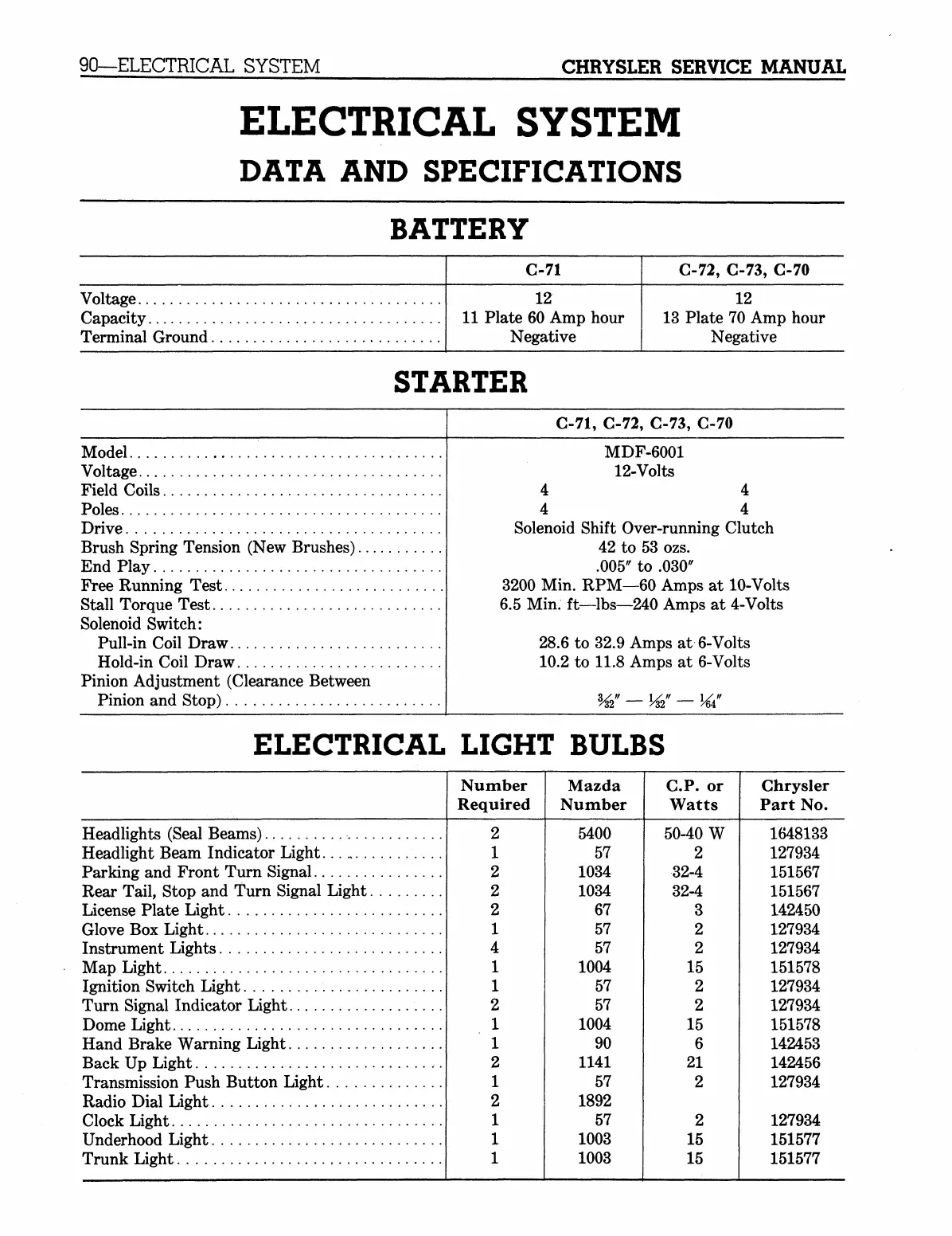

90—ELECTRICAL SYSTEM
CHRYSLER SERVICE MANUAL
ELECTRICAL SYSTEM
DATA
AND
SPECIFICATIONS
Voltage
Capacity
Terminal Ground
BATTERY
C-71
12
11 Plate 60 Amp
Negative
STARTER
C-71
hour
, C-72
C-72, C-73, C-70
12
13 Plate 70 Amp hour
Negative
C-73,
C-70
Model
Voltage
Field Coils
Poles
Drive
Brush Spring Tension (New Brushes)..
End Play
Free Running Test
Stall Torque Test
Solenoid Switch:
Pull-in Coil Draw
Hold-in Coil Draw
Pinion Adjustment (Clearance Between
Pinion and Stop)
MDF-6001
12-Volts
4 4
4 4
Solenoid Shift Over-running Clutch
42 to 53 ozs.
.005"
to .030"
3200 Min. RPM—60 Amps at 10-Volts
6.5 Min. ft—lbs—240 Amps at 4-Volts
28.6 to 32.9 Amps at 6-Volts
10.2 to 11.8 Amps at 6-Volts
ELECTRICAL LIGHT BULBS
Number
Required
Mazda
Number
C.P. or
Watts
Chrysler
Part No.
Headlights (Seal Beams)
Headlight Beam Indicator Light
Parking and Front Turn Signal
Rear Tail, Stop and Turn Signal Light
License Plate Light
Glove Box Light
Instrument Lights
Map Light
Ignition Switch Light ..
Turn Signal Indicator Light
Dome Light
Hand Brake Warning Light
Back Up Light
Transmission Push Button Light
Radio Dial Light
Clock Light
Underhood Light
Trunk Light
5400
57
1034
1034
67
57
57
1004
57
57
1004
90
1141
57
1892
57
1003
1003
50-40
W
2
32-4
32-4
3
2
2
15
2
2
15
6
21
2
2
15
15
1648133
127934
151567
151567
142450
127934
127934
151578
127934
127934
151578
142453
142456
127934
127934
151577
151577
