Exploded view & dismantling sequence of parts
- 22 -
VII. Exploded view and dismantling sequence of auxiliary electric heating box of FRD95
and FRD125/S

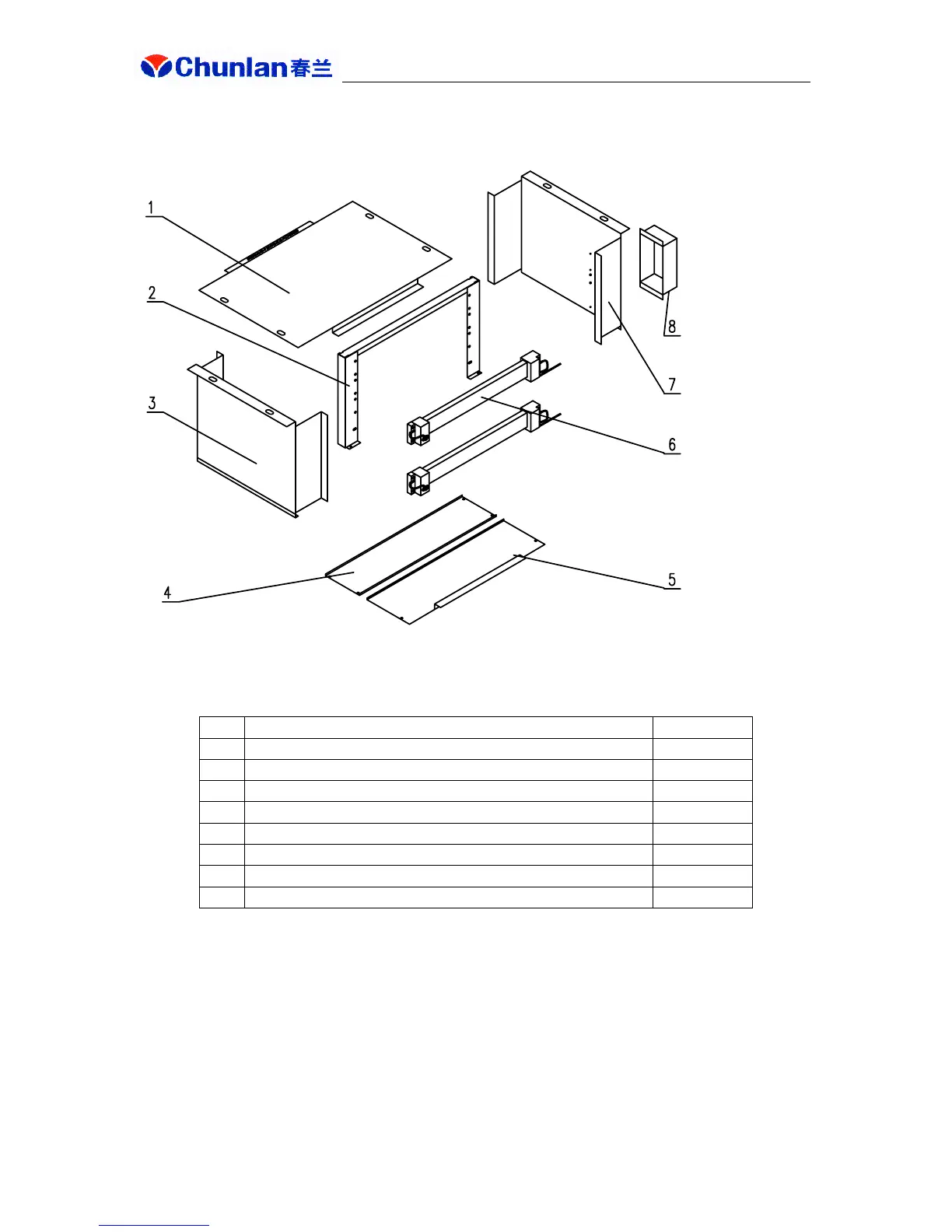

Exploded view of auxiliary electric heating box of FRD95 and FRD125/S
Exploded view schedule of auxiliary electric heating box of FRD95 and FRD125/S
No. Description Remark
1 Top plate
2 Frame assembly
3 Left side plate assembly
4 Bottom plate assembly II
5 Bottom plate assembly I
6 PTC electric heater
7 Right side plate assembly
8 Cover plate
Dismantling sequence of aux. electric heating box PTC of FRD95 and FRD125/S
(1) Remove electric box cover 8 and remove PTC electric heating wire
(2) Remove bottom plate assembly I (part 5)
(3) Remove side frame assembly 3
(4) Remove PTC electric heating wire
