Installation
- 73 -

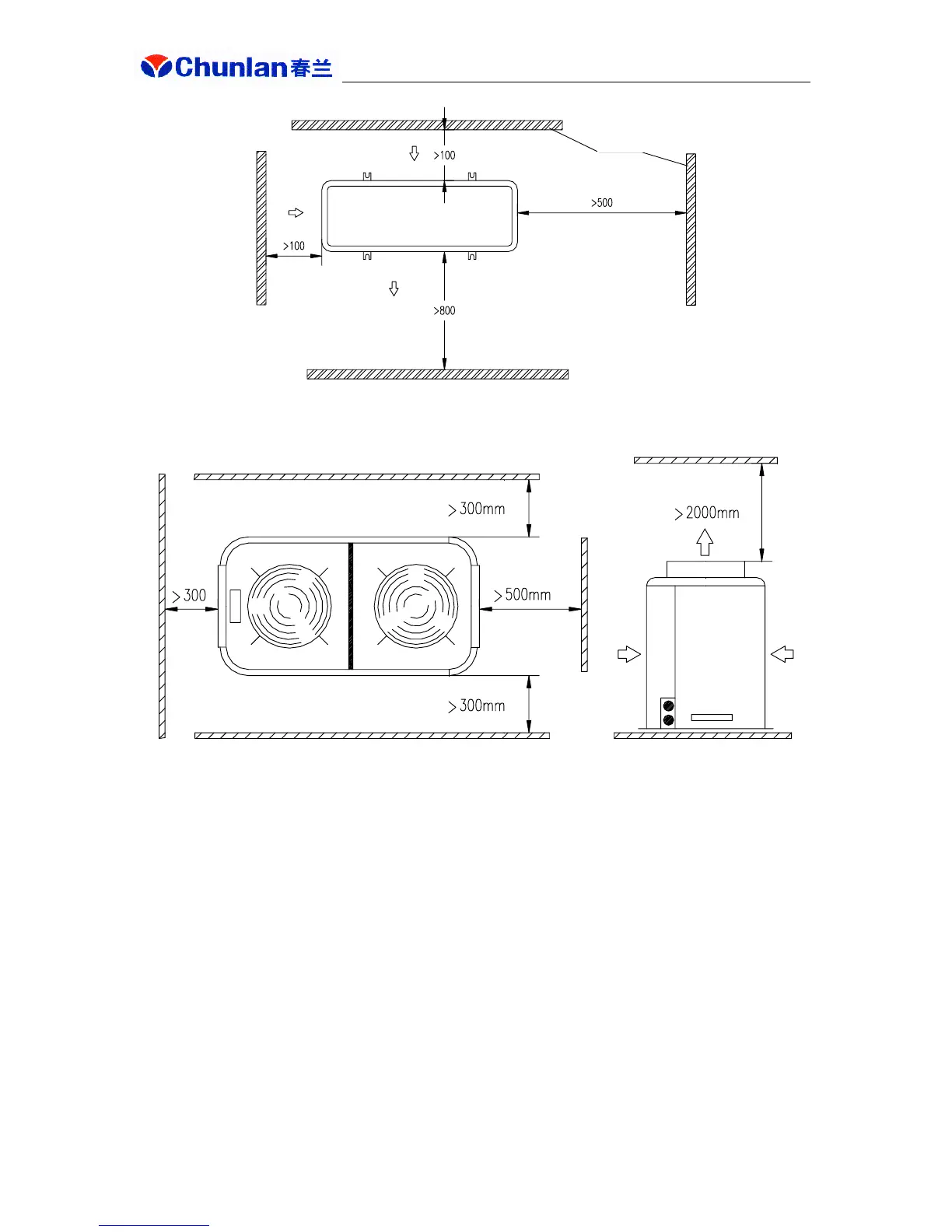

Space normally required by installation of outdoor unit (based on FR(D)125/S)
Space required for FR(D)260/S outdoor unit installation
2. Installation of outdoor unit
⑴ To avoid center of gravity offset and protect compressor, never tilt the machine by more
than 45 degrees during transportation;
⑵ Use M12 bolts to fix machine chassis. Fixing shall be firm and reliable, and damping
measures shall be taken when necessary. Refer to figure below.
Obstacle or wall
Maintenance s
