Installation
- 66 -
Chapter VIII Installation
Installation of air duct type air conditioners must be carried out by qualified personnel.

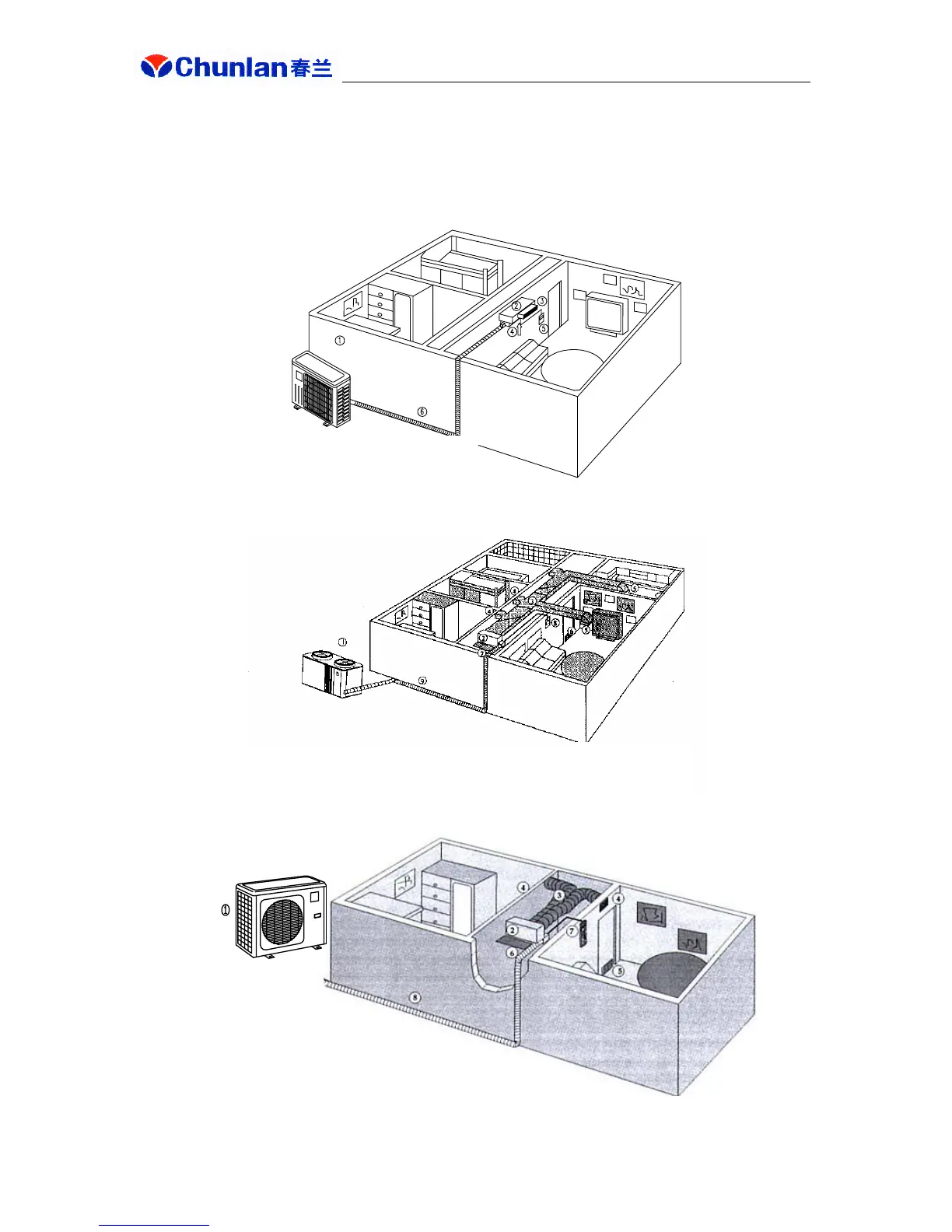

I. Installation schematic
Low static pressure air duct air conditioner installation schematic (based on FRD35-B)
High static pressure air duct air conditioner installation schematic (based on FR260/S)
① Outdoor unit ② Indoor unit
③ Air delivery pipeline ④ Air delivery port
⑤ Branch air return port ⑥ Air return port
⑦ Wire controller ⑧ Connecting pipeline
Medium static pressure air duct air conditioner installation schematic
(1) Outdoor unit; (2) Indoor unit;
(3) Air exhaust grating; (4) Air return grating;
(5) Wire controller; (6) Connecting pipeline
(1) Outdoor unit; (2) Indoor unit; (3) Air delivery pipe; (4) Air delivery branch pipe;
(5) Air delivery port; (6) Branch air return port; (7) Air return port; (8) Controller
(9) Connecting pipeline
