cias SIOUX PRO 2 - Page 46

© CIAS Elettronica S.r.l. Ed 1.1
Installation Manual Page 46 of 51 Sioux Pro 2

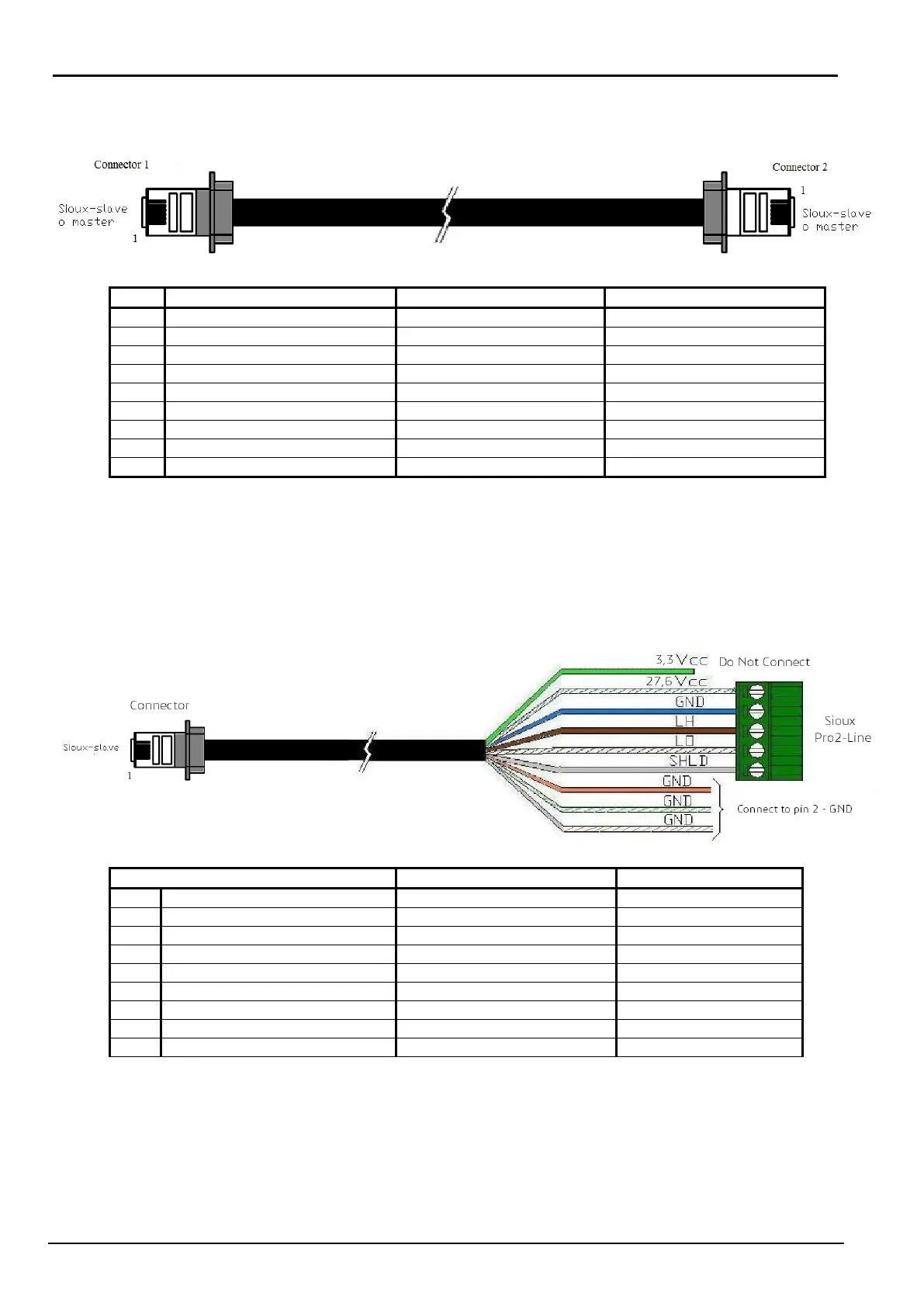

- Connection cable between two Sioux-Slave-Pro2 or between a Sioux-Master-Pro2 and a
Sioux-Slave-Pro2
Pin
Connector signals
Wires Colour Connector 1
Wires Colour Connector 2
1
Signal from Slave-Pro2 sensor
White/Orange
White/Orange
2
Signal from Slave-Pro2 sensor
Orange
Orange
3
Signal from Slave-Pro2 sensor
White/Green
White/Green
4
GND
Blue
Blue
5
Power supply 27,6 Vcc
White/Blue
White/Blue
6
Power supply 3.3 Vcc
Green
Green
7
RS485 - Low Line LO
White/Brown
White/Brown
8
RS485 - High Line LH
Brown
Brown
Shield
Shield
Shield
- Connection cable between serial lines (LINE1 or LINE2) of the Sioux-CU-Pro2 and first Sioux-
Slave-Pro2 (using SiouxPro2-Line)
REMARK: Using only precabled cable, check that colors correspond to numbering of
RJ45 connector’s pin
Pin RJ45 Sioux-Slave-Pro2
Terminal Block Function
Terminal
1
White/Orange
GND
2
2
Orange
GND
2
3
White/Green
GND
2
4
Blue
GND
2
5
White/Blue
Power Supply 27,6 Vcc
1
6
Green
Power Supply 3,3 Vcc
Do not connect
7
White/Brown
RS485 - Low Line LO
4
8
Brown
RS485 - High Line LH
3
Shield
Shield
5
REMARKS Connect wires:
- 1, 2, 3, 4 to terminal 2 (GND) of the SiouxPro2-Line terminal block
- 5 to terminal 1 (27,6 Vcc) of the SiouxPro2-Line terminal block
- 6, do not connect
