cias SIOUX PRO 2 - Page 47

© CIAS Elettronica S.r.l. Ed 1.1
Installation Manual Page 47 of 51 Sioux Pro 2

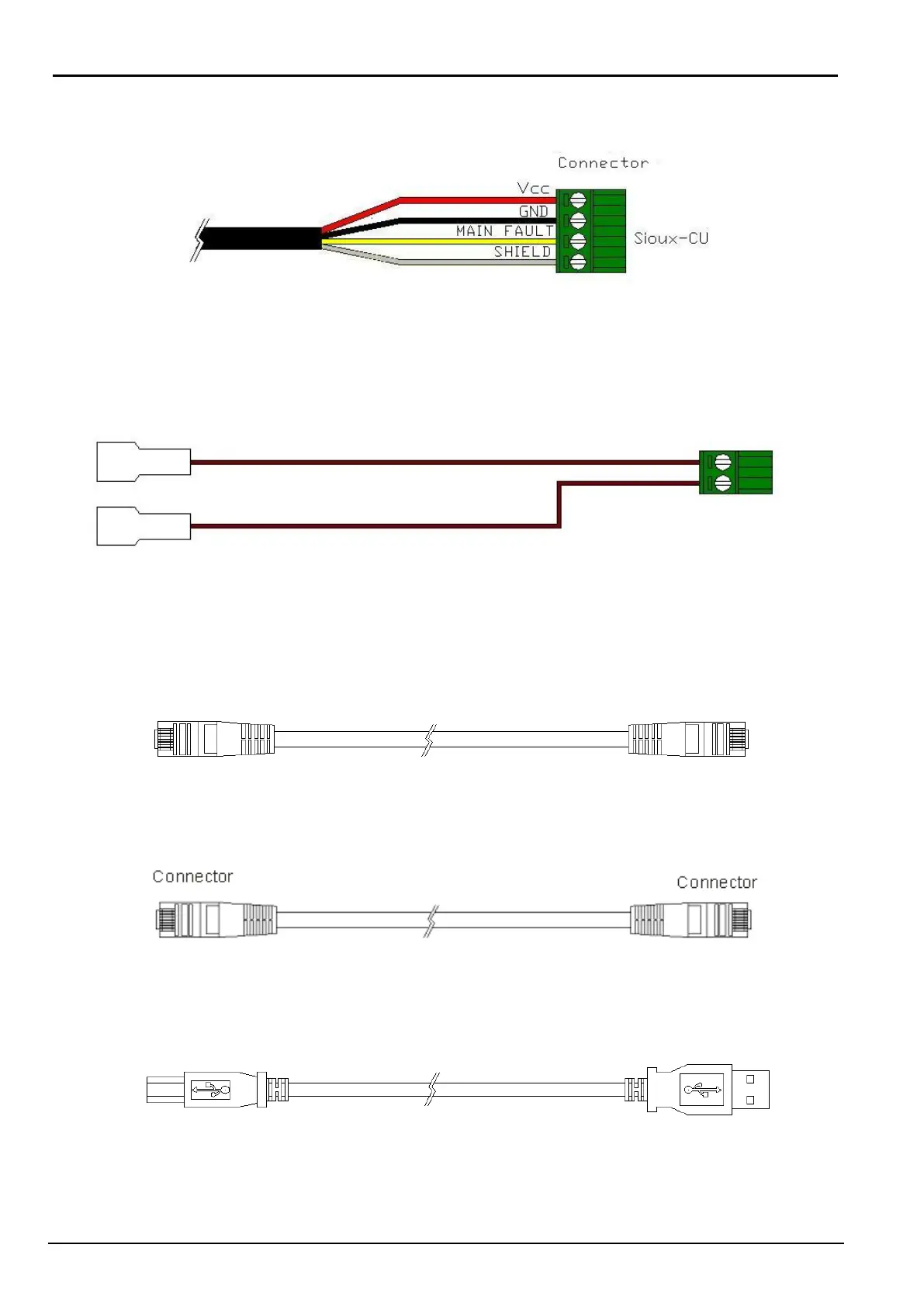

- Power and battery connections
- Tamper cable
- Ethernet connection cable
Connector
Ethernet
Connector
Connector
Ethernet
Connector
- Cross Cable model EL EIA/TIA568A/B (8pin)
- USB cable
USB
Connector
Type B
USB
Connector
Type A
