When the Sioux-CU-Pro2 must be located at long distance away from sensors, it is necessary to
use a distribution box to which the two sensor branches are connected, together with a cable
(lead cable, one for every branch), which carries the signals and power to/from the Sioux-CU-
Pro2.

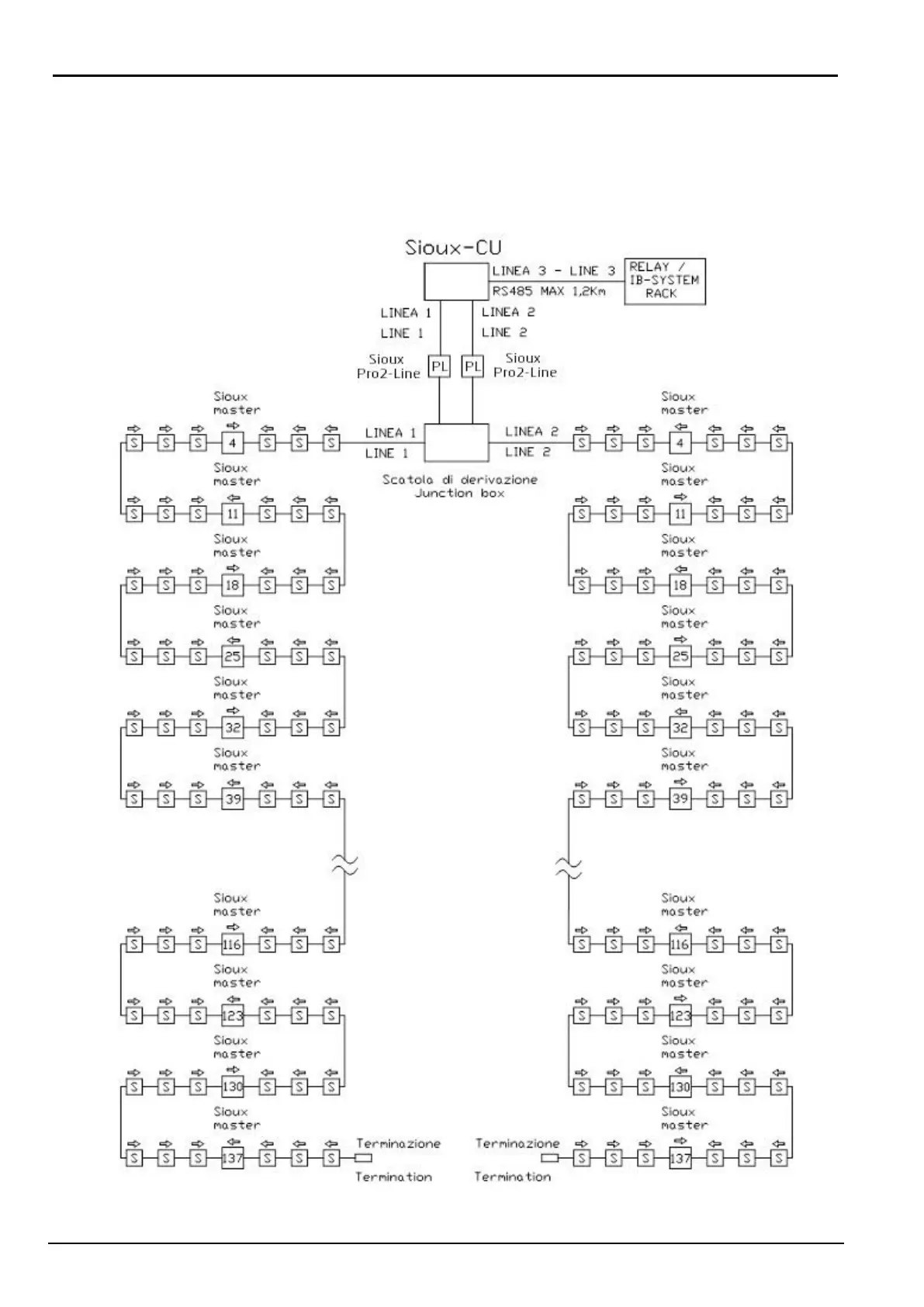

The figure below shows the related block diagram.
