Nothing should obstruct
the free flow of air over the air-cooled heat
exchanger
(suction and discharge)
.
Protect from prevailing winds

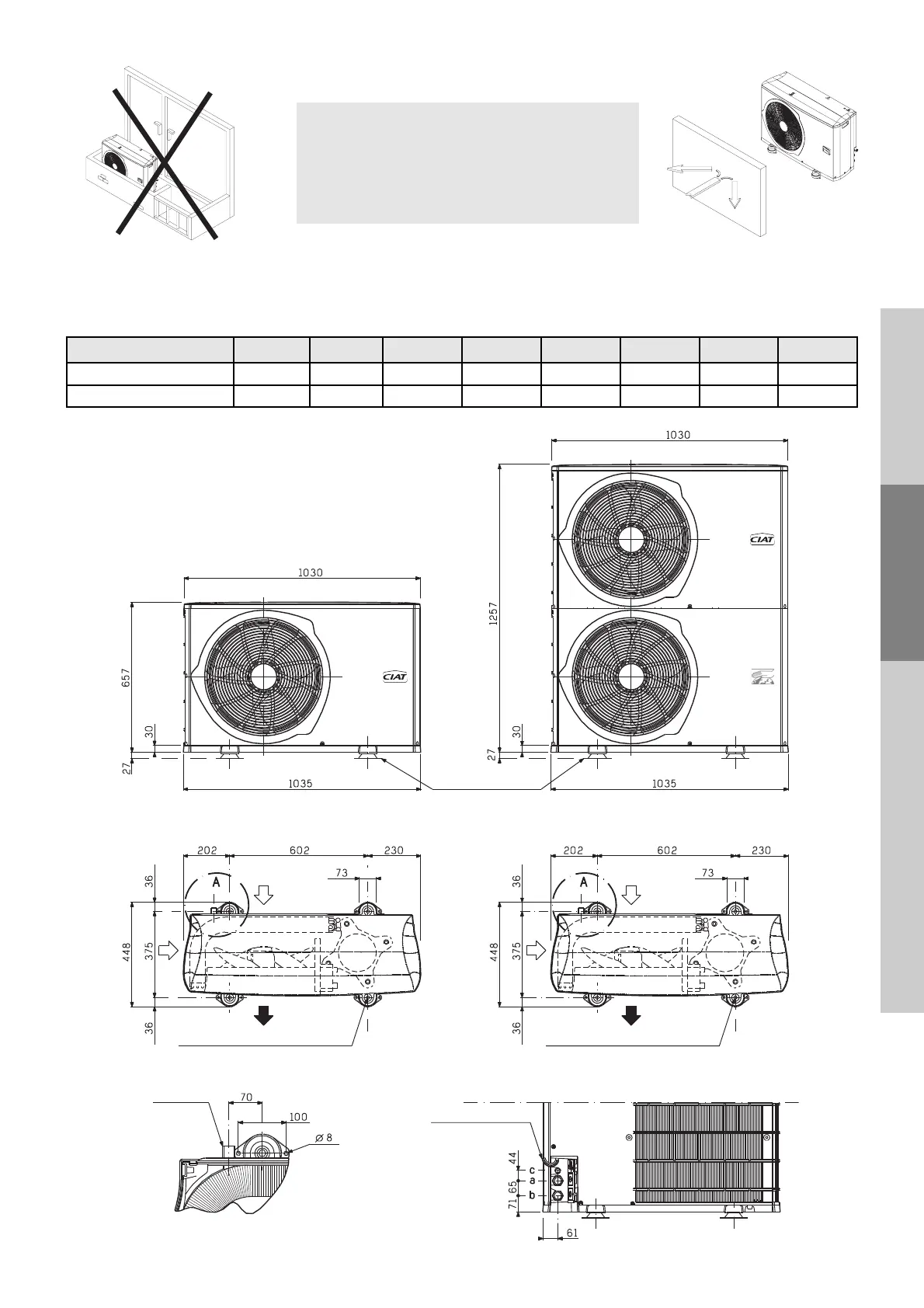

2-1-3 Weight and handling
Now that you have chosen a location for your unit, you may begin installing it. Bear in mind the weight and dimensions given in
this section.
Caution: raise the unit carefully and keep it vertical.
Model 20 / 20 H 28 / 28 H 35 / 35H 35T / 35HT 50H 50T / 50HT 65T / 65HT 75T / 75HT
Weight without charge (kg) 73 79 82 82 120 120 139 142
Weight with charge (kg) 82 88 91 91 135 135 150 153
OPTION: Anti-vibration
mounts
Electrical
power supply
4 mounting points (M8 screws)
4 mounting points (M8 screws)
REAR VIEW
dia. 25 mm
tube
DETAIL A
2-1-4 Dimensions
MODELS: 20 / 28 / 35 MODELS: 50 / 65 / 75
