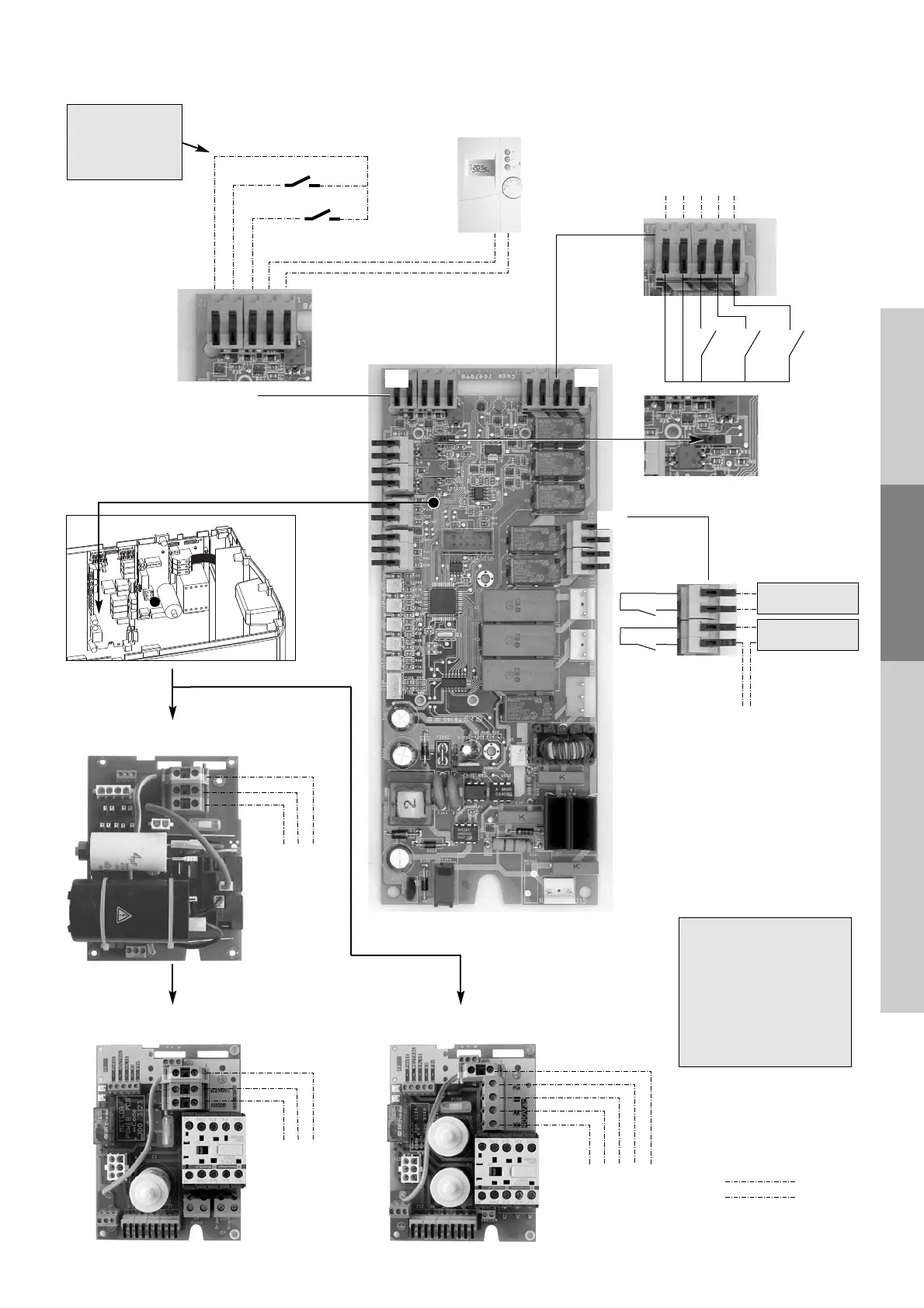

Connections to be made before commissioning the unit
Control
terminal
TERMINAL
BLOCK J2
Frost protection or Heating/Cooling
Bypass
Common
In bypass only mode:
remove the jumper
between terminals 4
and 5
Check
the position
of the switch
(should be to
left)
J2
J1
J15
fault reporting
output
heat trace
cable output
54 321
54 321
4321
4321
Single-phase board Reversible models
20/28/35/50 H
Single-phase board Cooling only models
20/28/35
Three-phase board
35/50/65/75
POWER SUPPLY
1 x 230 V / 50 Hz
EARTH
PHASE
NEUTRAL
POWER SUPPLY
1 x 230 V / 50 Hz
EARTH
PHASE
NEUTRAL
POWER SUPPLY
3 x 400 V / 50 Hz
T
R
S
N
EARTH
All the connection
diameters
are given in
the table on the
following page
CUSTOMER
WIRING
TERMINAL
BLOCK J1
Stage 2 Stage 3 Common Common
Stage 1 or boiler
(ouptuts: max. 5 A at 230 V)
54321
54321
(ouptuts: max. 5 A
at 230 V)
1 x 230 V / 50 Hz
Power supply
