7 - INSTALLATION

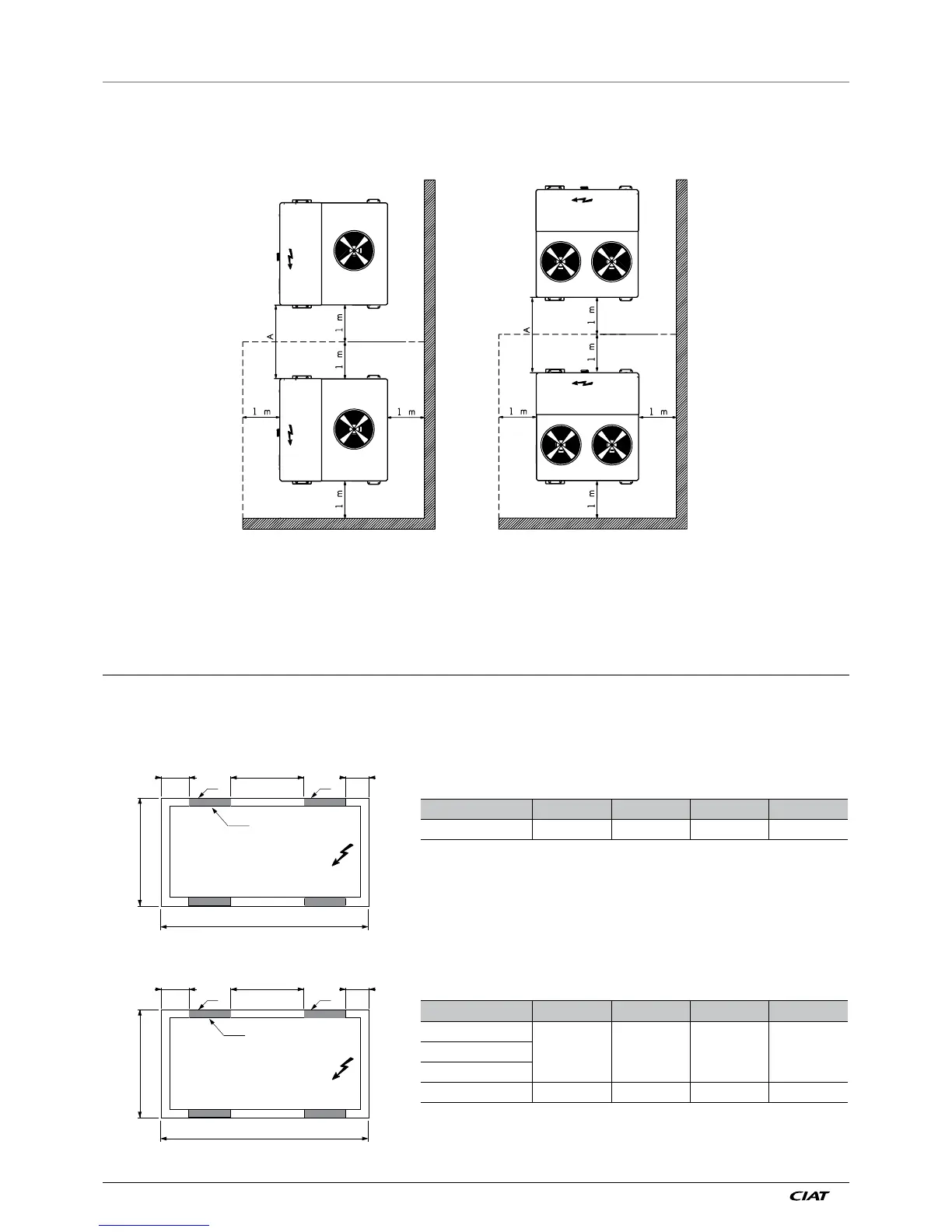

(Clearances to be maintained)
It is important for units to be installed with the necessary clearances:
so that air discharged by the condenser is not drawn in through the intake and recirculated.
î so that maintenance can be carried out on the unit.
100V to 300V 350V to 700V
2 units: A = 2 m
3 or more units: A = 3 m
For information on the dimensions, weight, anchorage points and centre of gravity, refer to the drawings provided with the unit.
8 - VIBRATION ISOLATORS (supplied as standard)
Anti-vibration mounts must be installed beneath the unit in the case of applications with extremely low vibrations.
The mounts must be placed at the locations illustrated below.
