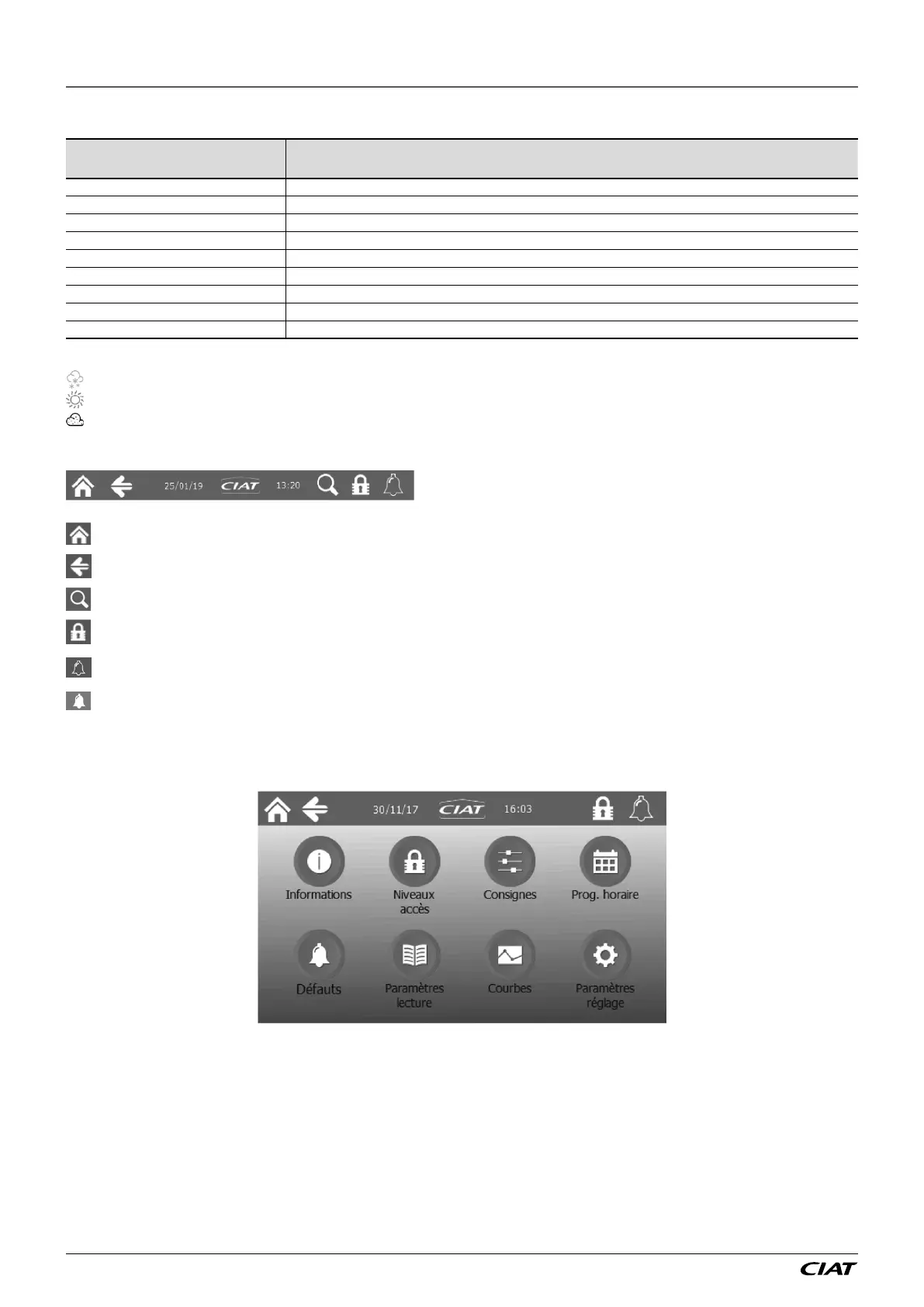

- Control active Indique Indicates the operating status
Operating status Description
Damper opening The isolation damper is in the process of opening
Ventilation start-up The ventilation is in the process of starting up
Ventilation only The control operates without the control components
Control active The control functions are active
Control limited Certain control functions are not authorised (E.g.: ow rate insufcient for the electric heater operation)
Fan delay The AHU is in the process of shutting down but the ventilation remains active to cool the electric heaters
Free cooling Free cooling is in progress
Outdoor temperature limit The outdoor temperature is too low for the unit to operate
DX unit defrosting The DX unit is in defrosting mode
- Current mode : symbol grey if operation requested but inactive, symbol coloured if operation requested and active
: Indicates a "Cooling" request
: Indicates a "Heating" request
: Indicates operation in terms of air quality
2.4.2 - Menu bar
Retour à l’écran d’accueil
Retour au niveau de menu supérieur
Recherche de paramètre
Choix du niveau d’accès
Pas de défaut actif.
Présence d’un défaut (Dans ce cas la barre de LED est éclairée, en rouge si défaut danger, en jaune si défaut maintenance).
Lien vers la liste des défauts actifs.
2.4.3 - Menus
Main menu
2 - THE CONTROL PLC
FLOWAY ACCESS EN-10
