CIAT FLOWAY ACCESS User Manual

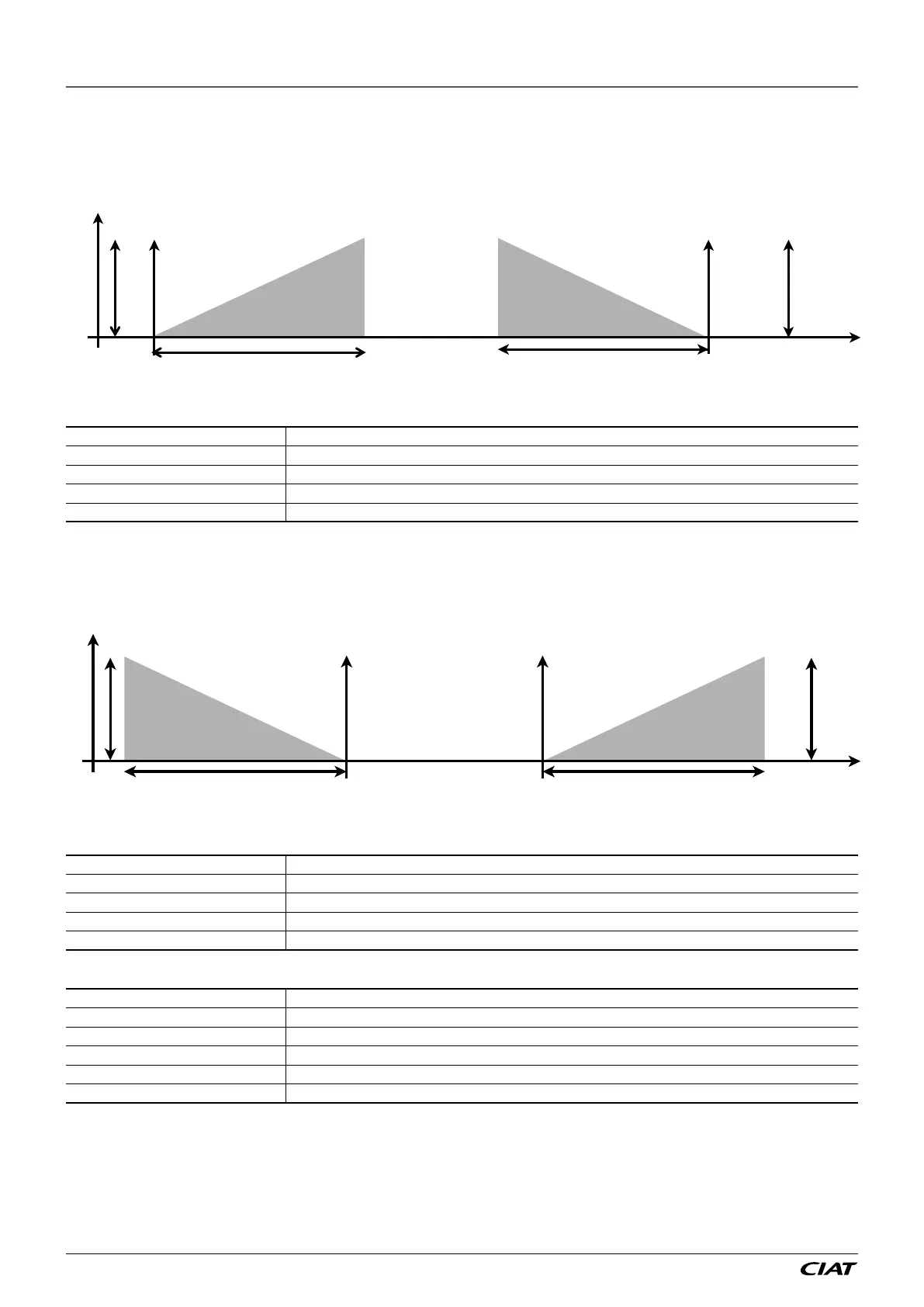

Supply air limitation
When control is being applied to the return air or room air, the supply air temperature can be limited. This limitation is used to avoid
blowing air at too high a temperature in heating mode or too cold a temperature in cooling mode. This limitation is activated by
parameter P156.
100%
0%
Cooling request
limitation
Supply air band P232
Integral time P233
Low
threshold
fault
P240
High threshold
fault
P241
Supply air low
limit setpoint
P230
Supply air band P232
Integral time P233
Supply air
temperature
Heating request
limitation
Supply air upper
limit setpoint
P231
156 Supply air limitation = With or Without
230 Supply air temperature low limit setpoint
231 Supply air temperature upper limit setpoint
232 Supply air temperature limit proportional band
233 Supply air temperature limit (I) integral time
Supply air compensation
When control is being applied to the return air or room air, the supply air temperature can be compensated. This compensation is
used avoid blowing air at too cold or too high a temperature when the control is in deadband mode (no heating or cooling requirement
calculated). This compensation is activated by parameter P157.
100%
0%
Heating compensation (%)
Compensation band P235
Low
threshold
fault P240
High
threshold
fault P241
Supply air
compensation
lower limit P234
Supply air
compensation
upper limit P236
Supply air temperature
Cooling compensation (%)
Compensation band P237
157 Supply air compensation in deadband = With or Without
234 Low supply air temperature compensation setpoint in deadband
235 Low supply air temperature compensation proportional band in deadband
236 High supply air temperature compensation setpoint in deadband
237 High supply air temperature compensation proportional band in deadband
The temperature upper and lower thresholds (P240 to P245) are used to trigger a fault if the temperature is outside of these limits.
240 Supply air temperature low limit threshold
241 Supply air temperature upper limit threshold
242 Return air temperature low limit threshold
243 Return air temperature upper limit threshold
244 Room temperature low limit threshold
245 Room temperature upper limit threshold
3 - FEATURES
FLOWAY ACCESS EN-16
