Local Management Port LEDs
The local management port has two LEDs associated with it. They are located
at the top of the port and indicate port status and speed. See Figure 5-6 and
Figure 5-7.

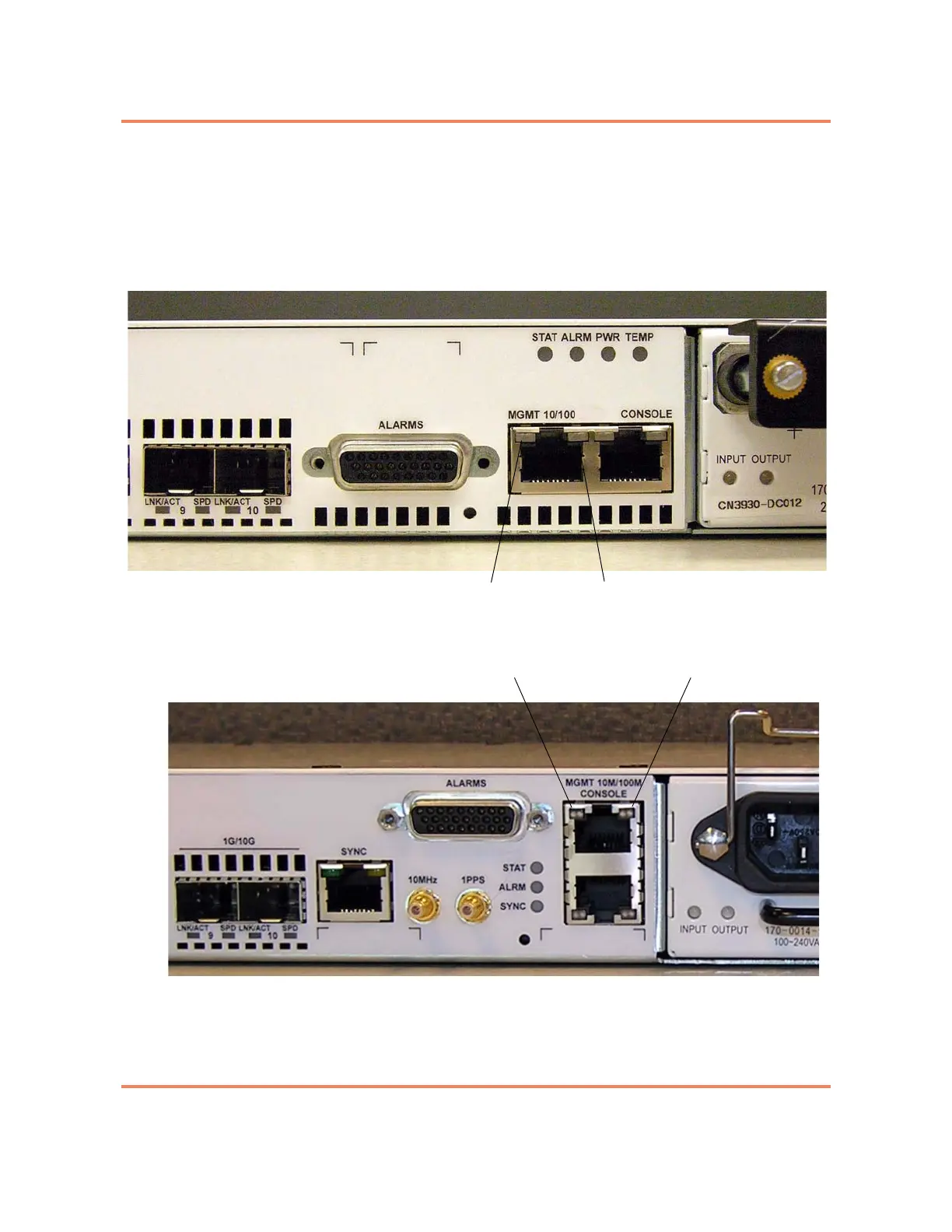

Figure 5-6
MGMT LEDs on 3930 Standard and 3930 Sync systems
Figure 5-7
MGMT LEDs on a 3930 Sync + External Timing system
