Ciena 3930 Series - Installing the 23 Frame Mount Bracket - 1 RU

8-10 Mounting Options
3930 Service Delivery Switch Hardware Installation and Start-up Manual
009-3223-001 Standard Revision E
Copyright
©
2012-2014 Ciena
®
Corporation January 2014
Procedure 8-3
Installing the 23” Frame Mount Bracket - 1 RU
Step Action
1 Align the holes of the mounting bracket with the holes on the left side of the
unit (see Figure 8-6) as follows:
• 3930, 3932, 3940, 3960, 5142 and 5160 — install screws in holes 5
and 6.
• 3920 — install screws in holes 1 and 2.

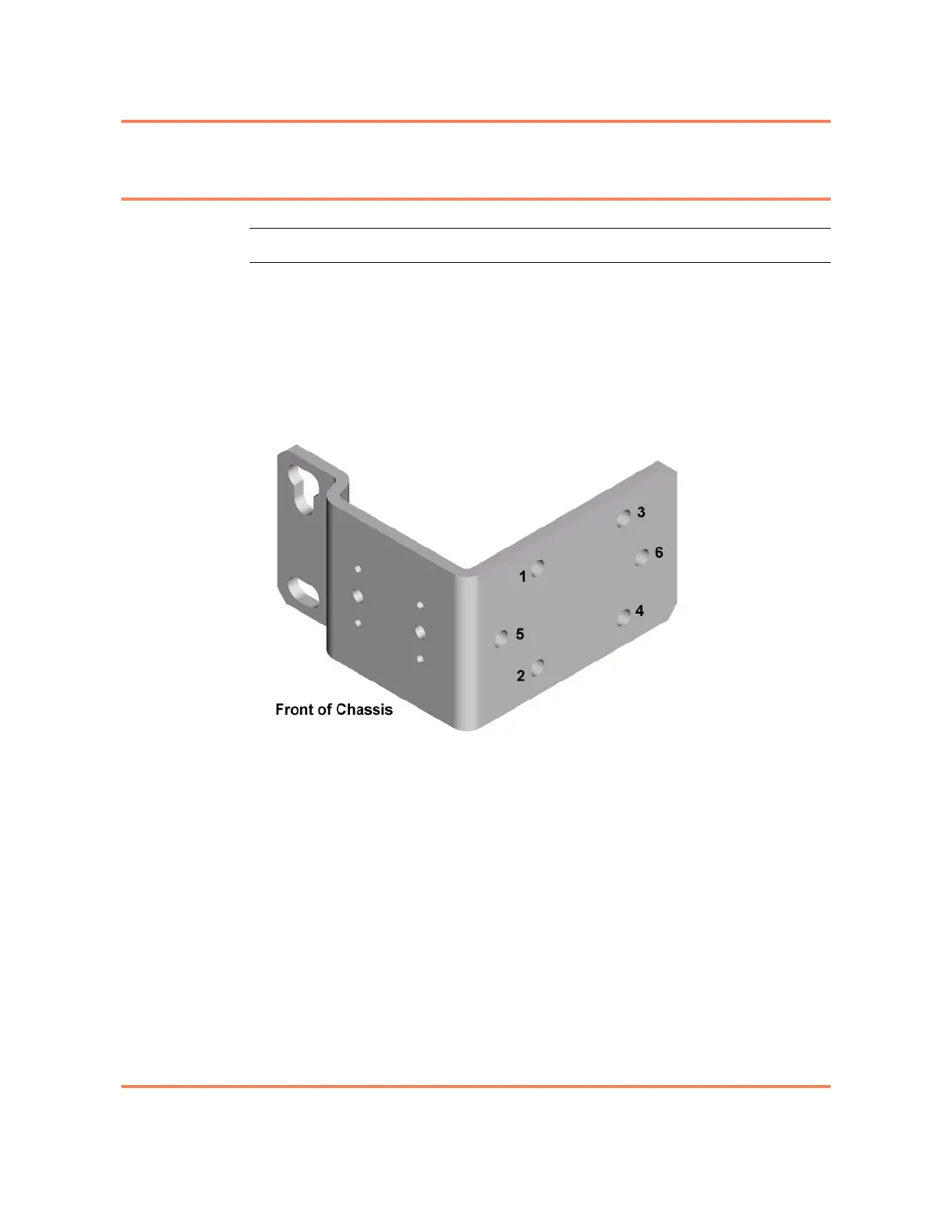

Figure 8-6
Back side of left bracket
2 Align the holes of the mounting bracket with the holes on the right side of the
unit (see Figure 8-7 on page 8-11) as follows:
• 3930, 3932, 3940, 3960, 5142 and 5160 — install screws in holes 5
and 6.
• 3920 — install screws in holes 1 and 2.
